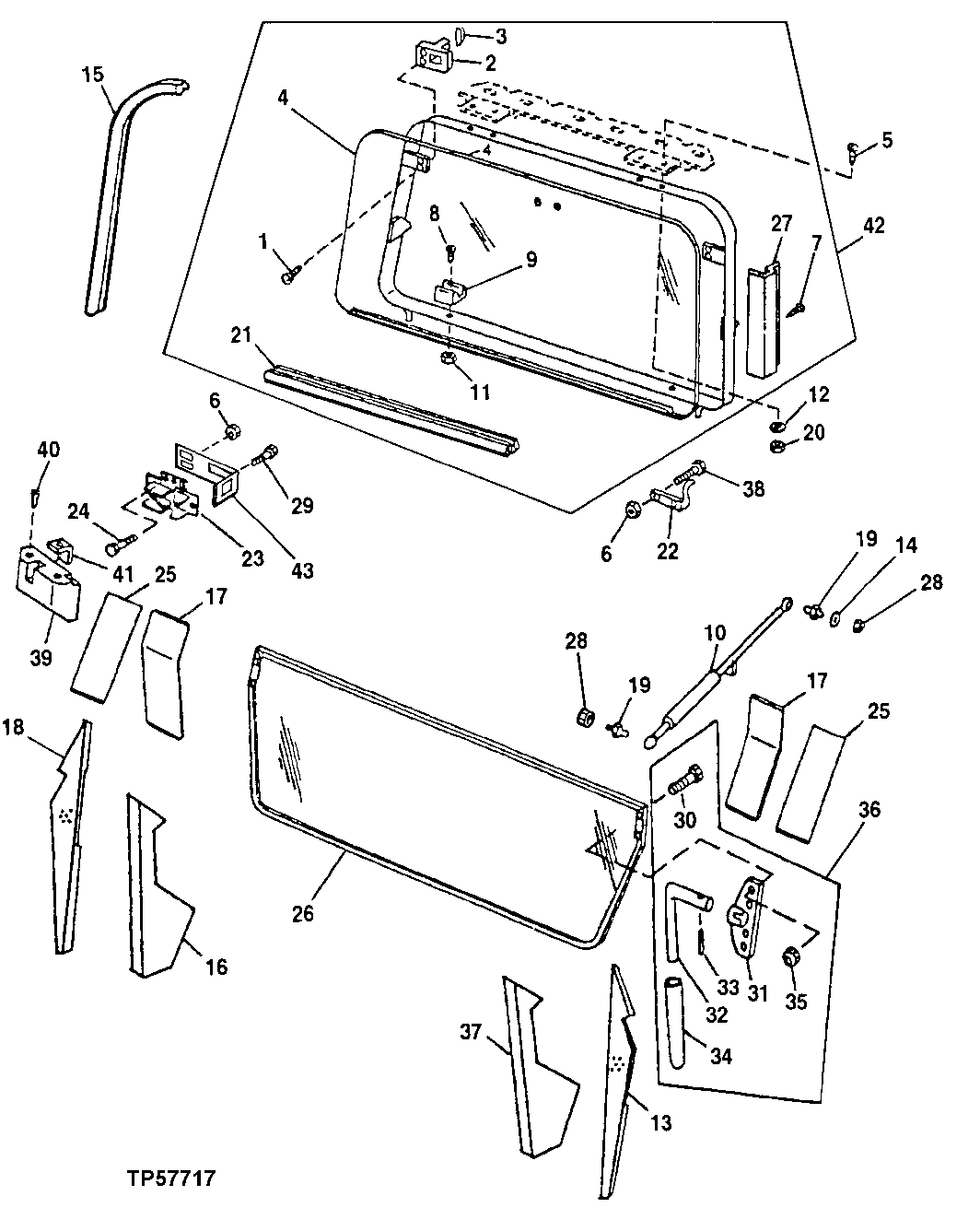

REAR WINDOW (SERIAL NO. 735416- ) [02E06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37H47	4	SCREW	-
2	T106364	2	STRIKER	-
3	T113036	2	PAD	-
4	T106281	1	WINDOWPANE	(SUB AT118800)
5	19M7833	4	Screw	M6 X 35
6	14M7303	8	Flange Nut	M6
7	37M7072	8	Screw	-
8	21H1376	2	SCREW	0.164" X 1-1/4"
9	T106293	2	CHANNEL	-
10	AT75361	2	GAS OPERATED CYLINDER	(USE IF AVAILABLE)
10	AT164828	2	CYLINDER	(SUB FOR AT145132)
11	M63431	2	Lock Nut	-
12	24H1286	4	Washer	9/32" X 1/2" X 1/16"
13	AT79174	1	PAD	-
14	24H1136	2	Washer	11/32" X 11/16" X 0.065"
15	AT75842	1	ISOLATOR	-
16	AT79173	1	PAD	-
17	T113466	2	WINDOWPANE	(SUB FOR T76882)
18	AT79172	1	PAD	-
19	T142651	4	Ball Stud	(SUB FOR (4) T73834)
20	14M7165	4	Lock Nut	M6
21	T122081	1	ISOLATOR	(SUB FOR T82491)
22	T77114	2	ROD	-
23	AT72605	1	LATCH	L.H.
23	AT72604	1	LATCH	R.H.
24	19M7862	4	Screw	M6 X 20
24	21M7267	4	Screw	M6 X 20
25	-	1	Part 28	(MAKE FROM AT66779 BULK MATERIAL, CUT TO LENGTH)
26	AT114154	1	WINDOW	(TUV)
26	AT85104	1	WINDOW	-
27	T121906	2	CHANNEL	R.H. (SUB FOR T113418 AND T118842)
27	T121906	2	CHANNEL	L.H. (SUB FOR T113418 AND T118843)
27	T121906	2	CHANNEL	R.H. AND L.H.
28	A22698	4	Nut	-
29	19M7867	2	Screw	M8 X 25
30	21H1470	4	Screw	0.164" X 3/4", FLAT HEAD MACHINE
31	AT85110	2	LATCH	-
32	T82843	2	PIN FASTENER	-
33	34H387	2	Spring Pin	3/16" X 3/4"
34	N157204	2	Grip	-
35	M63431	4	Lock Nut	-
36	AT85105	1	KIT	(INCLUDES SET OF TWO LATCHES AND HARDWARE)
37	AT79175	1	PAD	-
38	19M7560	4	Cap Screw	M6 X 16
39	T77331	1	COVER	(SUB T118880) L.H.
39	T118880	1	COVER	L.H.
39	T77330	1	COVER	(SUB T118881) R.H.
39	T118881	1	COVER	R.H.
40	T77832	4	Self-Locking Screw	-
41	AT75921	4	CLIP	-
41	AT114680	1	CLIP	-
42	AT107816	1	WINDOW	(SUB AT118800)
42	AT118800	1	WINDOW	-
43	T82844	1	ANGLE	-
