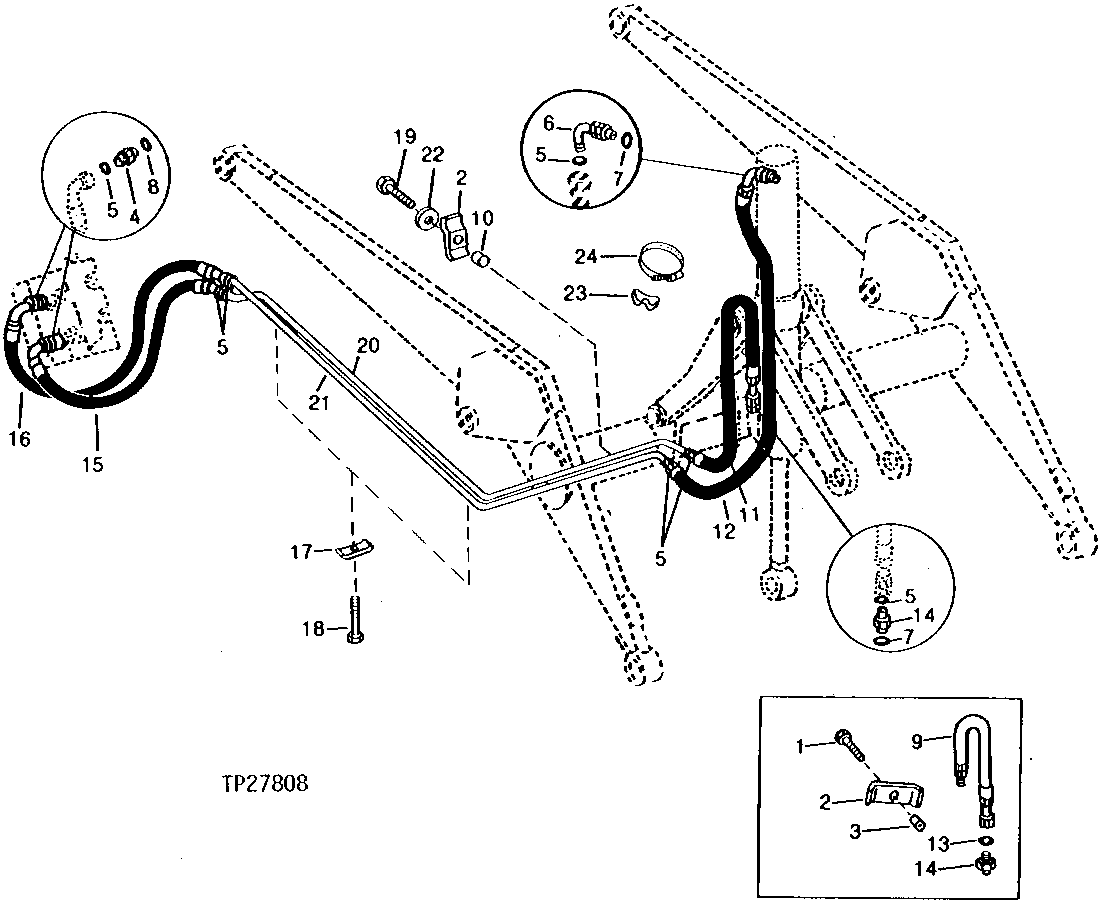

LOADER BUCKET CYLINDER HYDRAULICS [02J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7786	1	Screw	M10 X 30
2	T105720	1	Clamp	-
3	28H1521	1	Spacer	0.493" X 0.675" X 9/16"
4	38H1174	2	Adapter Fitting	-
5	T77857	8	O-Ring	-
6	38H1013	1	Elbow Fitting	-
7	U12547	2	O-Ring	-
8	R26906	2	O-Ring	-
9	AT145676	1	Hydraulic Hose	(SUB FOR AT101081 AND AT124389 OR AT135718) (ALSO ORDER C16054, 38H1175 AND T105774)
10	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
11	AT145676	1	Hydraulic Hose	13/16" X 1 326 MM (52-1/4") X 13/16", (SUB FOR AT101659, AT124389 AND AT113903 OR AT135718) (ALSO ORDER C16054 AND T105774 AND 38H1175)
12	AT145676	1	Hydraulic Hose	13/16" X 1 326 MM (52-1/4") X 13/16", (SUB FOR AT101660, AT124389 AND AT113904 OR AT135718) (ALSO ORDER C16054 AND T105774 AND 38H1175)
13	T77932	1	O-Ring	-
14	38H1329	1	Adapter Fitting	-
14	38H1175	1	Adapter Fitting	-
15	AT135719	1	Hydraulic Hose	13/16" X 1 015 MM (40") X 13/16", (SUB FOR AT100651)
16	AT135717	1	Hydraulic Hose	13/16" X 1 100 MM (43-1/4") X 13/16", (SUB FOR AT100652)
17	U10516	3	Hose Clamp	-
18	19H2038	2	Cap Screw	3/8" X 1/2"
19	19H3239	1	Cap Screw	3/8" X 1-1/4"
20	AT101658	1	OIL LINE	-
21	AT101657	1	OIL LINE	-
22	24H1305	1	Washer	13/32" X 13/16" X 0.065"
23	T105774	1	Guide	-
24	C16054	1	Clamp	-

LOADER BUCKET CYLINDER HYDRAULICS [02J09]
