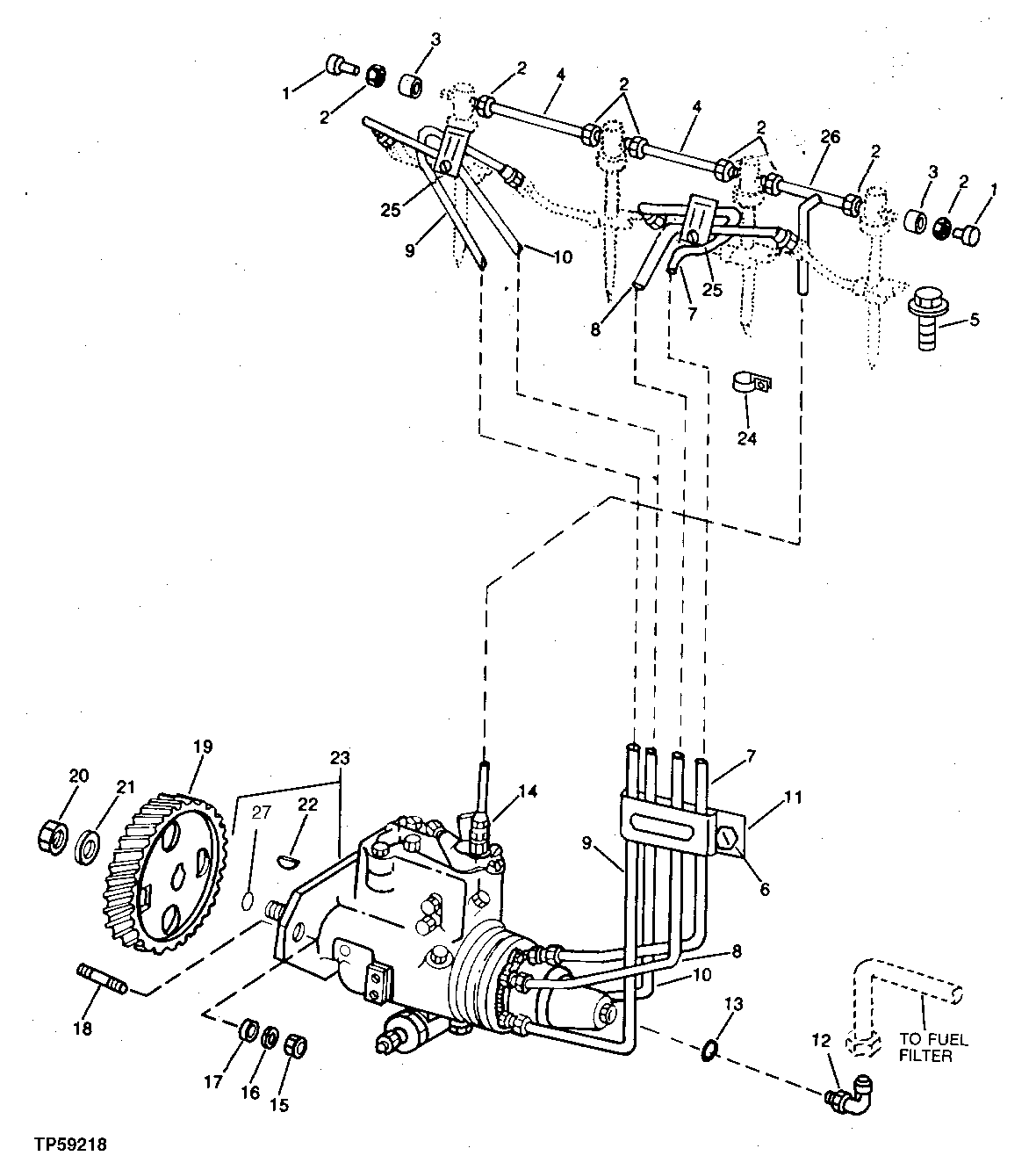

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. 300000- ) [01G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	16H658	2	Rivet	1/4" X 5/8"
2	R51937	8	Tube Nut	-
3	R51936	8	Sealing Washer	-
4	R66090	2	Tube	-
6	R60745	4	SPACER	(K)
7	RE20215	1	Fuel Line	NO. 3
7	RE43286	1	Fuel Line	NO. 3
8	RE20216	1	Fuel Line	NO. 4
8	RE43287	1	Fuel Line	NO. 4
9	RE20214	1	Fuel Line	NO. 2
9	RE43285	1	Fuel Line	NO. 2
10	RE20213	1	Fuel Line	NO. 1
10	RE43284	1	Fuel Line	NO. 1
11	RE19799	1	Clamp	-
11	19M7300	1	Cap Screw	M6 X 10
12	RE56322	1	Tee Fitting	(SUB FOR AT32333)
13	R26286	1	O-Ring	-
14	R35352	1	Fitting	-
15	14H785	3	Nut	5/16"
16	12H303	3	Lock Washer	5/16"
17	T27860	3	Washer	-
18	T23442	3	Stud	-
19	R84663	1	GEAR	(48-TEETH)
19	R116339	1	Gear	(48 TEETH)
20	R48599	1	NUT	-
21	R132874	1	Washer	(SUB FOR R48600)
22	26H10	1	Shaft Key	5/32" X 5/8"
23	SE500698	1	Fuel Injection Pump Reman	(REMAN FOR RE57111) PKG 1
23	RE40500	1	Fuel Injection Pump	(A) (ALSO ORDER R48599 AND R132874) (SUB SE500579) (4039DT001) (SUB FOR RE21758) (STANADYNE NO. DB2435-4794) (REMANUFACTURED)
23	RE57110	1	Fuel Injection Pump	(A) (STANADYNE NO. DB2435-4794) (ALSO ORDER R48599 AND R132874)
23	RE40545	1	FUEL INJECTION PUMP	(A) (STANADYNE NO.) (ALSO ORDER R48599 AND R48600)
23	RE57111	1	Fuel Injection Pump	(A) (STANADYNE NO.) (ALSO ORDER R48599 AND R48600)
23	SE500580	1	FUEL INJECTION PUMP	(REMAN FOR RE40545) PKG 1
23	SE500579	1	Fuel Injection Pump Reman	(REMAN FOR RE40500) PKG 1
24	T29969	1	Clamp	-
25	RE19797	2	Clamp	-
25	19M7300	2	Cap Screw	M6 X 10
26	AR89852	1	Fuel Line	LEAK-OFF
27	T16318	1	O-Ring	-
5A	R34760	4	CLAMP	-
5B	R101201	4	Cap Screw	-

FUEL INJECTION SYSTEM (ENGINE SERIAL NO. 300000- ) [01G01]
