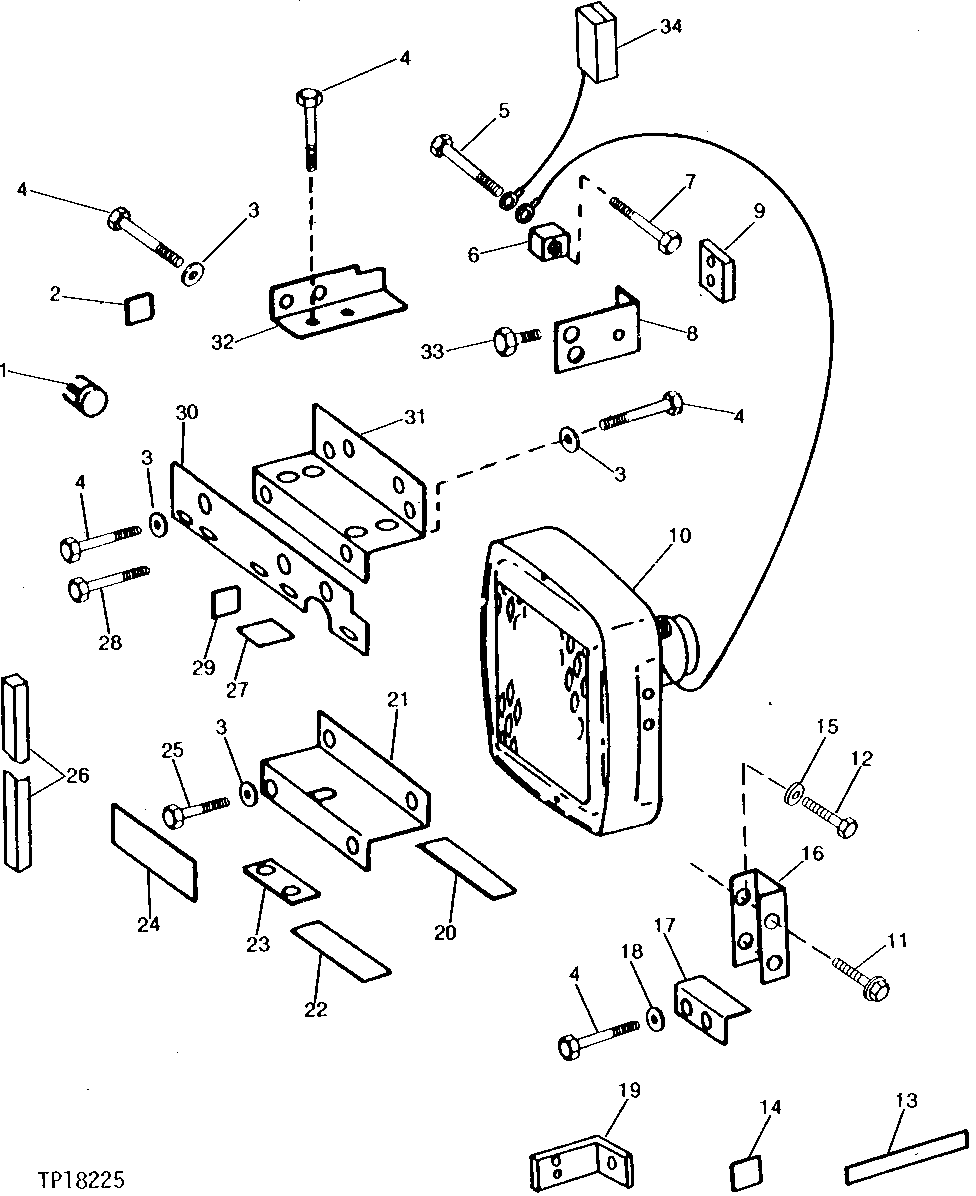

CAB STANDARD HEATER MOUNTING BRACKETS [02G01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T13911	2	PLUG	-
2	T69976	2	ISOLATOR	-
3	24H1821	21	Washer	9/32" X 47/64" X 1/16"
4	19M6614	15	Cap Screw	M6 X 12
5	37H20	1	SCREW	-
5	12H295	1	Lock Washer	0.190"
6	T72568	1	BAR	-
7	37H47	1	SCREW	-
8	T71137	1	ANGLE	-
9	T78288	1	SPACER	WITH PRESSURIZER
10	AT140290	1	HEATER	(20,000 BTU) (SUB FOR AT27086 OR AT114647)
11	19M7866	2	Screw	M8 X 20
12	19H1919	4	Cap Screw	1/4" X 5/8"
13	-	1	Part 14	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)
14	T69976	2	ISOLATOR	-
15	12H302	4	Lock Washer	1/4"
16	AT101993	1	BRACKET	(WITHOUT PRESSURIZER)
17	AT68103	1	ANGLE	-
18	24H1136	3	Washer	11/32" X 11/16" X 0.065"
19	T78289	1	BRACKET	WITH PRESSURIZER
20	-	1	Part 21	(MAKE FROM T71733 BULK MATERIAL, CUT TO LENGTH)
21	T113212	1	SHIELD	(SUB FOR T71145)
22	-	1	Part 23	(MAKE FROM T59938 OR T63019 BULK MATERIAL, CUT TO LENGTH)
23	T120399	1	ISOLATOR	(SUB FOR T71146)
24	-	1	Part 25	(MAKE FROM T59937 BULK MATERIAL, CUT TO LENGTH)
25	19M7560	6	Cap Screw	M6 X 16
26	T78290	1	PAD	(WITH PRESSURIZER)
27	-	1	Part 28	(MAKE FROM T70307 BULK MATERIAL, CUT TO LENGTH)
28	37H29	3	Screw	5/16" X 5/8"
29	T71144	1	ISOLATOR	-
30	AT113872	1	PLATE	(SUB FOR AT68105)
31	AT68106	1	SHIELD	-
32	AT68104	1	BRACKET	-
33	19M8008	2	Cap Screw	M8 X 35, (SUB FOR 19M7298) (WITH PRESSURIZER)
33	19M7162	2	Cap Screw	M8 X 16, (WITHOUT PRESSURIZER)
34	-	1	Part 36	(MAKE FROM AR84006 KIT)
