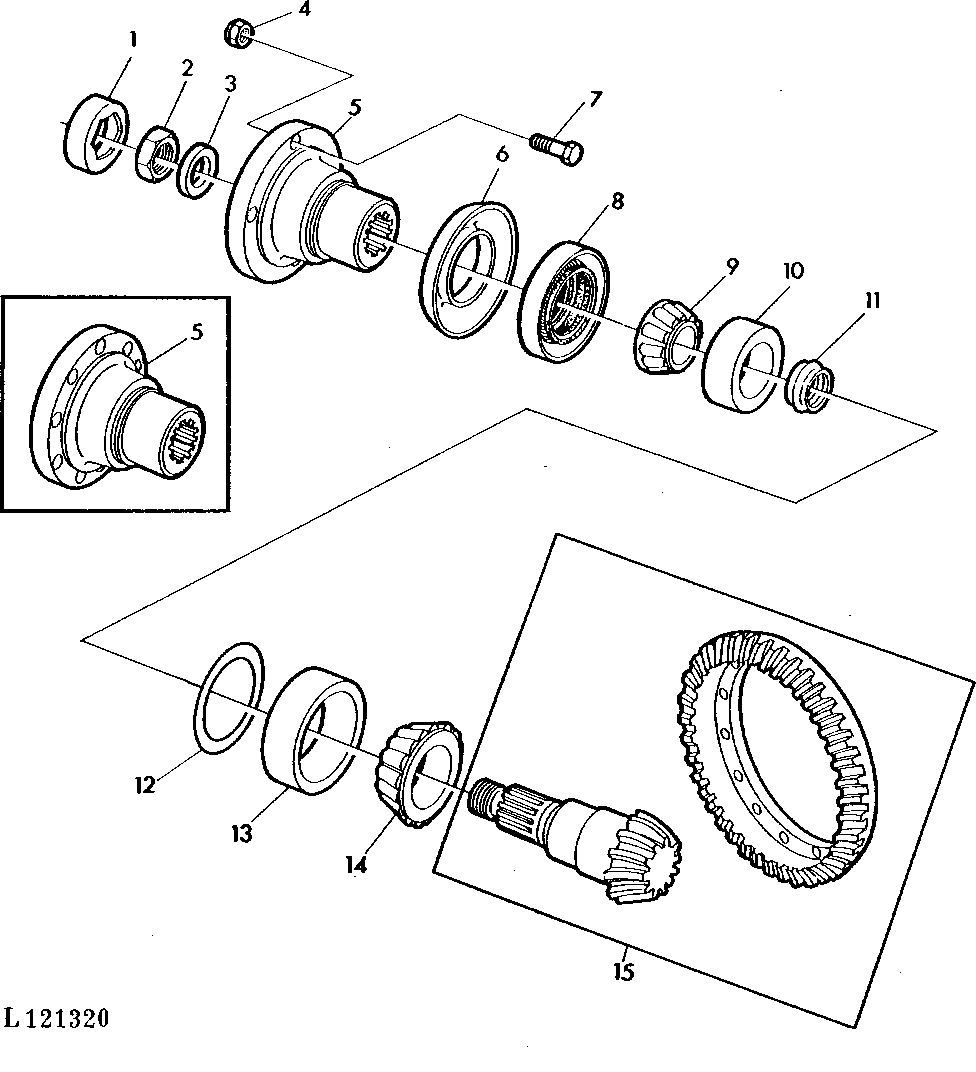

FRONT WHEEL DRIVE - ELEMENTS (INPUT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L55604	1	Lock Plate	-
2	L55605	1	Nut	-
3	L35714	1	Washer	-
4	14M7308	8	Lock Nut	M10
4	14M7313	4	Lock Nut	M12
5	L41102	1	Flange	-
5	L63619	1	Flange	-
6	L39992	1	Guard	-
7	L35718	8	Cap Screw	M10 X 1 X 28
7	L62902	4	Cap Screw	M12 X 35
8	AL32981	1	Seal	-
9	AR94761	1	Bearing Cone	(SUB FOR JD8947)
10	JD8257	1	Bearing Cup	-
11	L35712	1	Bushing	-
12	L100592	1	Washer	TK= 0.80MM (0.0315")
12	L100592	1	Washer	TK= 1.60MM (0.063"), SUB FOR L40994
12	L40993	1	Washer	TK= 1.55MM (0.061")
12	L40992	1	Washer	TK= 1.50MM (0.059")
12	L40995	1	Washer	TK= 0.90MM (0.035")
12	L40991	1	Washer	TK= 1.45MM (0.057")
12	L55607	1	Shim	TK= 1.40MM (0.055"), SUB FOR L40990
12	L40989	1	Washer	TK= 1.35MM (0.053")
12	L40988	1	Washer	TK= 1.30MM (0.051")
12	L40987	1	Washer	TK= 1.25MM (0.049")
12	L40986	1	Washer	TK= 1.20MM (0.047")
12	L40985	1	Washer	TK= 1.15MM (0.045")
12	L40984	1	Washer	TK= 1.1MM (0.043")
12	L40983	1	Washer	TK= 1.05MM (0.041")
12	L40982	1	Washer	TK= 1.00MM (0.039")
12	L40996	1	Washer	TK= 0.95MM (0.037")
12	L55610	1	Washer	TK= 0.85MM (0.033")
12	L55608	1	Shim	TK= 0.75MM (0.030")
12	L55607	1	Shim	TK= 0.70MM (0.028")
12	L55606	1	Shim	TK= 0.65MM (0.026")
13	JD8236	1	Bearing Cup	-
14	JD8901	1	Bearing Cone	-
15	AL55434	1	Kit	Z= 13/36

FRONT WHEEL DRIVE - ELEMENTS (INPUT)
