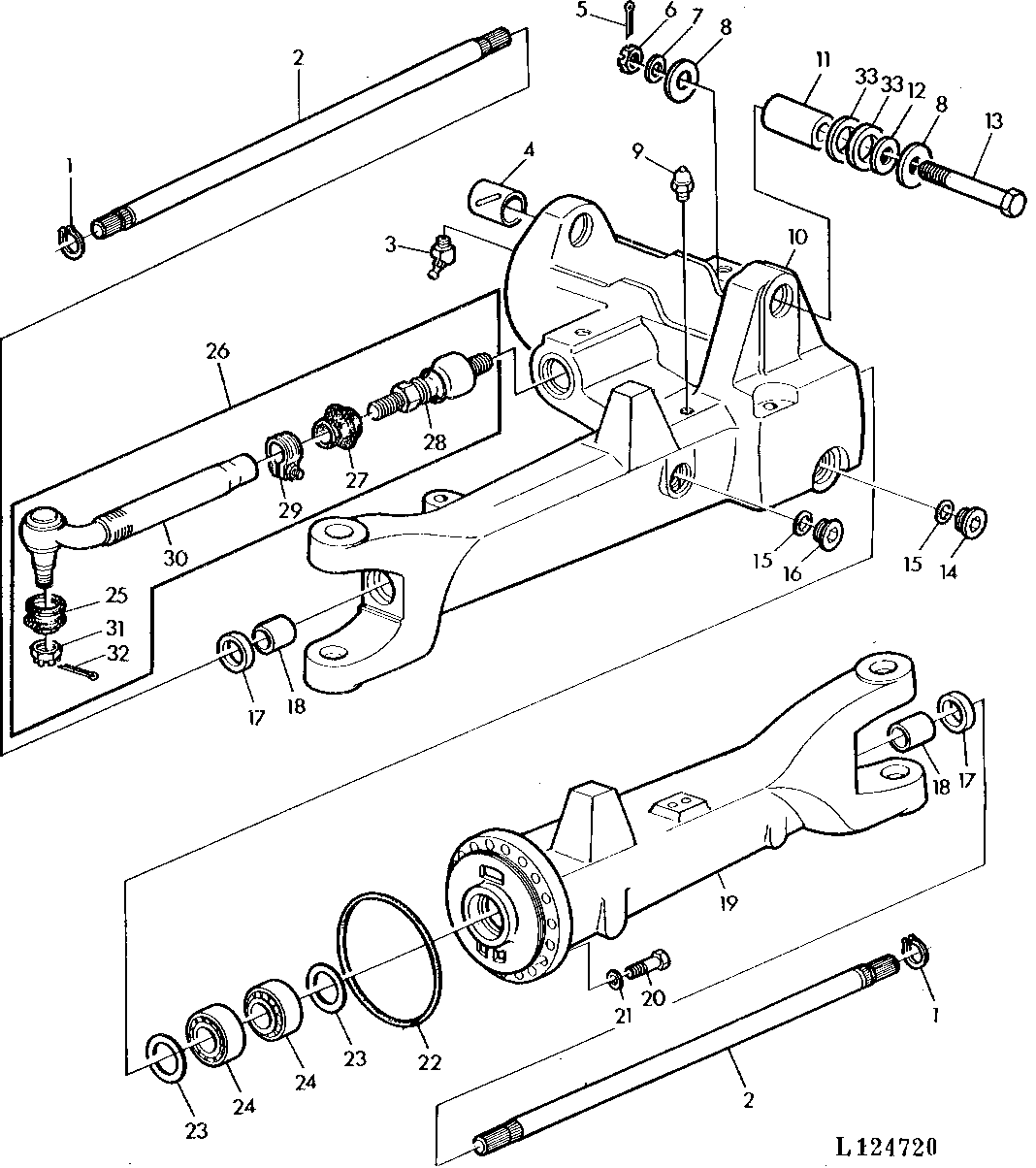

FRONT WHEEL DRIVE-AXLE BRIDGE / TIE ROD

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L40276	2	Snap Ring	-
2	L59431	2	Shaft	-
3	JD7847	1	Lubrication Fitting	-
4	L63510	1	Bushing	(SUB FOR L58229, L62838)
5	11H218	1	Cotter Pin	3/16" X 1-1/2"
6	14H1086	1	Nut	3/4"
7	T10510	1	Washer	-
8	L40770	2	Washer	-
9	AL32877	1	Vent	-
10	L57401	1	Housing	-
11	L40771	1	Piston Pin	-
12	T25921	1	SHIM	TK= 0.3MM (0.012")
12	L64763	1	Thrust Washer	TK= 0.6MM (0.024")
13	L64734	1	Cap Screw	3/4" X 16", (SUB FOR T29210, L59919)
14	L40037	1	Pipe Plug	M36
15	L55580	2	O-Ring	-
16	15M7030	1	Pipe Plug	M36
17	AL61448	2	Seal	-
18	L60147	2	Bushing	-
19	L57402	1	Housing	-
20	19M8295	16	Cap Screw	M16 X 55
21	L40274	16	Washer	-
22	L40273	1	O-Ring	-
23	L41001	1	Shim	TK= 0.50MM (0.020")
23	L41000	1	Shim	TK= 0.60MM (0.024")
23	L112211	1	Washer	TK= 0.65MM (0.026"), (SUB FOR L55583)
23	L112212	1	Washer	TK= 0.70MM (0.028"), (SUB FOR L55584)
23	L112213	1	Washer	TK= 0.75MM (0.030"), (SUB FOR L55585)
23	L112198	1	Washer	TK= 2.00MM (0.079"), (SUB FOR L40236)
23	L40999	1	Washer	TK= 0.80MM (0.031")
23	L112214	1	Washer	TK= 0.85MM (0.033"), (SUB FOR L55586)
23	L112215	1	Washer	TK= 0.90MM (0.035"), (SUB FOR L55587)
23	L112216	1	Washer	TK= 0.95MM (0.037"), (SUB FOR L55588)
23	L40998	1	Washer	TK= 1.00MM (0.039")
23	L112217	1	Washer	TK= 1.10MM (0.043"), (SUB FOR L55589)
23	L112218	1	Washer	TK= 1.15MM (0.045"), (SUB FOR L55590)
23	L40997	1	Washer	TK= 1.20MM (0.047"), NLA; ORDER L40998 AND L41004
23	L112219	1	Washer	TK= 1.25MM (0.049"), (SUB FOR L55591)
23	L112220	1	Washer	TK= 1.30MM (0.051"), (SUB FOR L55592)
23	L112222	1	Washer	TK= 1.05MM
23	L41003	1	Shim	TK= 0.30MM (0.012")
23	L112210	1	Washer	TK= 1.40MM (0.055"), NLA, ORDER L40998 AND L41002, (SUB FOR L40248)
23	L112209	1	Washer	TK= 1.45MM (0.057"), NLA, ORDER L40998 AND L101689, (SUB FOR L40247)
23	L112208	1	Washer	TK= 1.50MM (0.059"), NLA, OREDR L40998 AND L41001, (SUB FOR L40246)
23	L112207	1	Washer	TK= 1.55MM (0.061"), NLA, ORDER L40998 AND L101690, (SUB FOR L40245)
23	L112221	1	Washer	TK= 1.35MM (0.053"), (SUB FOR L55593)
23	L112204	1	Washer	TK= 1.70MM (0.067"), NLA, ORDER L40998 AND L112212, (SUB FOR L40242)
23	L112203	1	Washer	TK= 1.75MM (0.069"), NLA, ORDER L40998 AND L112213, (SUB FOR L40241)
23	L112202	1	Washer	TK= 1.80MM (0.071"), NLA, ORDER L40998 AND L40999, (SUB FOR L40240)
23	L112200	1	Washer	TK= 1.90MM (0.075"), NLA, ORDER L40998 AND L112215, (SUB FOR L40238)
23	L112199	1	Washer	TK= 1.95MM (0.077"), NLA, ORDER L40998 AND L112216, (SUB FOR L40237)
23	L112206	1	Washer	TK= 1.60MM (0.063"), NLA, ORDER L40998 AND L41000, (SUB FOR L40244)
23	L112205	1	Washer	TK= 1.65MM (0.065"), NLA, ORDER L40998 AND L112211, (SUB FOR L40243)
23	L41005	1	Shim	TK= 0.10MM (0.004")
23	L41004	1	Shim	TK= 0.20MM (0.008")
23	L41002	1	Shim	TK= 0.40MM (0.016")
23	L112201	1	Washer	TK= 1.85MM (0.073"), NLA, ORDER L40998 AND L112214, (SUB FOR L40239)
24	JD37087	2	Tapered Roller Bearing	Z= 13/36
25	AL168710	1	Boot	SUB FOR L40806
26	AL55432	1	Tie Rod Assembly	LH (ORD AL168701, AL168703)
26	AL55433	1	Rod	RH (ORD AL168702, AL168703)
27	AL177055	1	Boot	SUB FOR AL63803
28	AL168703	1	Tie Rod End	INCL KEY 27 (SUB FOR AL68253)
29	AL68256	1	Clamp	-
30	AL168701	1	Ball Joint	LH (SUB FOR AL68254)
30	AL168702	1	Ball Joint	RH (SUB FOR AL68255)
31	14M5409	1	Nut	M20
32	11M7024	1	Cotter Pin	4 X 36 mm
33	Z45055	2	Washer	-

FRONT WHEEL DRIVE-AXLE BRIDGE / TIE ROD
