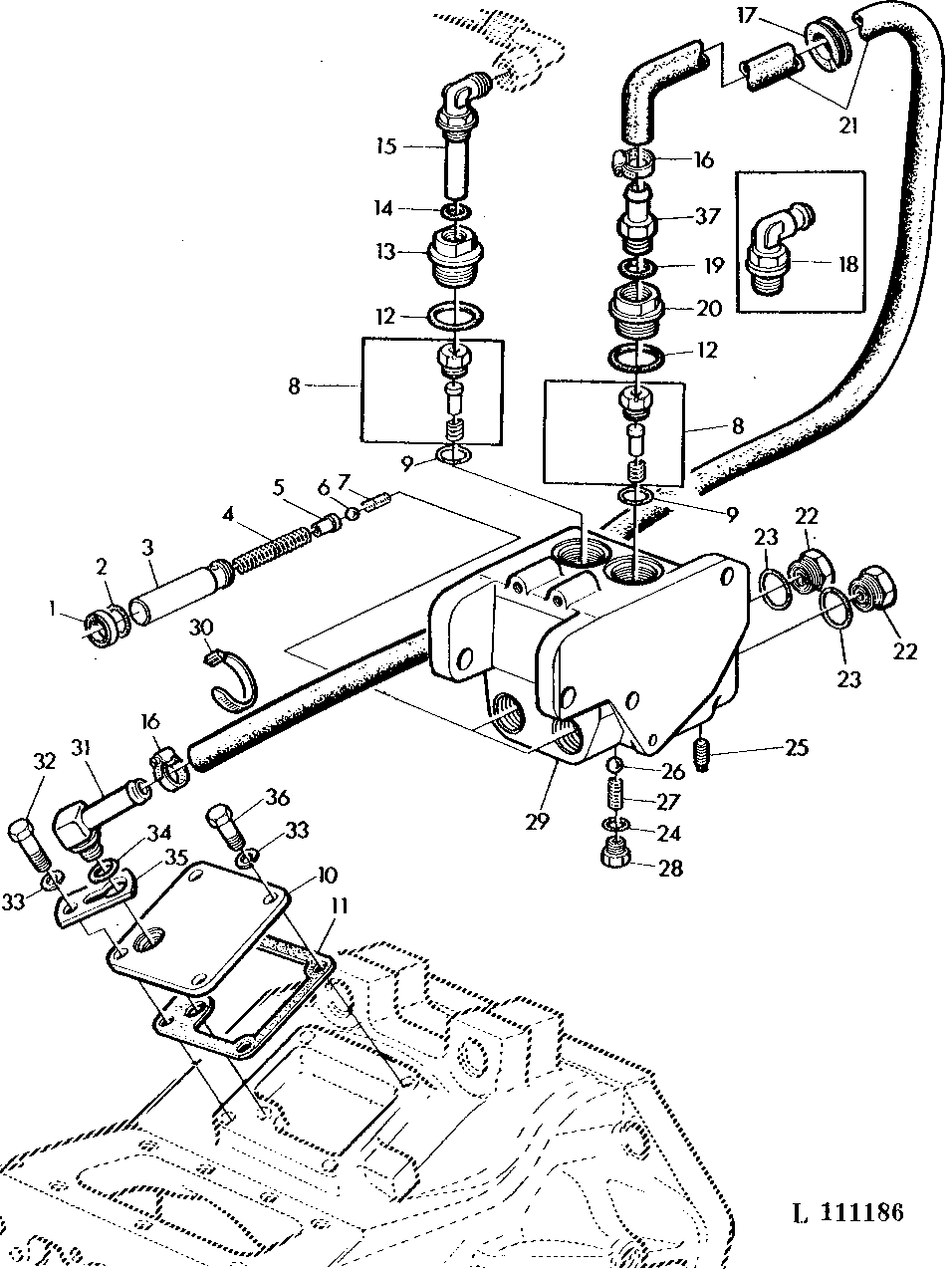

RETURN LINE STEERING UNIT / BRAKE VALVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T22101	2	Seal	-
2	R495R	2	O-Ring	-
3	L64469	2	Piston	(FOR AL69167)
3	L64361	2	Piston	(FOR AL33145) (SUB FOR L34041)
4	L62883	2	Compression Spring	(SUB FOR R50112)
5	T21815	2	RETAINER	-
6	400R	2	Ball	-
7	L63429	2	Compression Spring	(SUB FOR T21814)
8	AL69179	2	VALVE	(SUB FOR AL23836, AL67574)
9	R26906	2	O-Ring	-
10	L39896	1	Plate	-
11	L61961	1	Gasket	(SUB FOR L39898)
12	R29936	2	O-Ring	-
13	L39335	1	Adapter Fitting	-
14	R26448	1	O-Ring	-
15	AL37361	1	Elbow Fitting	-
16	AL64588	2	Clamp	(SUB FOR AR21837)
17	L39888	1	Grommet	-
18	AL24689	1	Elbow Fitting	-
19	R26906	1	O-Ring	-
20	L40342	1	Adapter Fitting	NLA
21	L40343	1	Hose	(ORDER L61337, R39171)
21	L61337	1	Hose	(SUB FOR L56560 APPL)
22	R50110	2	FITTING	(FOR AL33145)
22	L41064	2	Fitting	(FOR AL69167)
23	U12547	2	O-Ring	(FOR AL33145) (SUB FOR F3171R)
23	U17409	2	O-Ring	(FOR AL69167)
24	R26375	2	O-Ring	-
25	15H638	1	Pipe Plug	1/8"
26	D2361R	2	Ball	1/2"
27	T21816	2	Compression Spring	-
28	R39112	2	Fitting	3/4"
29	AL33145	1	Housing	(MARKED L37424) (ORDER AL69167, (2) L41064,(2) U17409)
29	AL69167	1	Housing	(MARKED L64463)
30	R44302	2	Tie Band	-
31	AL38296	1	Oil Line	-
32	19H2552	1	CAP SCREW	3/8" X 1-1/8"
33	12H304	4	Lock Washer	3/8"
34	R51203	1	O-Ring	-
35	L39897	1	Strap	-
36	19H1936	3	Cap Screw	3/8" X 3/4"
37	R39171	1	Hose Fitting	-

RETURN LINE STEERING UNIT / BRAKE VALVE
