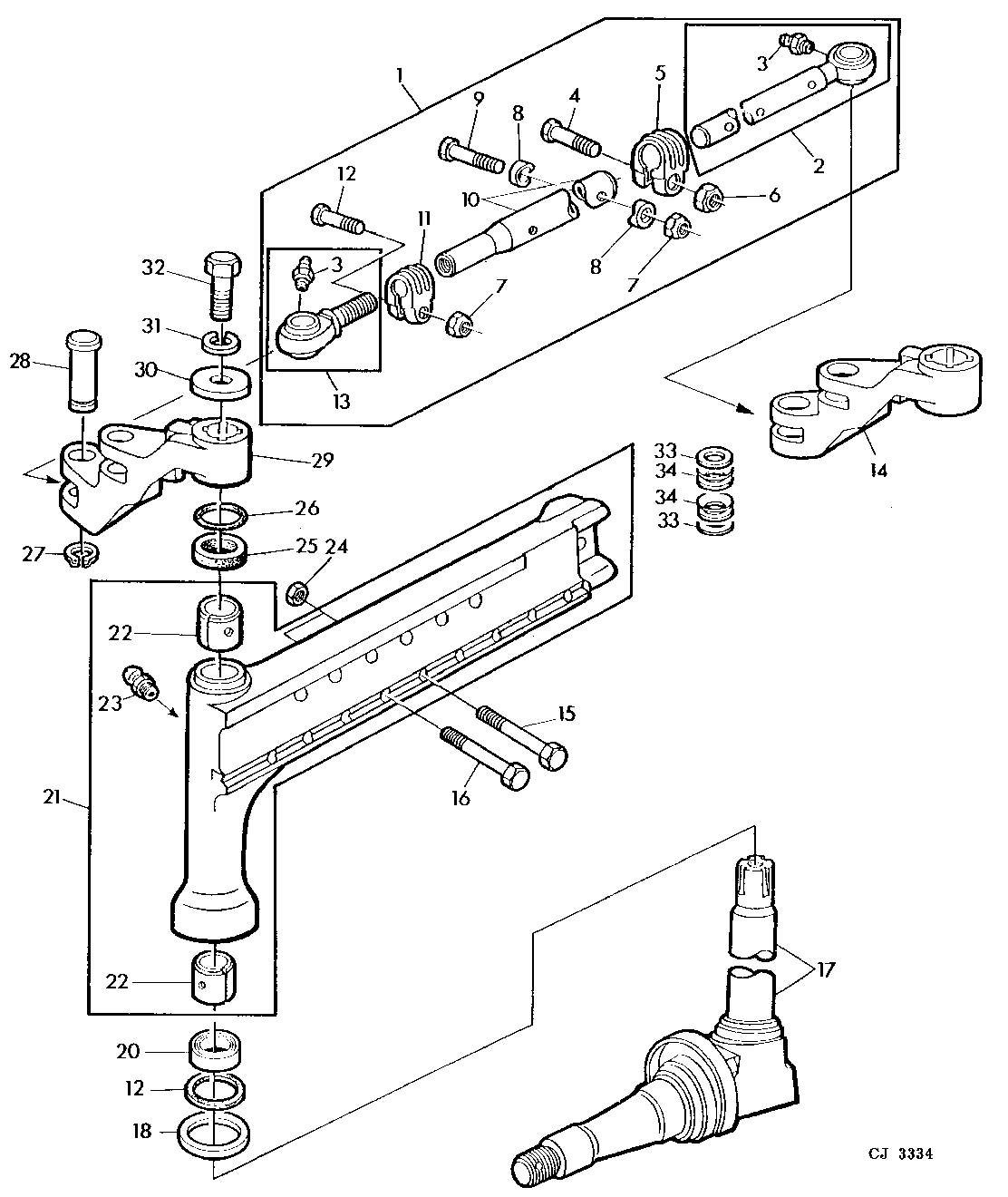

FRONT AXLE KNEE/SPINDLE KNUCKLE/TIE ROD [02D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL68723	1	Tie Rod Assembly	(SUB FOR AL36517)
1	AL31242	1	TIE ROD	(ORD (1) AL36517, (4) L39305, (4) L40301)
2	AL37194	1	TIE ROD END	-
2	AL31498	1	Tie Rod Assembly	(ORD (1) AL37194, (2) L39305, (2) L40301, (1) 58M5573)
3	58M5573	2	Lubrication Fitting	M6 (FOR AL37193 OR AL37194)
3	58M5574	2	Lubrication Fitting	M8 (FOR AL31497 OR AL31498)
4	19M7919	1	Cap Screw	M12X60
5	L36184	1	Clamp	-
6	14M7325	1	Lock Nut	M12
7	14M7324	2	Lock Nut	M10
8	L34444	2	Washer	-
9	19M7918	1	Cap Screw	M10X60
10	L34445	1	TUBE	(ORD (1) AL36517, (4) L39305, (4) L40301)
10	L39807	1	PIPE	-
11	L36182	1	Clamp	-
12	19M7917	1	CAP SCREW	M10X45
13	AL31497	1	Link End	(ORD (1) AL37205, (2) L39305, (2) L40301, (1) 58M5573)
13	AL37205	1	TIE ROD END	(SUB FOR AL37193)
14	L36442	1	Arm	(A) LH
15	19H1988	2	Cap Screw	3/4"X6"
16	19H2001	6	Cap Screw	3/4"X5-1/2" (SUB FOR 19H3210)
17	AR74606	2	Knuckle	-
18	T34548	2	Washer	-
19	T31749	2	Washer	-
20	JD8412	2	Thrust Bearing	-
21	AL58307	1	Axle	(A) LH (SUB FOR AL34571)
21	AL58308	1	Axle	(A) RH (SUB FOR AL34570)
22	T34546	4	Bushing	-
23	JD7759	2	Lubrication Fitting	1/8" (SUB FOR JD7798)
24	14H794	8	Nut	3/4"
25	T15288	2	WASHER	-
26	T15285	1	Shim	TK=0,68MM(.027")
27	40M7195	2	Snap Ring	25X1,2MM
28	L36086	2	Pin Fastener	-
29	L34366	1	Arm	RH
30	F3607R	2	Washer	-
31	12H236	2	Lock Washer	3/4"
32	L36227	2	CAP SCREW	3/4"X2" (SUB FOR 19H1768)
33	L40301	4	Ring	-
34	L39305	4	Seal	-

FRONT AXLE KNEE/SPINDLE KNUCKLE/TIE ROD [02D07]

Нет текстового описания
