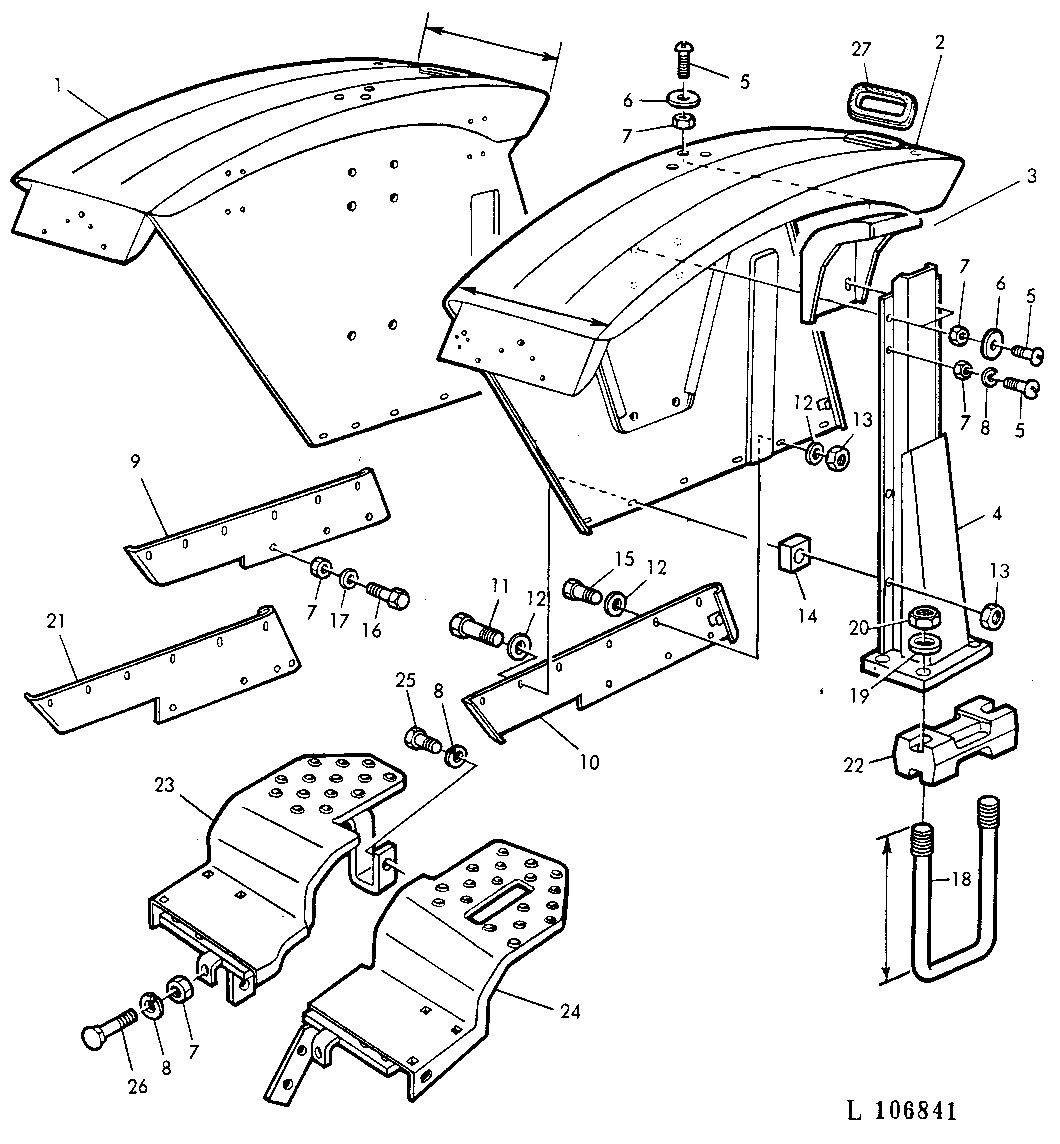

REAR FENDERS (WIDE)/STEP PLATES [02B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT27771	1	FENDER	LH,482MM(18.98")
1	AT27769	1	FENDER	LH,438MM(17.24")
1	AT27764	1	HOLLOW SCREW	LH,570MM(22.44")
2	AT27768	1	FENDER	RH,438MM(17.24")
2	AT27770	1	FENDER	RH,482MM(18.98")
2	AT27760	1	FENDER	RH,570MM(22.44")
3	L24974	2	BRACKET	-
4	AT27757	2	SUPPORT	-
5	21H1069	18	SCREW	3/8"X1"
6	24H1308	10	Washer	13/32"X1"X.105"
7	14H812	24	NUT	3/8"
8	12H304	8	Lock Washer	3/8"
9	AT27759	1	EXTENSION	(A) 16.9-34,15.5-38,LH
10	AT27758	1	EXTENSION	(A) 16.9-34,15.5-38,LH
11	19H1905	4	Cap Screw	5/16"X1"
12	24H1136	20	Washer	11/32"X11/16"X.060"
13	14H785	12	Nut	5/16"
14	T29611	4	STRAP	-
15	19H1813	8	CAP SCREW	5/16"X5/8"
16	19H2021	6	Cap Screw	3/8"X5/8"
17	24H1303	6	WASHER	13/32"X11/15"X.060"
18	T32161	4	U-BOLT	248MM(9.77")
18	T32245	4	U-BOLT	299MM(11.73")
19	24H1396	8	Washer	25/32"X1-1/2"X.105"
20	14H863	8	Nut	3/4"
21	AT31411	1	EXTENSION	(A) 18.4-34,RH
21	AT31412	1	EXTENSION	(A) 18.4-34,LH
22	L30619	4	SPACER	(A) 16.9-34,15.5-38 (SUB FOR T32162)
22	L30619	8	SPACER	(A) 18.4-34 (SUB FOR T32162)
23	AT26353	1	FOOTREST	LH
24	AL23201	1	FOOTREST	RH (SUB FOR AT26352)
25	19H1732	2	Cap Screw	3/8"X1-1/4"
26	03H1765	2	Bolt	3/8"X3/4"
27	R20759	2	Grommet	(SUB FOR L11510)

REAR FENDERS (WIDE)/STEP PLATES [02B03]

Нет текстового описания
