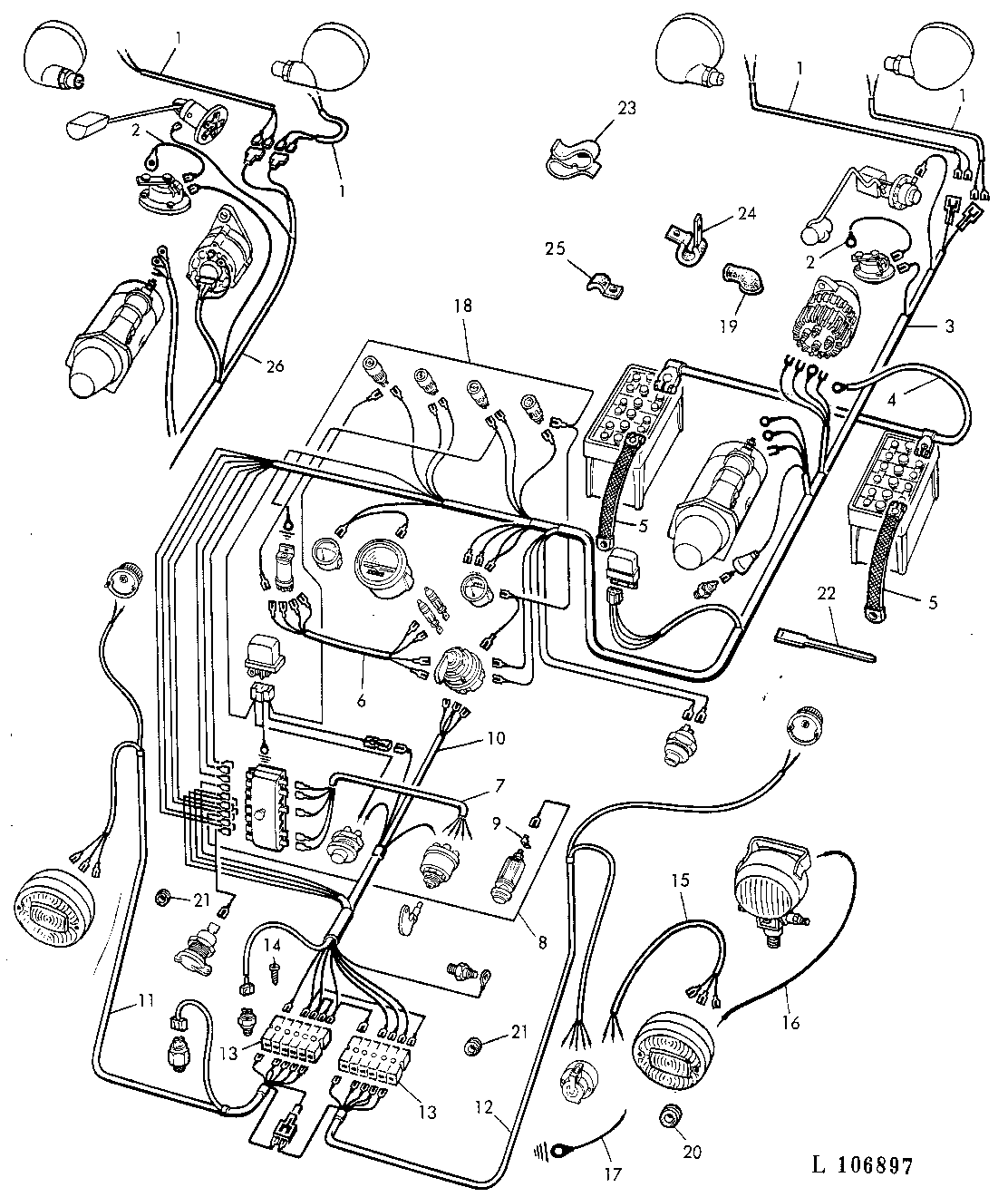

ELECTRICAL SYSTEM (SHELL-TYPE FENDERS) [01E19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT27735	2	WIRING HARNESS	-
2	AT24549	1	WIRING LEAD	-
3	AT27729	1	WIRING HARNESS	-
4	AL35591	1	BATTERY CABLE	(+) (SUB FOR (2) AT26559,AL24228, AL31219)
5	AT20749	2	GROUND CABLE	(-) (SUB FOR AT26560)
6	AT27652	1	WIRING HARNESS	-
7	AT27730	1	WIRING HARNESS	-
8	AT23451	1	WIRING LEAD	-
9	L17569	1	ELECTRICAL PLUG	-
10	AT32248	1	WIRING HARNESS	-
10	AT27732	1	WIRING HARNESS	(A)
11	AT32250	1	WIRING HARNESS	LH
11	AR49811	1	WIRING HARNESS	(A) LH
11	AR49822	1	WIRING HARNESS	(A) (B) LH
12	AR49823	1	WIRING HARNESS	(A) (B) RH
12	AT32249	1	WIRING HARNESS	RH
12	AR49810	1	WIRING HARNESS	(A) RH
13	AL13683	2	LINK	-
14	37H2	2	Screw	NO.8X5/8"
15	AT32251	1	WIRING HARNESS	RH
15	AR49812	1	WIRING HARNESS	(A) RH
16	AT26930	1	WIRING LEAD	RH
16	AR49819	1	WIRING HARNESS	(A) RH
17	AL17099	1	WIRING LEAD	-
18	AT31773	1	WIRING LEAD	-
19	L12809	1	Elec. Connector Accessory	-
20	L12807	1	Grommet	-
21	L13325	4	Grommet	-
22	R44302	3	Tie Band	(SUB FOR R27457)
23	T41072	1	CLIP	(SUB FOR M644T)
24	R27591	4	CLAMP	(SUB FOR T13814)
25	R27531	1	Clamp	-
26	AR56145	1	WIRING HARNESS	-

ELECTRICAL SYSTEM (SHELL-TYPE FENDERS) [01E19]
