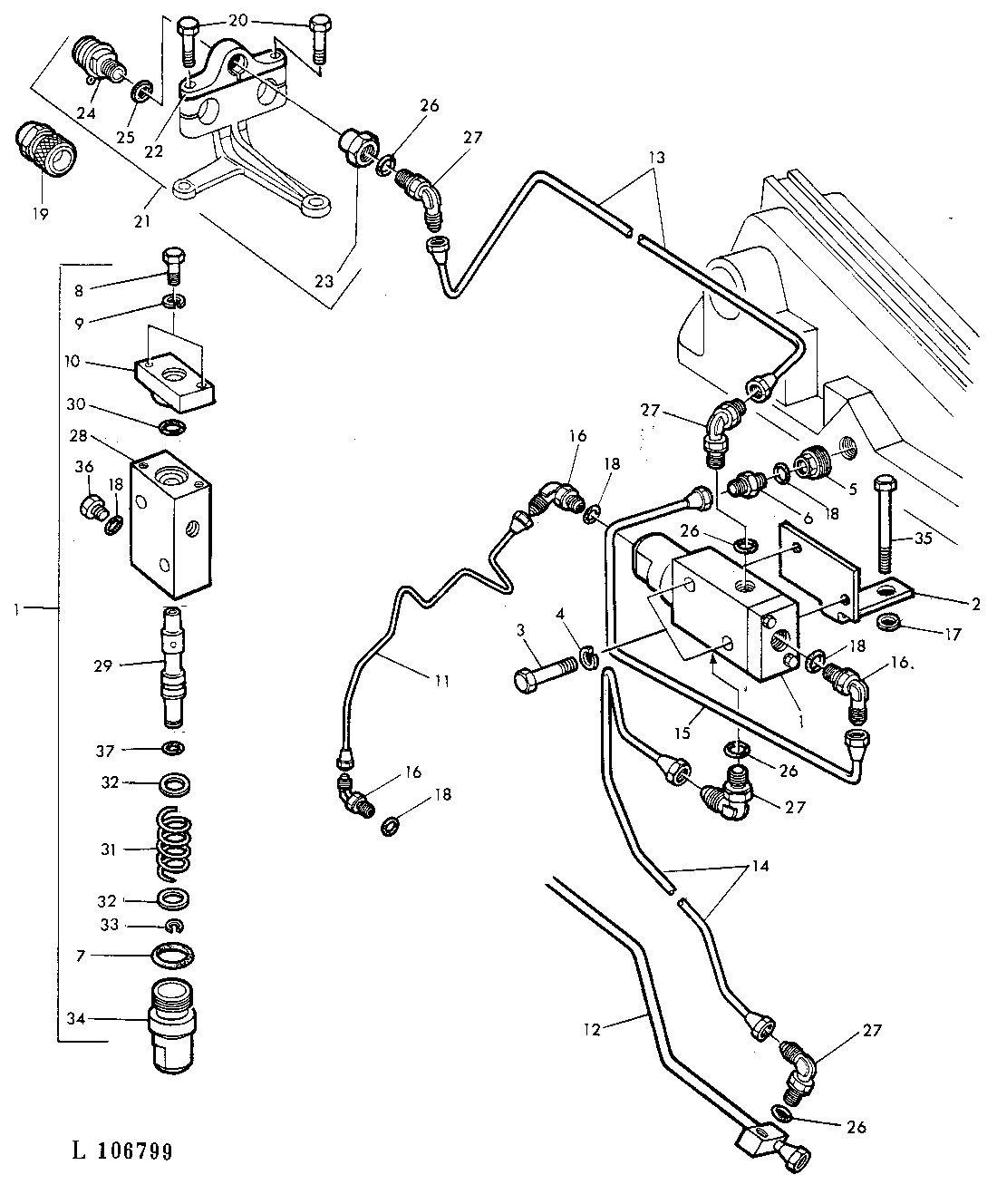

BRAKE VALVE FOR HYDRAULIC TRAILER BRAKE [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL24247	1	VALVE	ASSY,INCL KEYS 7-10,18,28-34 36,37 (SUB FOR AR52835)
2	R48927	1	BRACKET	-
3	19H2569	2	Cap Screw	5/16"X1-5/8"
4	12H303	2	Lock Washer	5/16"
5	R48926	1	PIPE PLUG	-
6	R27527	1	ADAPTER FITTING	(SUB FOR R27139)
7	R495R	1	O-Ring	-
8	19H1948	2	Cap Screw	1/4"X3/4"
9	12H302	2	Lock Washer	1/4"
10	L34348	1	COVER	(SUB FOR R48918)
11	AR52367	1	OIL LINE	-
12	AR52365	1	OIL LINE	-
13	AR52369	1	OIL LINE	-
14	AR52370	1	OIL LINE	-
15	AR52371	1	OIL LINE	-
16	AR26746	3	Elbow Fitting	3/8"
17	24H1625	1	Washer	1/2"X1"X.120"
18	R26287	4	O-Ring	-
19	AR52361	1	HYD. QUICK-CONNECT COUPLER	-
20	19H1726	2	Cap Screw	3/8"X2-1/4"
21	AR52362	1	HYDR.QUICK COUPLER PLUG	ASSY,INCL KEYS 22-25
22	R48933	1	CLAMP	-
23	R48934	1	LINK	-
24	AR52372	1	PLUG	-
25	L37599	1	Sealing Ring	(SUB FOR 51M4236 APPL)
26	R26448	4	O-Ring	-
27	AR26725	4	ELBOW FITTING	-
28	-	1	Part 28	NSEP (ORD AL24247)
29	-	1	Part 29	NSEP (ORD AL24247)
30	U11343	1	O-RING	(SUB FOR R48917)
31	L27321	1	SPRING	(SUB FOR T31673)
32	L20095	2	Washer	-
33	L18893	1	Snap Ring	-
34	L41130	1	CAP	(SUB FOR R48919)
35	19H1993	1	CAP SCREW	1/2"X5-1/4"
36	R31631	1	DRAIN PLUG	3/8"
37	L53811	1	O-Ring	-

BRAKE VALVE FOR HYDRAULIC TRAILER BRAKE [01I09]
