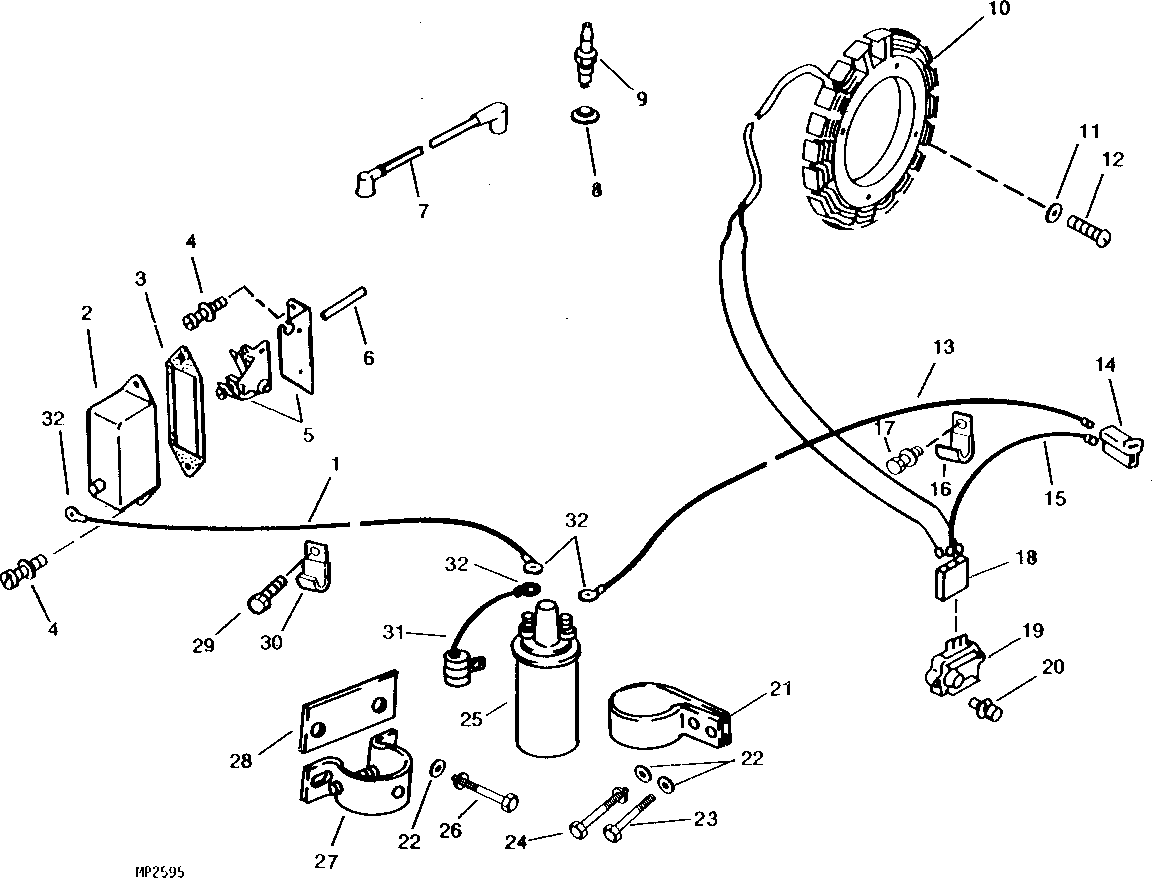

IGNITION SYSTEM (S.N. 80001- ) [B04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AM37971	1	WIRING LEAD	(SUB FOR AM37383)
2	M43560	1	COVER	-
3	M84723	1	GASKET	(SUB FOR M42007)
4	21H1300	4	SCREW	0.190" X 3/8"
4	12H295	4	Lock Washer	0.190"
5	AM35000	1	BREAKER POINTS	-
6	M86474	1	ROD	(SUB FOR M81481)
7	HE167-1602	1	CABLE	SPARK PLUG, (SUB FOR AM35889)
8	M47487	1	WASHER	-
9	AM37129	1	SPARK PLUG	(CHAMPION RH-10) (RESISTOR)
9	AM1535T	1	SPARK PLUG	(AC 45L)
9	AM514T	1	SPARK PLUG	(CHAMPION H-10)
9	TY21721	1	SPARK PLUG	(PRESTOLITE 14-L7B) (SUB FOR AT17208 AND TY6070)
10	AM33426	1	Stator	-
11	12H295	4	Lock Washer	0.190"
12	21H1148	4	Screw	0.190" X 3/4"
13	-	1	Part 17	(COIL TO CONNECTOR) (ORDER AM37239)
14	M47488	1	Elec. Connector Terminal	-
15	-	1	Part 19	(CONNECTOR TO REGULATOR RECTIFIER) (ORDER AM37239)
16	M80365	1	Clip	(SUB FOR M75391)
17	19H1948	1	Cap Screw	1/4" X 3/4"
17	24H1287	1	Washer	9/32" X 5/8" X 0.065"
18	M47486	1	Elec. Connector Terminal	-
19	AM106357	1	VOLTAGE REGULATOR	(SUB FOR AM34738)
20	19H1914	2	Cap Screw	1/4" X 1"
20	12H302	2	Lock Washer	1/4"
21	M81511	1	BRACKET	(A) (312) (HAIRPIN TYPE)
21	M83617	1	BRACKET	(OMEGA TYPE) (SUB AM35913)
22	24H1287	3	Washer	9/32" X 5/8" X 0.065"
22	24H1287	1	Washer	9/32" X 5/8" X 0.065"
22	M80585	1	WASHER	-
23	19H1227	1	Cap Screw	1/4" X 1/2"
24	12H302	1	Lock Washer	1/4"
24	19H2479	1	Cap Screw	1/4" X 3/8"
25	AM38411	1	ELECTRICAL COIL	(SUB FOR AM37031)
26	19H1919	1	Cap Screw	1/4" X 5/8"
26	12H302	1	Lock Washer	1/4"
27	AM35913	1	CLAMP	(314)
28	M47524	1	PLATE	-
29	37H43	1	Screw	NO. 8 X 3/8"
30	M45700	1	Clip	-
31	AM31029	1	CAPACITOR	-
32	R32018	4	Elec. Connector Terminal	-
..	AM37239	1	KIT	LEAD (INCLUDES 60", 14 GA. WIRE, CONNECTORS AND GROMMET)
