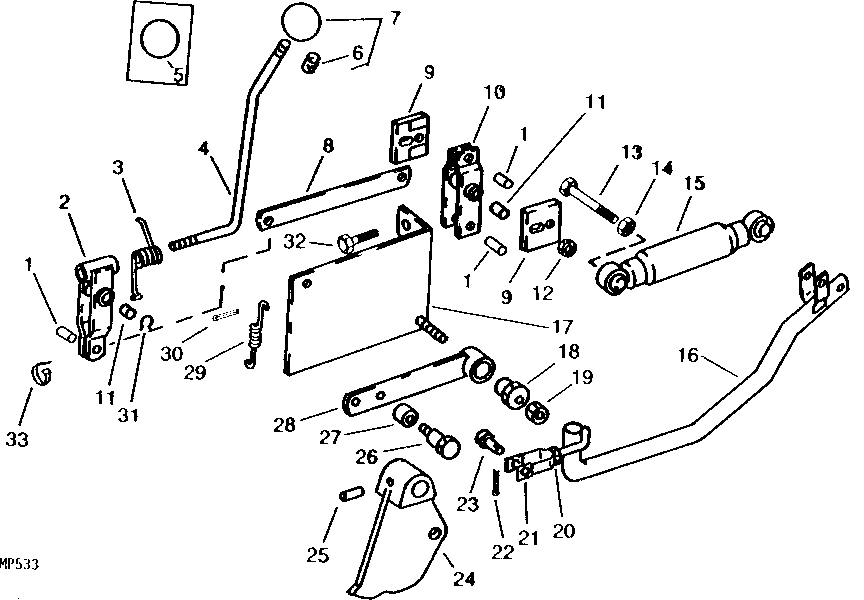

HYDROSTATIC CONTROL LEVER AND LINKAGE [C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	34H312	3	Spring Pin	1/4" X 1"
2	AM36180	1	CRANK	(INCLUDES (2) M48355 BUSHINGS) (312)
2	AM37773	1	CRANK	(INCLUDES (2) M48355 BUSHINGS) (314)
3	M48354	1	TORSION SPRING	-
4	M48353	1	ROD	(HAS THREADED END FOR M48295 KNOB)
4	M83535	1	ROD	(314) (SUB FOR M82611)
5	M48295	1	Knob	THREADED
6	M83530	1	Fastener Item	(314)
7	M83531	1	KNOB	(CLIP NOT INCLUDED) (314) (SUB FOR AM102562)
8	M48288	1	STRAP	-
9	AM35594	2	PLATE	-
10	AM35218	1	PIVOT	-
11	M48355	4	Bushing	-
12	T11234	1	Lock Nut	-
13	19H1740	2	Cap Screw	7/16" X 1-3/4"
14	M17841	2	Lock Nut	-
15	AM35220	1	SHOCK ABSORBER	-
16	AM36506	1	TUBE	-
17	AM35928	1	BRACKET	-
18	M78733	1	Bearing	(SUB FOR M42371)
19	14H785	1	Nut	5/16"
20	14H774	1	Nut	3/8"
21	M42228	1	YOKE	-
22	11M7081	1	Cotter Pin	2.500 X 20 MM
23	M46200	1	Pin Fastener	(SUB FOR M80760)
24	AM102560	1	SWASH PLATE	(INCLUDES ROLLER) (SUB FOR M49117)
25	A26311	1	PIN	(SUB FOR M80713)
26	M42370	1	BOLT	-
27	M80533	1	Washer	-
28	AM35926	1	ARM	-
29	L1142C	1	Extension Spring	-
30	11M1383	1	Cotter Pin	3.200 X 20 MM
31	R72655	1	Snap Ring	(SUB FOR T12808)
32	19H1733	2	CAP SCREW	3/8" X 2-1/2"
33	R44302	3	Tie Band	(SUB FOR M81909)

HYDROSTATIC CONTROL LEVER AND LINKAGE [C10]
