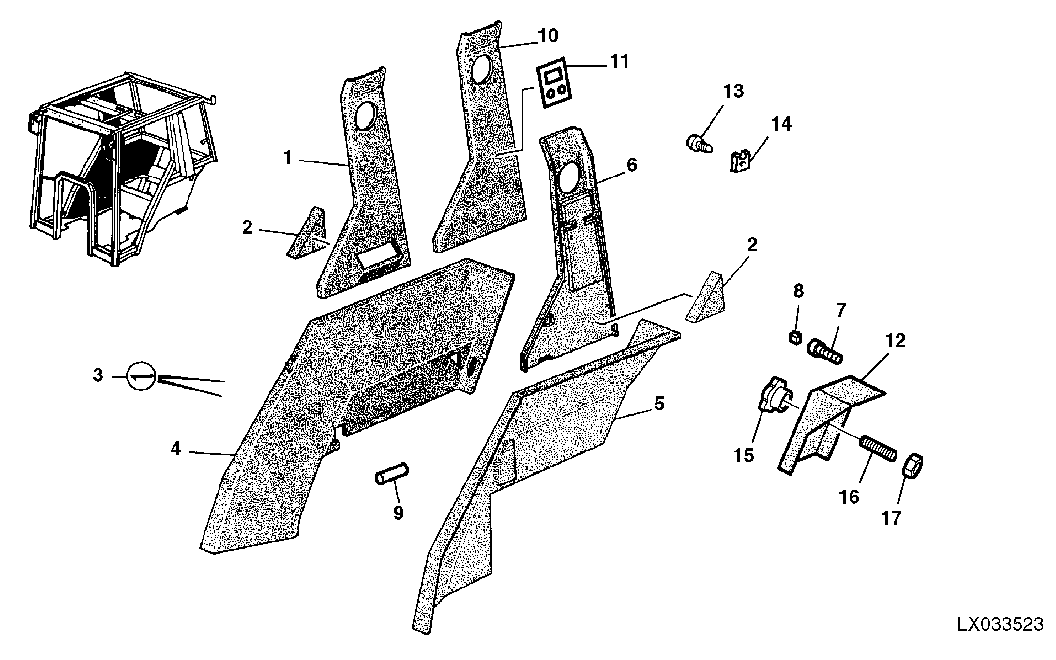

FENDER AND POST PANELS FOR REVERSHIFT OR EHS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RT7700050671	1	Acoustical Upholstery	(FOR MECHANICAL SYSTEM) RH
2	RT7700032518	2	Pad	-
3	RT7700034732	2	Weatherstrip	LGTH= 1600 MM
4	RT7700050674	1	Headliner	RH
4	RT7700057392	1	Acoustical Upholstery	(FOR MODEL WITH EHS) RH
5	RT7700057393	1	Acoustical Upholstery	(FOR MODEL WITH REVERSHIFT) LH
5	RT7700050672	1	Headliner	(FOR MECHANICAL SYSTEM) LH
6	RT7700050670	1	Acoustical Upholstery	LH
7	RT7700026726	2	Set Screw	(FOR MODEL WITH REVERSHIFT)
8	RT7700056865	2	Knob	(FOR MODEL WITH REVERSHIFT)
9	RT7700684996	1	Union Fitting	-
10	RT7700054857	1	Acoustical Upholstery	(FOR MODEL WITH REVERSHIFT) RH
11	RT7700054853	1	Cover	(FOR MODEL WITH REVERSHIFT)
12	RT7700056467	1	Shield	(FOR MODEL WITH REVERSHIFT)
13	RT7703016401	1	Screw	M4 2 X 16
13	RT7700034735	1	Screw	M4 2 X 9 5
14	RT7703046069	1	Nut	M4 2
15	RT7700045378	2	Knob	(FOR MODEL WITH REVERSHIFT)
16	RT7700049799	2	Threaded Nipple	(FOR MODEL WITH REVERSHIFT) 210 X 90 MM
17	RT7700048669	2	Nut	(FOR MODEL WITH REVERSHIFT)

FENDER AND POST PANELS FOR REVERSHIFT OR EHS
