Single Lever Loader Control, Auxiliary Kit ( - 292974)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7619	1	Elec.Connect Locking Device	-
1	AT431312	1	Valve Kit	Whole Goods
2	AT377478	1	Control Valve	Five Function Electrohydraulic Auxiliary Components on Separate Page
3	38H3161	2	Adapter Fitting	-
4	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
5	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
6	AT432165	1	Hydraulic Hose	Inboard Fabricate
7	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
8	AT432166	1	Hydraulic Hose	Third Function Fabricate
9	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
10	AT432171	1	Oil Line	-
11	AT432172	1	Oil Line	-
12	-	1	Part 13	MAKE FROM T339502, CTL 609.6 mm (24.000 in)
13	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
14	T159954	2	Clamp	-
15	24M7239	5	Washer	10.700 X 21 X 2.500 mm
16	19M7875	2	Cap Screw	M10 X 70
17	R46919	2	Half Clamp	-
18	19M8081	1	Cap Screw	M10 X 80
19	T217085	1	Clamp	-
20	19M7784	1	Screw	M10 X 20
21	AT435061	1	Hydraulic Hose	-
22	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
23	AT435061	1	Hydraulic Hose	-
24	KV11305	1	Hyd. Quick-Connect Coupler	Male
25	T80306	1	Nut	-
26	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
27	AT312876	1	Hyd. Quick-Connect Coupler	Female
28	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
29	T188879	1	Cap	Male
30	T188880	1	Cap	Female
31	AT381636	1	Flow Control Hyd. Valve	-
31	AT381636	1	Flow Control Hyd. Valve	Single Lever Loader Control
31	AT335739	1	Elec.Proportional Valve	20 bar
31	AT368250	1	Seal Kit	Stabilizer Cartridge
31	AT386503	1	Elec.Proportional Valve	20 bar
32	19M8145	2	Screw	M6 X 80
33	28H3425	2	Spacer	0.423" X 0.675" X 5/8"
34	14M7303	6	Flange Nut	M6
35	T300004	1	Bracket	-
36	T148409	2	Nut	-
37	19M7785	2	Screw	M10 X 25
38	TY22468	2	Clamp	-
39	38H3016	1	Tee Fitting	-
40	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
41	R26448	1	O-Ring	-
42	38H3309	2	Adapter Fitting	-
43	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
44	R28782	2	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
45	38H3564	1	Adapter Fitting	-
46	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
47	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
48	38H3435	1	Adapter Fitting	-
49	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
50	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
51	38H3004	1	Adapter Fitting	-
52	R26448	1	O-Ring	-
53	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
54	38H3160	1	Adapter Fitting	-
55	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
56	R26448	1	O-Ring	-
57	T340339	1	Check Valve	Manual Controls
58	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
59	R26448	1	O-Ring	-
60	62H1021	1	Adapter Fitting	-
61	38H5071	1	Elbow Fitting	-
62	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
63	51M7043	1	O-Ring	15.300 X 2.200 mm
64	AT433739	1	Hydraulic Hose	To Backhoe Valve
65	AT433742	1	Hydraulic Hose	Manual Controls
66	AT433745	1	Hydraulic Hose	Port B
67	AT433740	1	Hydraulic Hose	Port A
68	AT438866	1	Hydraulic Hose	Single Lever Loader Control Return Fabricate
69	AT428490	1	Grip	With Switches
70	T339747	1	Grip	-
71	T209627	1	Clamp	-
72	38H5037	1	Adapter Fitting	-
73	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
74	51M7042	1	O-Ring	13.300 X 2.200 mm
75	AT433706	1	Hydraulic Hose	Supply Pilot Controls Fabricate
76	T351612	1	Label	Loader Control Three Function with Electrohydraulic Auxiliary
77	AT431035	1	Wiring Harness	Third Function Loader Control
78	AT472332	1	Vehicle Controller	-
79	19M7775	4	Screw	M6 X 16
80	AT432173	1	Wiring Harness	Auxiliary Hydraulics
81	57M9940	1	Elec. Connector Accessory	-
82	57M7628	1	Electrical Connector Assy	-
83	38H5427	2	Fitting Plug	-
84	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
85	R44302	5	Tie Band	-
86	AT376347	1	Accumulator Kit	Uncharged Accumulator
87	AT196760	1	Valve Kit	-
87	T26209	1	Ring	-
87	T180944	1	Label	Accumulator, English
87	T215216	1	Label	Accumulator, French
87	T215217	1	Label	Accumulator, Spanish
87	T290050	1	Label	Accumulator, Russian

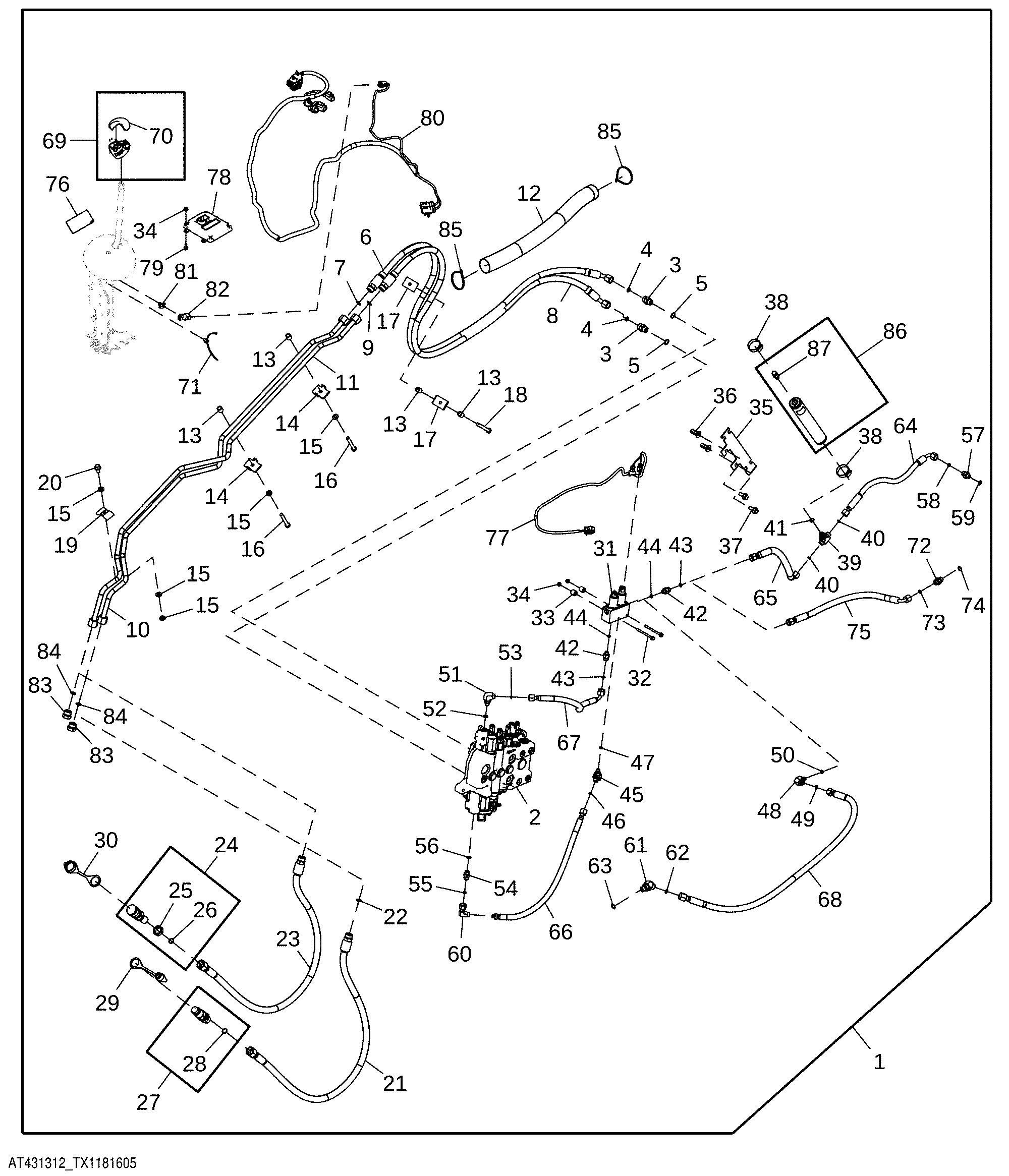

Single Lever Loader Control, Auxiliary Kit ( - 292974)
