Loader Coupler Valves and Hydraulics (304845 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

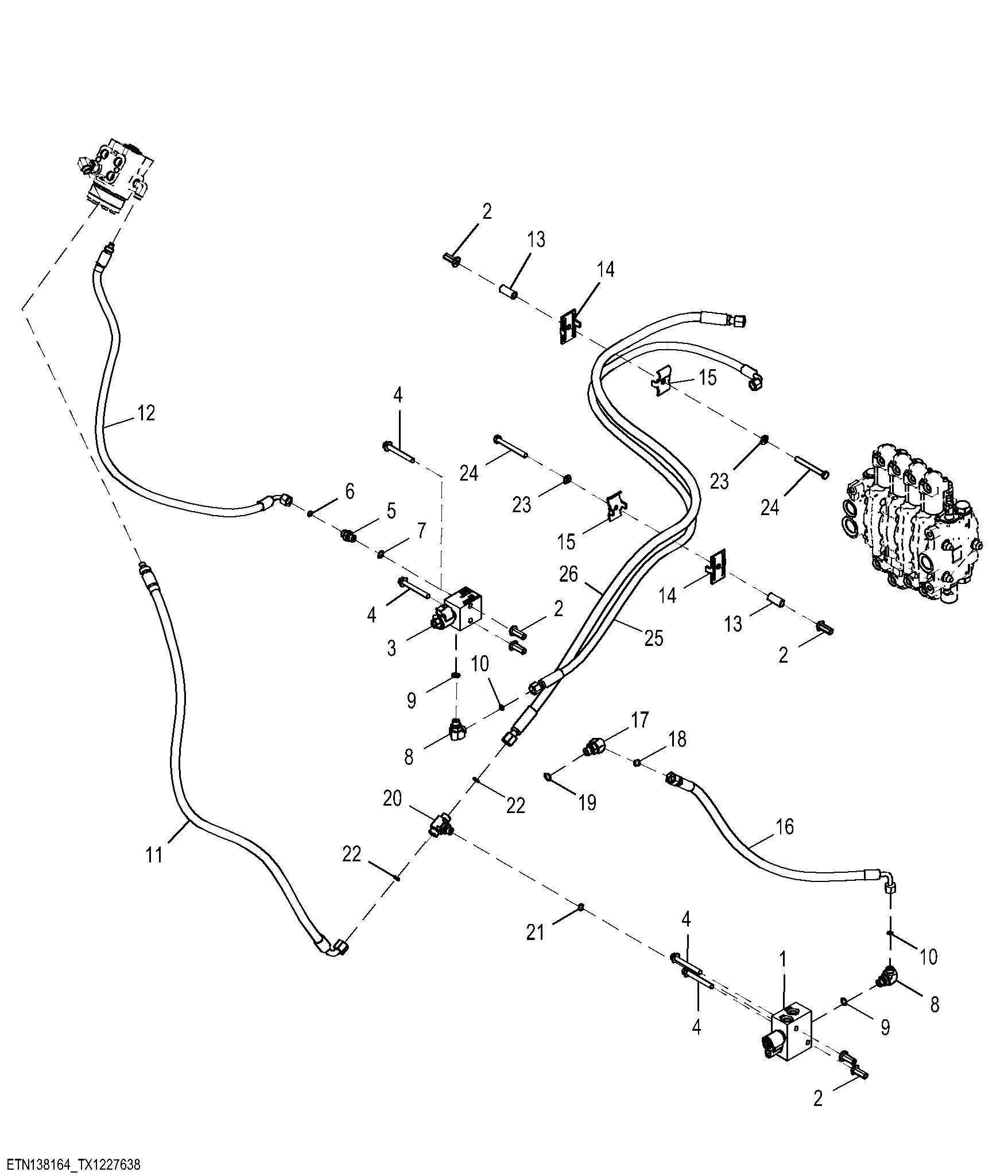

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT430765	1	Solenoid Valve	Loader Coupler Unlock Manifold Components On Separate Page
2	T148409	6	Nut	-
3	AT456983	1	Solenoid Valve	Loader Coupler Pressure Manifold Components On Separate Page
4	19M7810	4	Screw	M10 X 80
5	38H5037	1	Adapter Fitting	-
6	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
7	51M7042	1	O-Ring	13.300 X 2.200 mm
8	38H5035	2	Elbow Fitting	-
9	51M7042	2	O-Ring	13.300 X 2.200 mm
10	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
11	AT474901	1	Hydraulic Hose	OC Coupler Valve to Steering Pressure Hose, ALSO ORDER 62H1043 OR 62M1011 AND T77857
11	62H1043	1	Adapter Fitting	-
11	62M1011	1	Fitting	-
11	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
12	62M1010	1	Fitting	-
12	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	62H1042	1	Adapter Fitting	-
12	AT474902	1	Hydraulic Hose	OC Coupler Valve to Steering Solenoid Valve, Priority LS Booster, ALSO ORDER 62H1042 OR 62M1010 AND T77613
13	28H3379	2	Spacer	0.493" X 0.675" X 1-9/16"
14	T159956	2	Clamp	-
15	T160548	2	Clamp	-
16	AT459562	1	Hydraulic Hose	OC Coupler Tank Hose
17	38H5071	1	Elbow Fitting	-
18	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
19	51M7043	1	O-Ring	15.300 X 2.200 mm
20	38H5499	1	Tee Fitting	-
21	51M7042	1	O-Ring	13.300 X 2.200 mm
22	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
23	24M7239	2	Washer	10.700 X 21 X 2.500 mm
24	19M8183	2	Cap Screw	M10 X 90
25	AT459560	1	Hydraulic Hose	Hydraulic BHV to OC coupler Solenoid Valve LS Booster
26	AT459559	1	Hydraulic Hose	Hydraulic BHV to OC coupler Solenoid Valve LS Booster

Loader Coupler Valves and Hydraulics (304845 - )
