Открытый узел

Loader Coupler Hydraulics ( - 304844)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT195922	1	Hyd Actuated Control Valve	-
1	AT309458	1	Solenoid Hydraulic Valve	Pressure Cut-Off, Load Sense Components On Separate Page
1	T225291	1	Nut	-
1	F433465	1	Seal Kit	-
1	AT224862	1	Seal Kit	-
1	AT224570	1	Check Valve	-
1	AT333812	1	Solenoid Valve Coil	-
2	38H3160	3	Adapter Fitting	-
3	T77613	3	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
4	R26448	3	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
5	38H5107	1	Elbow Fitting	-
6	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
7	38H3017	1	Tee Fitting	-
8	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
9	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
10	24M7239	7	Washer	10.700 X 21 X 2.500 mm
11	19M7638	2	Cap Screw	M10 X 130
12	T148409	2	Nut	-
13	38H3045	1	Elbow Fitting	-
14	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
16	62H1001	1	Adapter Fitting	-
17	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
18	AT434798	1	Hydraulic Hose	Fabricate, ALSO ORDER 62H1043 OR 62M1011 AND T77857
19	AT434801	1	Hydraulic Hose	ALSO ORDER 62H1042 OR 62M1010 AND T77613
20	AT434802	1	Hydraulic Hose	-
21	AT434804	1	Hydraulic Hose	Steering Pressure Fabricate
22	AT434805	1	Hydraulic Hose	Return To Tank Fabricate, ALSO ORDER 62H1042 OR 62M1010 AND T77613
23	AT426409	1	Hydraulic Hose	Not Illustrated Work Port B Fabricate, INCLUDES T77857
23	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
24	AT426410	1	Hydraulic Hose	Not Illustrated Work Port A Fabricate, INCLUDES T77857
24	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
25	38H5012	1	Adapter Fitting	-
26	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	51M7043	1	O-Ring	15.300 X 2.200 mm
28	AT432261	1	Oil Line	-
28	38H5080	1	Tube Nut	-
29	AT432259	1	Oil Line	-
29	38H5080	2	Tube Nut	-
30	T185089	1	Sleeve	-
31	T217085	3	Clamp	-
32	19M7784	3	Screw	M10 X 20
33	-	1	Part 43	MAKE FROM T78606, CTL 25.40 cm (10.000 in)
34	R44302	4	Tie Band	-
35	28H1697	2	Spacer	0.493" X 0.675" X 3/4"
36	T190979	1	Half Clamp	-
37	19M7742	2	Cap Screw	M10 X 65
38	R46919	3	Half Clamp	-
39	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
40	19M7550	1	Cap Screw	M10 X 35
41	14M7274	1	Nut	M10
42	62H1042	1	Adapter Fitting	-06, Not Illustrated
43	62M1010	1	Fitting	10.00 mm X 10.00 mm, Tube Not Illustrated, OD
44	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated
45	62H1043	1	Adapter Fitting	-08, Not Illustrated
46	62M1011	1	Fitting	12.00 mm X 12.00 mm, Tube Not Illustrated, OD
47	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated

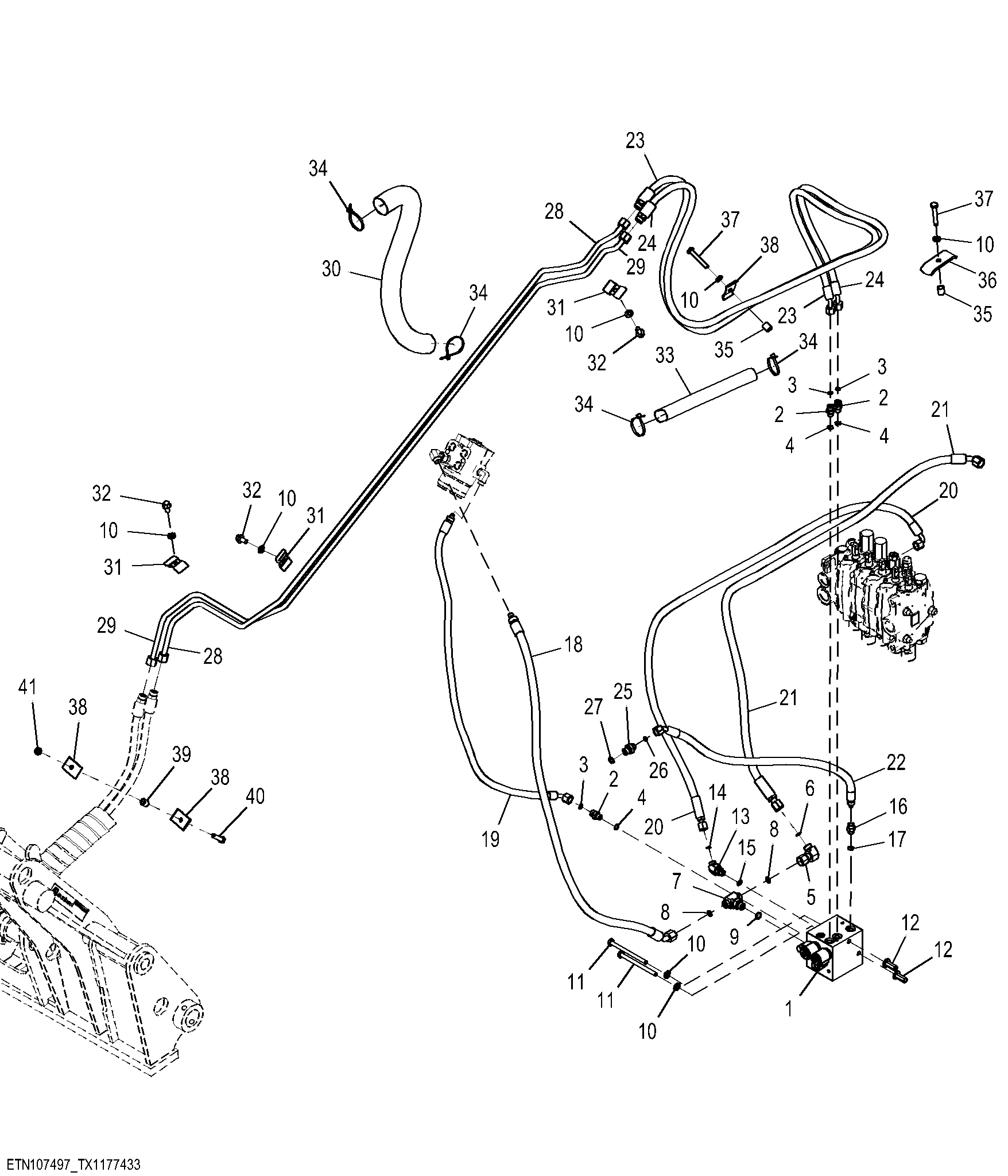

Loader Coupler Hydraulics ( - 304844)
