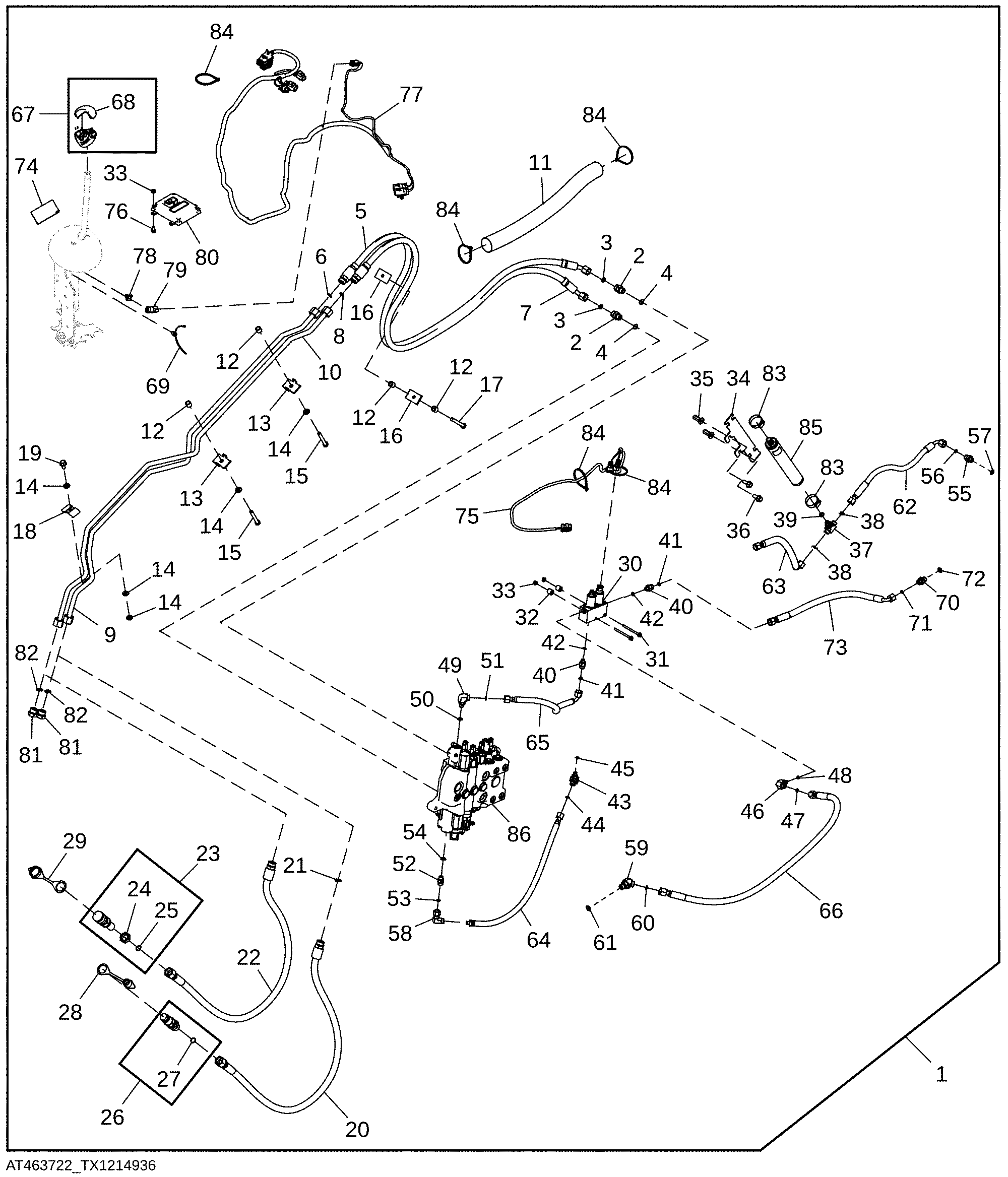

Loader Auxiliary Control Kit, Single Lever (292975 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	57M7619	1	Elec.Connect Locking Device	-
1	AT463722	1	Valve Kit	WHOLE GOODS, INCLUDES 57M7619
2	38H3161	2	Adapter Fitting	-
3	T77857	2	O-Ring	-
4	R26375	2	O-Ring	-
5	AT432165	1	Hydraulic Hose	Third Function, INCLUDES T77932
6	T77932	1	O-Ring	-
7	AT432166	1	Hydraulic Hose	Third Function, INCLUDES T77932
8	T77932	1	O-Ring	-
9	AT432171	1	Oil Line	To Male Coupler
10	AT432172	1	Oil Line	To Female Coupler
11	-	1	Part 12	MAKE FROM T339502, CTL 609.6 mm (24 in)
12	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
13	T159954	2	Clamp	-
14	24M7239	5	Washer	10.700 X 21 X 2.500 mm
15	19M7875	2	Cap Screw	M10 X 70
16	R46919	2	Half Clamp	-
17	19M8081	1	Cap Screw	M10 X 80
18	T217085	1	Clamp	-
19	19M7784	1	Screw	M10 X 20
20	AT435061	1	Hydraulic Hose	To Male Coupler, INCLUDES T77932
21	T77932	1	O-Ring	-
22	AT435061	1	Hydraulic Hose	To Female Coupler, INCLUDES T77932
22	T77932	1	O-Ring	-
23	KV11305	1	Hyd. Quick-Connect Coupler	Female
24	T80306	1	Nut	-
25	T77932	1	O-Ring	-
26	AT312876	1	Hyd. Quick-Connect Coupler	Male
27	T77932	1	O-Ring	-
28	T188879	1	Cap	Male
29	T188880	1	Cap	Female
30	AT381636	1	Flow Control Hyd. Valve	Pilot Pressure Supply Valve, INCLUDES AT386503 AND AT335739
30	AT386503	1	Elec.Proportional Valve	20 bar, Solenoid Valve Pressure Control, INCLUDES AT368250
30	AT368250	1	Seal Kit	-
30	AT335739	1	Elec.Proportional Valve	20 bar, Solenoid Valve Pressure Control with Deutsch Connector, INCLUDES AT519614 AND AT368250
30	AT519614	1	Seal Kit	-
30	AT368250	1	Seal Kit	-
31	19M8145	2	Screw	M6 X 80
32	28H3425	2	Spacer	0.423" X 0.675" X 5/8"
33	14M7303	6	Flange Nut	M6
34	T300004	1	Bracket	Accumulator Bracket
35	T148409	2	Nut	-
36	19M7785	2	Screw	M10 X 25
37	38H3016	1	Tee Fitting	-
38	T77613	2	O-Ring	-
39	R26448	1	O-Ring	-
40	38H3309	2	Adapter Fitting	-
41	T77613	2	O-Ring	-
42	R28782	2	O-Ring	-
43	38H3564	1	Adapter Fitting	-
44	T77613	1	O-Ring	-
45	R28782	1	O-Ring	-
46	38H3435	1	Adapter Fitting	-
47	T77613	1	O-Ring	-
48	R28782	1	O-Ring	-
49	38H3004	1	Adapter Fitting	-
50	R26448	1	O-Ring	-
51	T77613	1	O-Ring	-
52	38H3160	1	Adapter Fitting	-
53	T77613	1	O-Ring	-
54	R26448	1	O-Ring	-
55	T340339	1	Check Valve	-
56	T77613	1	O-Ring	-
57	R26448	1	O-Ring	-
58	62H1021	1	Adapter Fitting	-
59	38H5071	1	Elbow Fitting	-
60	T77857	1	O-Ring	-
61	51M7043	1	O-Ring	15.300 X 2.200 mm
62	AT433739	1	Hydraulic Hose	To Backhoe Valve
63	AT433742	1	Hydraulic Hose	To Solenoid Valve
64	AT433745	1	Hydraulic Hose	Port B, ALSO ORDER 62M1010 AND T77613
64	62M1010	1	Fitting	-
64	T77613	1	O-Ring	-
65	AT433740	1	Hydraulic Hose	Port A
66	AT438866	1	Hydraulic Hose	Return
67	AT428490	1	Grip	-
68	T339747	1	Grip	-
69	T209627	1	Clamp	-
70	38H5037	1	Adapter Fitting	-
71	T77613	1	O-Ring	-
72	51M7042	1	O-Ring	13.300 X 2.200 mm
73	AT433706	1	Hydraulic Hose	Pilot Supply
74	T351612	1	Label	No Text Loader Control Lever Three Function with Electrohydraulic Auxiliary
75	AT431035	1	Wiring Harness	Loader Auxiliary Third Function Components on Separate Page
76	19M7775	4	Screw	M6 X 16
77	AT432173	1	Wiring Harness	Loader Auxiliary Components on Separate Page
78	57M9940	1	Elec. Connector Accessory	-
79	57M7628	1	Electrical Connector Assy	-
80	AT472332	1	Vehicle Controller	-
81	38H5427	2	Fitting Plug	-
82	T77932	2	O-Ring	-
83	TY22468	2	Clamp	-
84	R44302	5	Tie Band	-
85	AT376347	1	Accumulator Kit	Uncharged Accumulator, INCLUDES T215217, T290050, T215216, T180944 AND AT196760
85	T215217	1	Label	Accumulator Spanish
85	T290050	1	Label	Accumulator Russia
85	T215216	1	Label	Accumulator French
85	T180944	1	Label	Accumulator
85	AT196760	1	Valve Kit	Gas Valve, INCLUDES T26209
85	T26209	1	Ring	-
86	AT460670	1	Control Valve	Fifth Function Components On Separate Page, ORDER AT523874
86	AT523874	1	Control Valve	-
