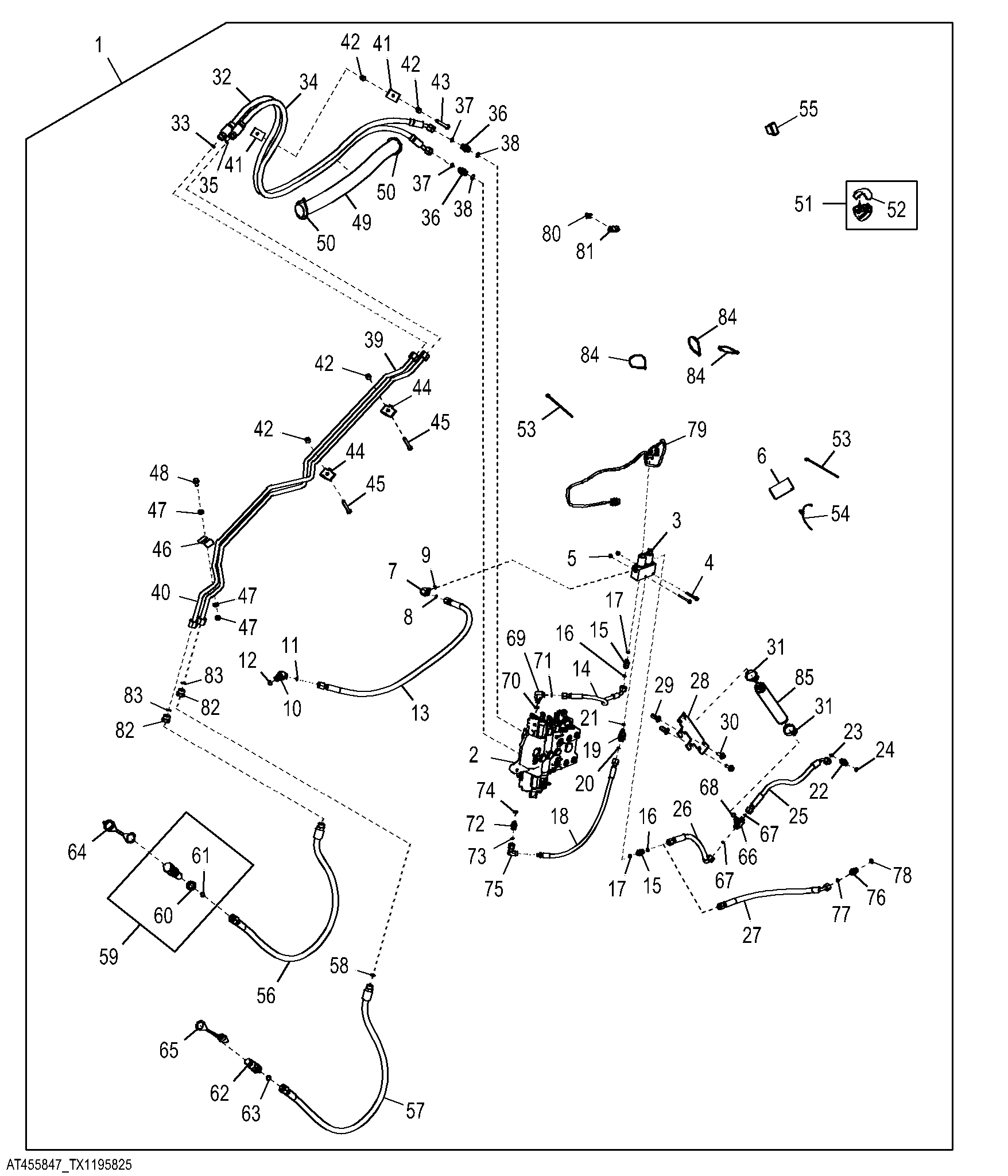

Auxiliary Loader Control Valve with 3-Function Hydraulics, Single Lever ( - 292974)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT455847	1	Valve Kit	Single Lever Electrohydraulic Auxiliary WHOLE GOODS
2	AT377478	1	Control Valve	-
3	AT335739	1	Elec.Proportional Valve	20 bar
3	AT381636	1	Flow Control Hyd. Valve	Single Lever Loader Control
3	AT368250	1	Seal Kit	Stabilizer Cartridge
3	AT368250	1	Seal Kit	Stabilizer Cartridge
3	AT386503	1	Elec.Proportional Valve	20 bar
4	19M8040	2	Screw	M6 X 60
5	14M7303	2	Flange Nut	M6
6	T351612	1	Label	Loader Control Three Function with Electrohydraulic Auxiliary
7	38H3435	1	Adapter Fitting	-
8	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
9	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
10	38H5071	1	Elbow Fitting	-
11	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
12	51M7043	1	O-Ring	15.300 X 2.200 mm
13	AT438866	1	Hydraulic Hose	Return
14	AT433740	1	Hydraulic Hose	Port A
15	38H3309	1	Adapter Fitting	-
16	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
17	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
18	AT433745	1	Hydraulic Hose	Port B, ALSO ORDER 62M1010 AND T77613
18	62M1010	1	Fitting	-
18	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
19	38H3564	1	Adapter Fitting	-
20	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
21	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
22	T340339	1	Check Valve	-
23	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
25	AT433739	1	Hydraulic Hose	Backhoe Valve
26	AT433742	1	Hydraulic Hose	-
27	AT433706	1	Hydraulic Hose	Supply
28	T300004	1	Bracket	-
29	T148409	2	Nut	-
30	19M7785	2	Screw	M10 X 25
31	TY22468	2	Clamp	-
32	AT432165	1	Hydraulic Hose	-
33	T77932	1	O-Ring	-
34	AT432166	1	Hydraulic Hose	-
35	T77932	1	O-Ring	-
36	38H3161	1	Adapter Fitting	-
37	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
38	R26375	1	O-Ring	-
39	AT432171	1	Oil Line	-
40	AT432172	1	Oil Line	-
41	R46919	2	Half Clamp	-
42	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
43	19M8081	1	Cap Screw	M10 X 80
44	T159954	2	Clamp	-
45	19M7875	2	Cap Screw	M10 X 70
46	T217085	1	Clamp	-
47	24M7239	3	Washer	10.700 X 21 X 2.500 mm
48	19M7784	1	Screw	M10 X 20
49	-	1	Part 55	MAKE FROM T339502, CTL 609.6mm
50	H77698	2	Tie Band	-
51	AT428490	1	Grip	-
52	T339747	1	Grip	-
53	R44302	6	Tie Band	-
54	T209627	1	Clamp	-
55	AT425597	1	Toggle/Rocker Switch	Loader Auxiliary
56	AT435061	1	Hydraulic Hose	-
57	AT435061	1	Hydraulic Hose	-
58	T77932	1	O-Ring	-
59	KV11305	1	Hyd. Quick-Connect Coupler	-
60	T80306	1	Nut	-
61	T77932	1	O-Ring	-
62	AT312876	1	Hyd. Quick-Connect Coupler	-
63	T77932	1	O-Ring	-
64	T188880	1	Cap	Female
65	T188879	1	Cap	Male
66	38H3016	1	Tee Fitting	-
67	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
68	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
69	38H3004	1	Adapter Fitting	-
70	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
71	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
72	38H3160	1	Adapter Fitting	-
73	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
74	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
75	62H1021	1	Adapter Fitting	-
76	38H5037	1	Adapter Fitting	-
77	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
78	51M7042	1	O-Ring	13.300 X 2.200 mm
79	AT431035	1	Wiring Harness	Loader Auxiliary
80	57M9940	1	Elec. Connector Accessory	-
81	57M7628	1	Electrical Connector Assy	-
82	38H5427	1	Fitting Plug	-
83	T77932	1	O-Ring	-
84	R44302	3	Tie Band	-
85	AT376347	1	Accumulator Kit	Uncharged Accumulator, INCLUDES AT196760
85	AT196760	1	Valve Kit	-
