Открытый узел

Single Lever Loader Control, Auxiliary Kit

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

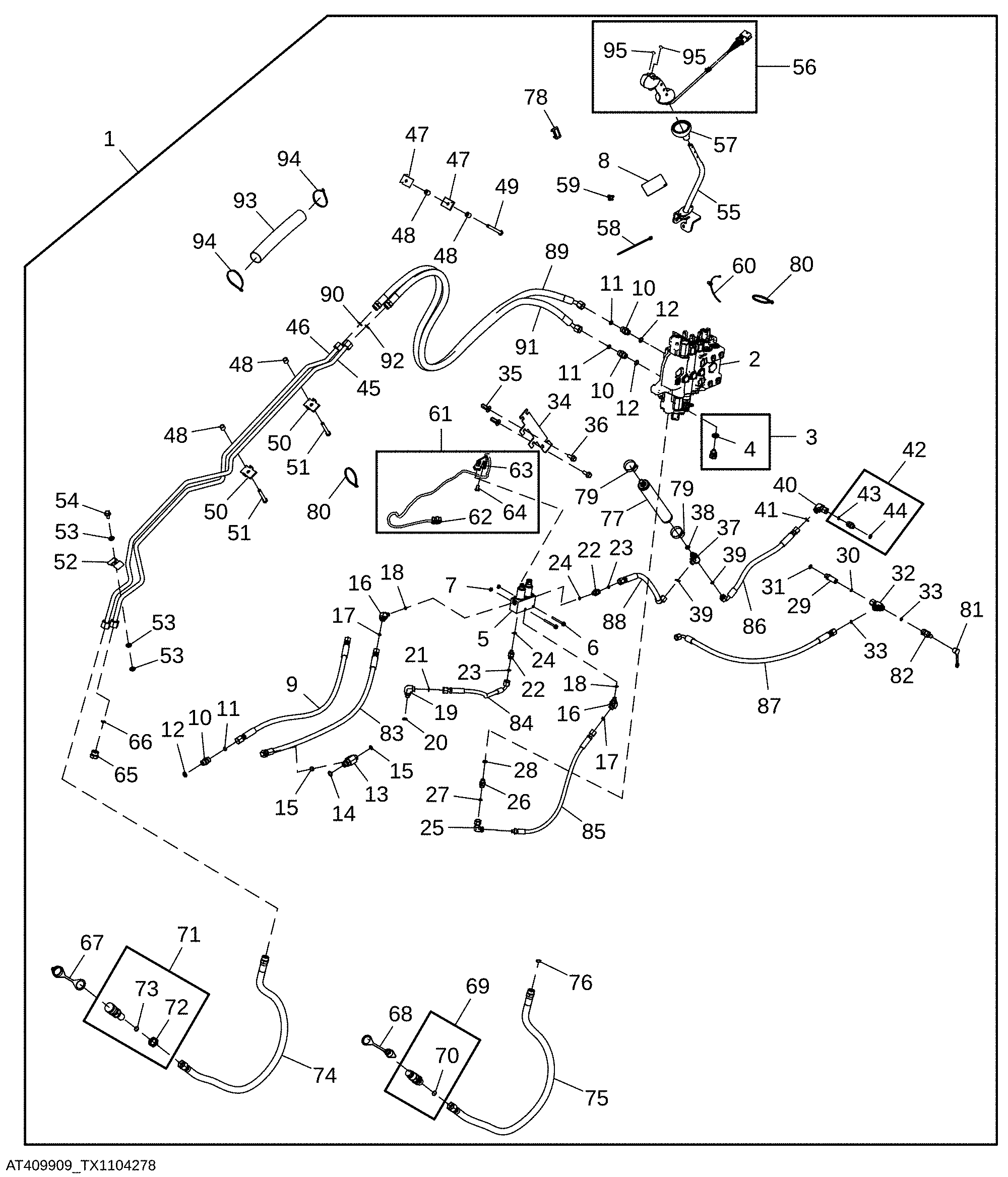

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT409909	1	Valve Kit	WHOLE GOODS
2	AT377478	1	Control Valve	5 Function Control Valve Components On Separate Page
3	AT78527	1	Fitting Plug	-
4	T183756	1	Seal	-
5	AT335739	1	Elec.Proportional Valve	EH Solenoid 20 Bar, INCLUDES AT368250
5	AT368250	1	Seal Kit	EH Stab Cartridge
5	AT386503	1	Elec.Proportional Valve	EH Solenoid 20 Bar, INCLUDES AT368250
5	AT368250	1	Seal Kit	EH Stab Cartridge
5	AT381636	1	Flow Control Hyd. Valve	INCLUDES AT386503 AND AT335739
6	19M8040	2	Screw	M6 X 60
7	14M7303	2	Flange Nut	M6
8	T289539	1	Label	Loader Control 3 Function
9	AT385524	1	Hydraulic Hose	Single Lever Loader Control (SLLC) Return
10	38H1161	3	Adapter Fitting	-
11	T77857	3	O-Ring	-
12	R26375	3	O-Ring	-
13	38H1024	1	Tee Fitting	-
14	R26375	1	O-Ring	-
15	T77857	2	O-Ring	-
16	38H1564	2	Elbow Fitting	-
17	T77613	2	O-Ring	-
18	R28782	2	O-Ring	-
19	38H1004	1	Elbow Fitting	-
20	R26448	1	O-Ring	-
21	T77613	1	O-Ring	-
22	38H1309	2	Adapter Fitting	-
23	T77613	2	O-Ring	-
24	R28782	2	O-Ring	-
25	62H1021	1	Adapter Fitting	Snap To Connect (STC) Adapter, INCLUDES AT193365
25	AT193365	1	Seal Kit	Snap To Connect (STC) Repair Kit
26	38H1160	1	Adapter Fitting	-
27	T77613	1	O-Ring	-
28	R26448	1	O-Ring	-
29	38H1212	1	Adapter Fitting	-
30	T77613	1	O-Ring	-
31	R26448	1	O-Ring	-
32	38H1030	1	Tee Fitting	-
33	T77613	2	O-Ring	-
34	T300004	1	Bracket	-
35	T148409	2	Nut	-
36	19M7785	2	Screw	M10 X 25
37	38H1023	1	Tee Fitting	-
38	R26448	1	O-Ring	-
39	T77613	2	O-Ring	-
40	38H1094	1	Elbow Fitting	-
41	T77613	1	O-Ring	-
42	AT384266	1	Check Valve	-
43	T77613	1	O-Ring	-
44	R26448	1	O-Ring	-
45	AT321155	1	Oil Line	Hydraulic Oil, ORDER AT432172
45	AT432172	1	Oil Line	Hydraulic Oil
46	AT321156	1	Oil Line	Hydraulic Oil
47	R46919	2	Half Clamp	-
48	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
49	19M8081	1	Cap Screw	M10 X 80
50	T159954	2	Clamp	-
51	19M7875	2	Cap Screw	M10 X 70
52	T217085	1	Clamp	-
53	24M7239	3	Washer	10.700 X 21 X 2.500 mm
54	19M7784	1	Screw	M10 X 20
55	AT386798	1	Lever	-
56	AT366718	1	Grip	RH
57	T279454	1	Boot	-
58	R44302	1	Tie Band	-
59	57M9940	1	Elec. Connector Accessory	-
60	T209627	1	Clamp	-
61	AT375601	1	Wiring Harness	Auxiliary Control Third Function
62	57M9817	1	Elec. Connector Housing	Third Function Loader Auxiliary, X65
62	R78065	4	Elec. Connector Terminal	-
63	R78065	2	Elec. Connector Terminal	-
63	57M8021	1	Electrical Connector Assy	Solenoid B, Y20
64	57M8022	1	Elec.Connect Locking Device	-
65	38H1148	2	Fitting Plug	-
66	T77932	2	O-Ring	-
67	T188880	1	Cap	-
68	T188879	1	Cap	-
69	AT312876	1	Hyd. Quick-Connect Coupler	INCLUDES T77932
70	T77932	1	O-Ring	-
71	KV11305	1	Hyd. Quick-Connect Coupler	-
72	T80306	1	Nut	-
73	T77932	1	O-Ring	-
74	AT309986	1	Hydraulic Hose	Fabricate
75	AT309934	1	Hydraulic Hose	Fabricate, INCLUDES T77932
76	T77932	1	O-Ring	-
77	AT376347	1	Accumulator Kit	Uncharged Accumulator, INCLUDES AT196760, T180944, T215216, T215217 AND T290050
77	AT196760	1	Valve Kit	INCLUDES T26209
77	T26209	1	Ring	-
77	T180944	1	Label	Accumulator English
77	T215216	1	Label	Accumulator French
77	T215217	1	Label	Accumulator Spanish
77	T290050	1	Label	Accumulator Russian
78	M115279	1	Plug	-
79	TY22468	2	Clamp	-
80	R44302	3	Tie Band	-
81	R77175	1	Cover	Dust
82	RE60701	1	Diagnostic Coupling	-
83	AT386468	1	Hydraulic Hose	Single Lever Loader Control (SLLC) Return W/ Pilots
84	AT385526	1	Hydraulic Hose	Single Lever Loader Control (SLLC) Pilot Cap Supply (A Port)
85	AT385527	1	Hydraulic Hose	Single Lever Loader Control (SLLC) Pilot Cap Supply (B Port)
86	AT404466	1	Hydraulic Hose	Single Lever Loader Control (SLLC) Supply
87	AT410485	1	Hydraulic Hose	Single Lever Loader Control (SLLC) Supply
88	AT403060	1	Hydraulic Hose	-
89	AT198260	1	Hydraulic Hose	Loader Third Function (Inboard)
90	T77932	1	O-Ring	-
91	AT198254	1	Hydraulic Hose	Loader Third Function, INCLUDES T77932
92	T77932	1	O-Ring	-
93	-	1	Part 107	MAKE FROM T78606, CTL 254 mm (10 in)
94	H77698	2	Tie Band	-
95	T264058	2	Push Button	-

Single Lever Loader Control, Auxiliary Kit

Нет текстового описания
