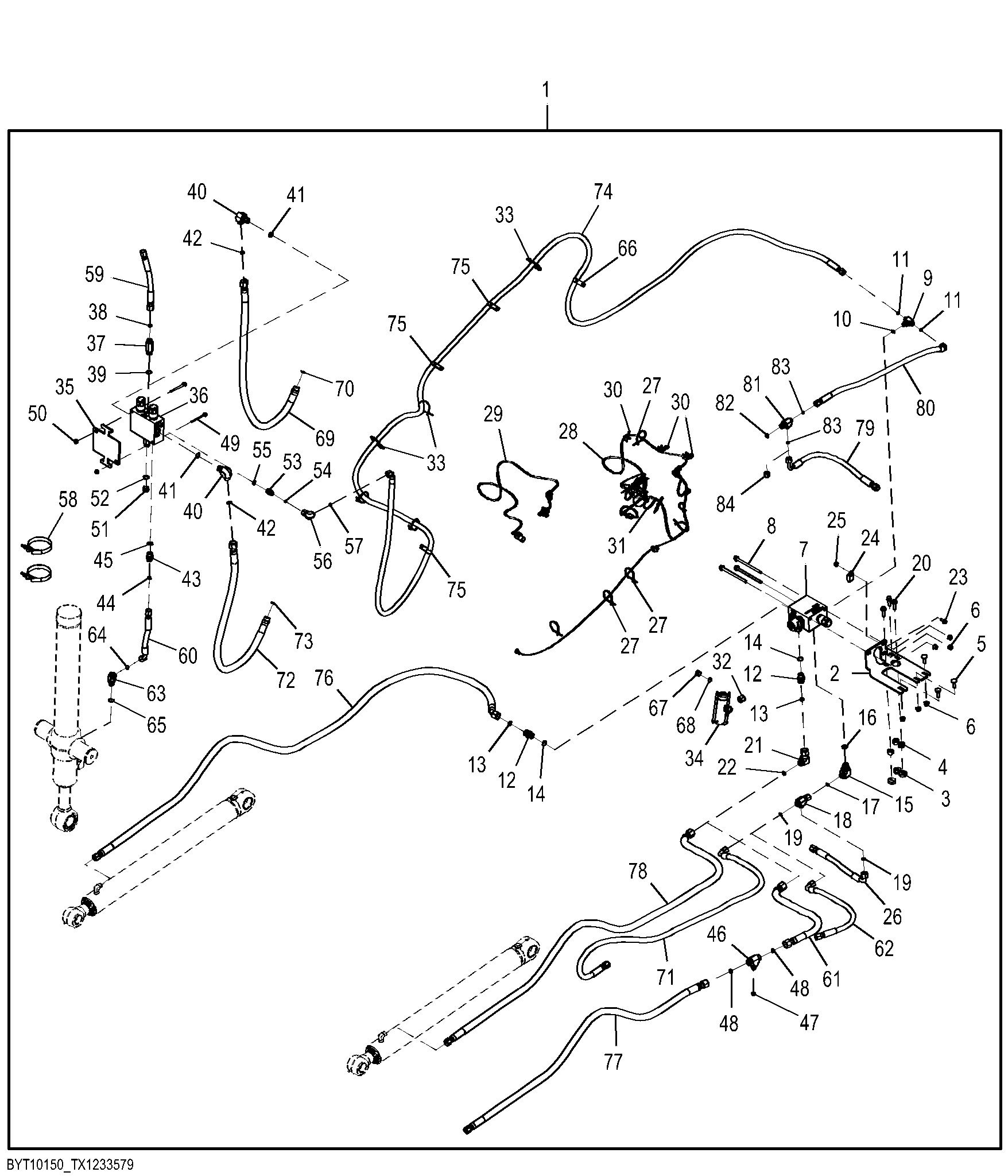

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	BYT10150	1	Valve Kit	Whole Goods
2	T386950	1	Bracket	-
3	T214426	3	Bushing	-
4	T285304	3	Spacer	-
5	03M7098	3	Bolt	M10 X 35
6	14M7296	6	Flange Nut	M10
7	AT472066	1	Solenoid Hydraulic Valve	Boom Anti-Drift Control Valve Components On Separate Page
7	AT333862	1	Solenoid Valve Coil	-
7	AT472290	1	Valve	-
7	AT472292	1	Seal Kit	-
7	AT472291	1	Valve	-
7	AT314329	1	Seal Kit	-
8	19M7958	3	Screw	M10 X 150
9	38H5061	1	Tee Fitting	-
10	51M7042	1	O-Ring	13.300 X 2.200 mm
11	T77613	2	O-Ring	-
12	38H5004	2	Adapter Fitting	-
13	T77932	2	O-Ring	-
14	51M7045	2	O-Ring	19.300 X 2.200 mm
15	38H5027	1	Elbow Fitting	-
16	51M7045	1	O-Ring	19.300 X 2.200 mm
17	T77857	1	O-Ring	-
18	38H5069	1	Tee Fitting	-
19	T77857	2	O-Ring	-
20	19M7835	3	Screw	M10 X 35
21	38H1096	1	Elbow Fitting	-
22	T77932	1	O-Ring	-
23	19M7866	1	Screw	M8 X 20
24	AH97280	1	Clip	-
25	14M7298	1	Flange Nut	M8
26	AT474871	1	Hydraulic Hose	Loader Valve Left Hand Boom Head Port to Boom Drift Valve Head Port
27	R44302	9	Tie Band	-
28	AT477954	1	Wiring Harness	Anti-Drift Kit Boom Valve Harness Components On Separate Page
29	AT477956	1	Wiring Harness	Anti-Drift Kit Auto Ride Jumper Harness Components On Separate Page
30	R44302	7	Tie Band	-
31	H77698	2	Tie Band	-
32	38H1416	1	Fitting	-
33	R44302	5	Tie Band	-
34	AT473081	1	Valve Cover	Float Switch End Cap
35	T391322	1	Bracket	Loader Bucket Anti-Drift Control Valve
36	AT473765	1	Flow Control Hyd. Valve	Loader Bucket Anti-Drift Control Valve Components On Separate Page
36	AT475744	1	Valve	-
36	AT314326	1	Seal Kit	-
36	AT475745	1	Valve	-
36	AT472292	1	Seal Kit	-
37	38H5240	1	Adapter Fitting	-
38	T77857	1	O-Ring	-
39	51M7045	1	O-Ring	19.300 X 2.200 mm
40	38H5018	2	Elbow Fitting	-
41	51M7045	2	O-Ring	19.300 X 2.200 mm
42	T77932	2	O-Ring	-
43	38H5076	1	Adapter Fitting	-
44	T77857	1	O-Ring	-
45	51M7045	1	O-Ring	19.300 X 2.200 mm
46	38H5520	1	Tee Fitting	-
47	51M7043	1	O-Ring	15.300 X 2.200 mm
48	T77932	2	O-Ring	-
49	19M8039	2	Screw	M8 X 80
50	14M7298	2	Flange Nut	M8
51	64H1019	1	Drain Plug	-
52	R26906	1	O-Ring	-
53	38H5037	1	Adapter Fitting	-
54	T77613	1	O-Ring	-
55	51M7042	1	O-Ring	13.300 X 2.200 mm
56	38H5145	1	Elbow Fitting	-
57	T77613	1	O-Ring	-
58	AT50924	2	Hose Clamp	-
59	AT476481	1	Hydraulic Hose	Bucket Drift Valve Head Port 2 to Bucket Fabricate
60	AT476482	1	Hydraulic Hose	Bucket Drift Valve Rod Port 2 to Bucket Cylinder Rod Port Fabricate
61	AT476484	1	Hydraulic Hose	Boom Drift Valve Rod Port 2A to Ride Control Rod Tee Fitting (Ride Control Equipped) Fabricate
62	AT476483	1	Hydraulic Hose	Boom Drift Valve Head Port to Ride Control Head Tee Fitting (Ride Control Equipped) L-Series Fabricate
62	AT476851	1	Hydraulic Hose	Boom Drift Valve Head Port to Ride Control Head Tee Fitting (Ride Control Equipped) K-Series Fabricate
63	38H5252	1	Adapter Fitting	-
64	T77857	1	O-Ring	-
65	51M7045	1	O-Ring	19.300 X 2.200 mm
66	57M9863	1	Clamp	-
67	64H1018	1	Drain Plug	-
68	R26375	1	O-Ring	-
69	AT471925	1	Hydraulic Hose	Bucket Head Tube to Bucket Drift Valve Head Port 1 Fabricate
70	T77932	1	O-Ring	-
71	AT476489	1	Hydraulic Hose	Boom Drift Valve Head Port to Left Boom Cylinder Head Port (without Ride Control) Fabricate
72	AT477025	1	Hydraulic Hose	Bucket Rod Tube to Bucket Drift Valve Rod Port 1 L-Series 410k Fabricate
72	AT477043	1	Hydraulic Hose	Bucket Rod Tube to Bucket Drift Valve Rod Port 1 310K 310SK Fabricate
73	T77932	1	O-Ring	-
74	AT476435	1	Hydraulic Hose	Bucket Drift Valve Drain Port to Boom Drift Valve Drain Port Fabricate
75	57M9863	3	Clamp	-
76	AT476433	1	Hydraulic Hose	Boom Drift Valve Rod Port 2B to Right Boom Cylinder Rod Port Fabricate
77	AT476485	1	Hydraulic Hose	Ride Control Rod Tee to Left Boom Cylinder Rod Port (Ride Control Equipped) Fabricate
78	AT476488	1	Hydraulic Hose	Boom Drift Valve Port 2A to Left Boom Cylinder Rod Port (without Ride Control) Fabricate
79	AT476486	1	Hydraulic Hose	Ride Control Drain Port to Hydraulic Reservoir L-Series Fabricate
79	AT476842	1	Hydraulic Hose	Ride Control Plumbing Rod Tee Fitting to Ride Control Valve Rod Port K-Series Fabricate Not Illustrated
80	AT471926	1	Hydraulic Hose	Boom Drift Valve Drain Port to Hydraulic Reservoir Ride Control Drain Port L-Series Fabricate
80	AT471926	1	Hydraulic Hose	Boom Drift Valve Drain Port to Hydraulic Reservoir Power Limiting Valve Drain Port 410k Fabricate
80	AT471926	1	Hydraulic Hose	Boom Drift Valve Drain Port to Hydraulic Reservoir Loader Coupler Drain Port 310K 310SK Fabricate
80	AT476008	1	Hydraulic Hose	Power Limiting Valve Drain Port to Hydraulic Reservoir 410k Fabricate Not Illustrated
81	38H5452	1	Tee Fitting	-
82	51M7043	1	O-Ring	15.300 X 2.200 mm
83	T77613	2	O-Ring	-
84	38H1415	1	Fitting	-
85	AT474869	1	Hydraulic Hose	Loader Valve Left Hand Boom Rod Port to Boom Drift Valve Rod Port 1 310SL HL 410L Fabricate Not Illustrated
85	AT477392	1	Hydraulic Hose	Loader Valve Left Hand Boom Rod Port to Boom Drift Valve Rod Port 1 310K 310SK 410k 310L 310SL Fabricate Not Illustrated
