Swing, Extend, and Intelligent System Planner Controllers

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT324156	1	Control Valve	NLA, ORDER AT320644
1	AT310450	1	Control Valve	NLA, ORDER AT320644
1	AT320644	1	Valve	ALSO ORDER (4) AN205077 SUB FOR AT311382, AT324156, AND AT310450
1	AT311382	1	Control Valve	NLA, ORDER AT320644
2	T227592	8	Rod	4 Valve Sections, USE WITH
2	T227597	8	Rod	3 Valve Sections, USE WITH
3	14M7491	8	Nut	M10
4	T227598	1	End Plate	With Orifice
5	T227596	1	End Plate	-
6	AT336646	1	Seal Kit	-
7	R10093	6	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
8	F37030228	1	O-Ring	56.744 X 3.531 mm (2-15/64" X 0.139")
9	R139897	2	O-Ring	21.895 X 2.616 mm (0.862" X 0.103")
10	T227599	1	Plate	-
11	R10093	4	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
12	T227600	4	Screw	-
13	AT336644	1	Multi-Functional Controller	Intelligent System Planner (ISP)
13	AT329876	1	Software	Software Available Through John Deere Custom Performance Website
14	T143167	2	O-Ring	3.683 X 1.778 mm (0.145" X 0.070")
15	19M8146	6	Screw	M5 X 16
16	AT336644	1	Multi-Functional Controller	Swing and Extend Distributed Function Control Unit (SWX)
16	AT329877	1	Software	Software Available Through John Deere Custom Performance Website
17	T143167	2	O-Ring	3.683 X 1.778 mm (0.145" X 0.070")
18	19M8146	6	Screw	M5 X 16
19	T384486	2	O-Ring	-
20	T384486	2	O-Ring	-
21	AN205077	4	Drain Plug	Includes O-Ring Not Illustrated

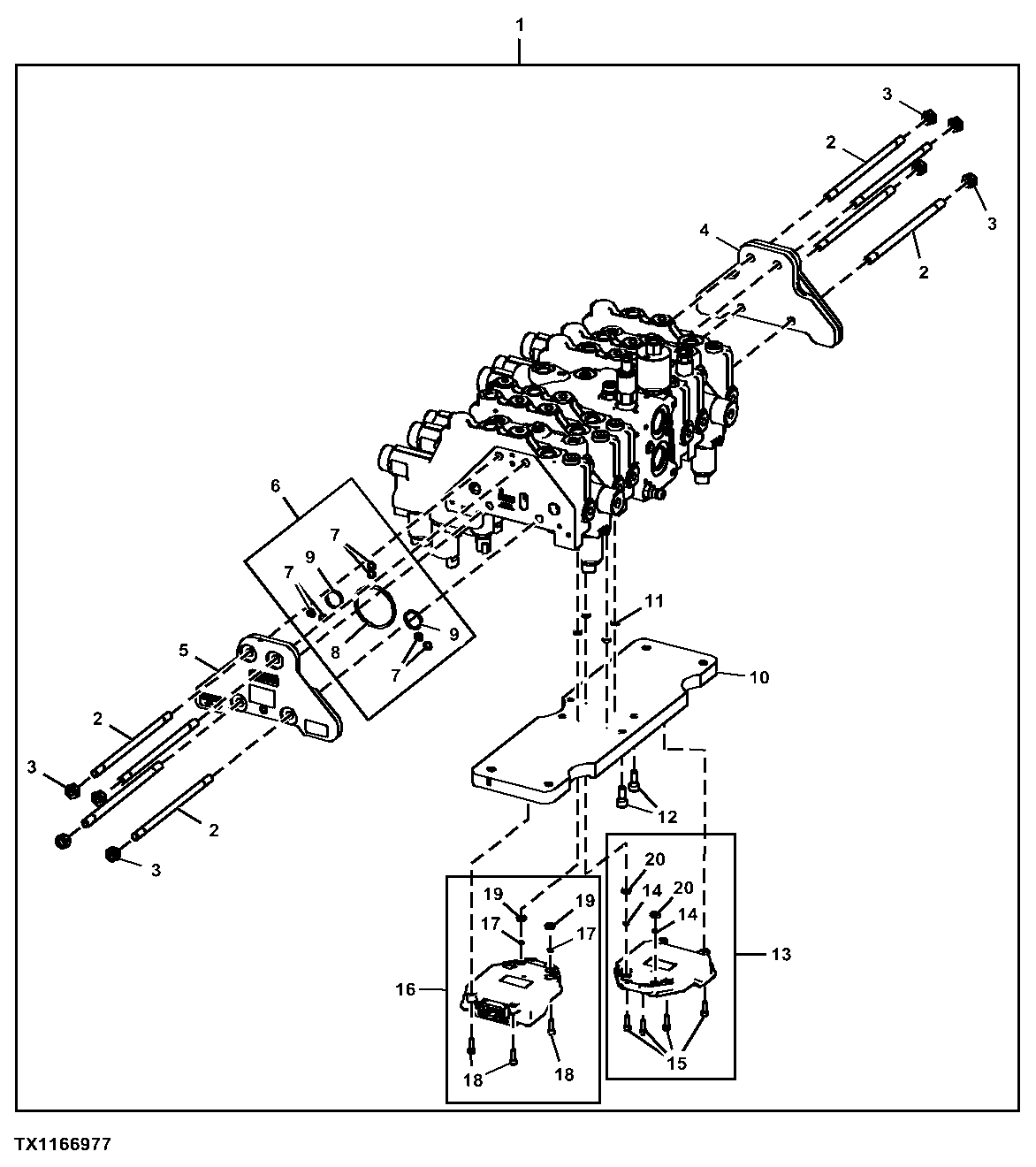

Swing, Extend, and Intelligent System Planner Controllers

Нет текстового описания
