Radiator, Hoses, Fan Shroud and Guard (Engine 4045TT094-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	03M7247	2	Bolt	M10 X 90
2	03M7307	4	Bolt	M10 X 25
4	14M7274	6	Nut	M10
5	14M7397	4	Lock Nut	M6
6	19M7008	2	Cap Screw	M8 X 10
7	19M7407	2	Cap Screw	M8 X 25
8	19M7922	5	Cap Screw	M8 X 40
9	19M7550	2	Cap Screw	M10 X 35
10	19M7572	2	Cap Screw	M10 X 45
11	19M7932	4	Cap Screw	M8 X 16
12	19M7863	4	Screw	M6 X 25
13	24M7024	5	Washer	9 X 28 X 3 mm
15	24M7238	12	Washer	8.700 X 17 X 2 mm
16	R191781	8	Hose Clamp	-
17	24M7239	8	Washer	10.700 X 21 X 2.500 mm
19	AH170895	2	Clamp	-
20	RE56098	2	Clamp	-
21	AT310335	1	Filler Cap	-
22	AT346878	1	Shroud	-
23	AT312426	1	Guard	-
25	AT320220	1	Tank	-
26	AT354811	1	Thermostatic Control Valve	SUB FOR AT320238
27	AT393357	1	Radiator	58.30 cm (22.953 in), Tank to Tank
27	AL155781	1	Drain Plug	With O-Ring Not Illustrated
27	L77581	1	O-Ring	14 X 2 mm (0.551" X 0.079"), Not Illustrated, FOR AL155781
27	AL176130	1	Drain Valve	w/ O-Rings Not Illustrated
27	R183409	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070"), Not Illustrated
27	R26286	1	O-Ring	10.516 X 1.829 mm (0.414" X 0.072"), Not Illustrated
27	R98502	1	Ring	14.400 X 2 mm (0.567" X 0.079"), Not Illustrated
28	21M7246	3	Screw	M6 X 16
29	T214276	1	Adapter Fitting	-
29	L169999	1	O-Ring	9.00 mm X 5.00 mm X 3.00 mm (0.354 in X 0.197 in X 0.118 in)
29	L209135	1	O-Ring	27 X 2.800 mm (1-1/16" X 0.110"), SUB FOR L169998
30	AT323152	1	Guard	-
31	AT324273	1	Ground Cable	Fastener
32	AT334333	1	Radiator Hose	-
33	14H856	1	Nut	1/2"
34	24H1789	1	Washer	17/32" X 1-1/4" X 0.105"
35	R26448	1	O-Ring	-
36	T227450	1	Drain Plug	-
37	AT355452	1	Adapter Fitting	-
38	R29936	3	O-Ring	-
39	AT43223	1	Elbow Fitting	-
40	-	2	Part 44	MAKE FROM AT305126, CTL 57.91 cm (22.800 in)
41	R524513	3	Hose Clamp	-
42	-	4	Part 46	MAKE FROM TY22566, CTL 152.40 cm (5.000 ft), 71.32 cm (28.080 in), 68.58 cm (27.000 in), AND 43.28 cm (17.040 in)
43	-	5	Part 47	MAKE FROM T61861, CTL 54.86 cm (21.600 in), 18.29 cm (7.200 in), 10.06 cm (3.960 in), AND 70.10 mm (2.760 in)
45	H65405	1	Fitting	-
46	KV25173	2	Isolator	-
47	T251567	1	Clamp	SUB FOR L154742
48	MT2485	5	Plug	-
50	R35668	1	Clamp	-
51	R46667	3	Clamp	-
53	T174427	7	Clamp	-
54	RE223627	1	Hose Fitting	-
55	51M7045	1	O-Ring	19.300 X 2.200 mm
56	T216248	2	Isolator	-
57	T216350	2	Plate	-
58	T216620	1	Radiator Hose	-
59	T216877	1	Isolator	-
60	T216934	1	Radiator Hose	-
62	T213481	1	Angle	-
64	T225322	1	Hose	-
65	T225523	1	Radiator Hose	-
66	T230730	1	Radiator Hose	-
67	T225865	1	Clamp	-
68	T226097	1	Isolator	-
69	T226132	1	Deflector	-
70	T230732	1	Radiator Hose	-
71	N221912	1	Fitting	-
73	AH89557	1	Clip	-
74	T149597	1	Clamp	-
75	-	1	Part 73	MAKE FROM TY22330, CTL 40.54 cm (15.960 in)
76	AT318095	1	Angle	-

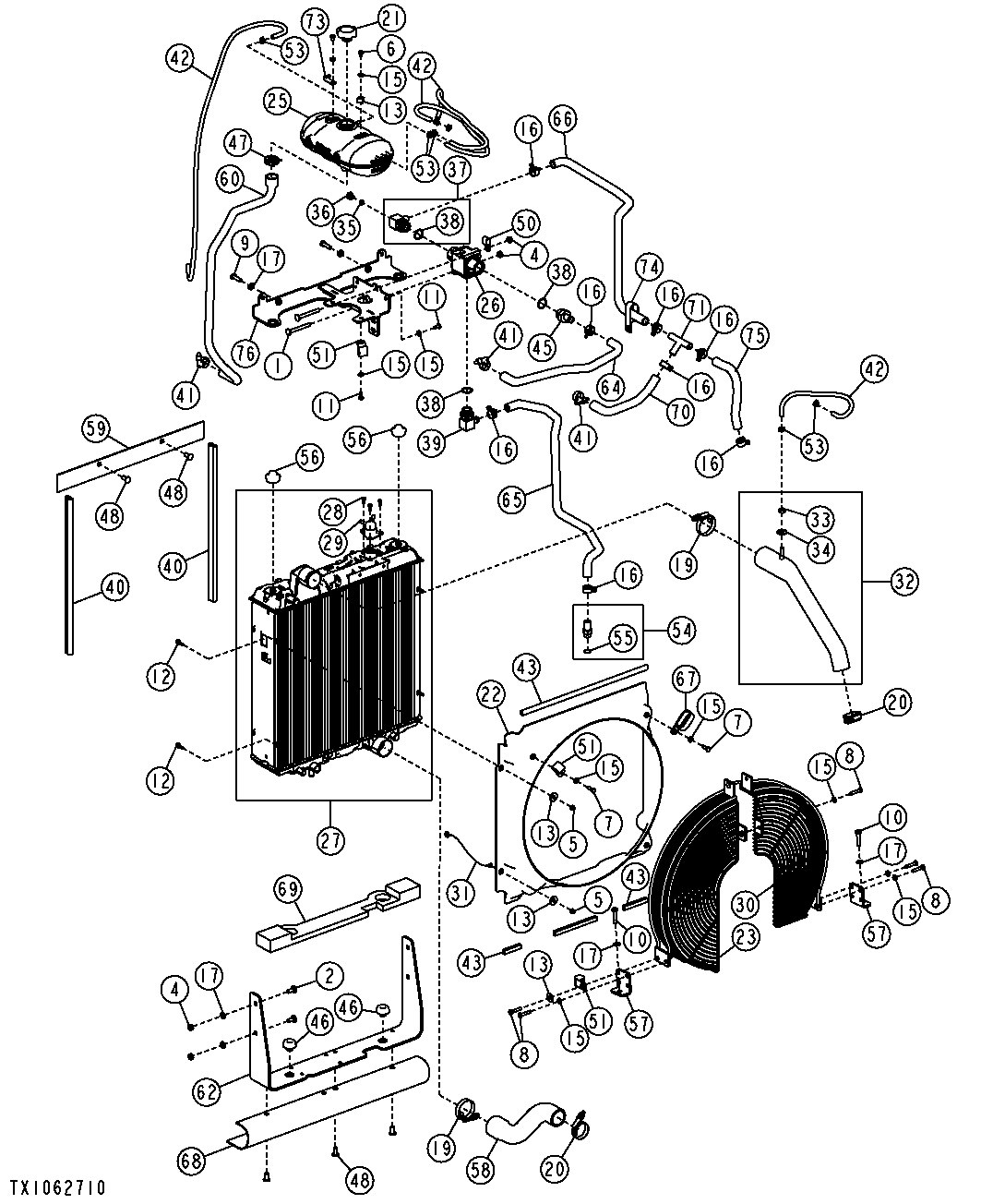

Radiator, Hoses, Fan Shroud and Guard (Engine 4045TT094-)
