Noise Reduction Hood Assembly w/ Exhaust Extension

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT370757	1	Latch	(ALSO ORDER T259844 ) (SUB FOR AT196358)
2	T201591	1	Bracket	-
3	T165916	1	Louver	(LH)
4	19M7935	6	Cap Screw	M10 X 55
5	24M7239	6	Washer	10.700 X 21 X 2.500 mm
6	14M7303	38	Flange Nut	M6
7	T165915	1	Louver	(RH)
8	T188642	1	Grommet	-
10	T216356	1	Acoustical Upholstery	(RH)
11	T216354	1	Acoustical Upholstery	(RH)
12	T255486	1	Bracket	(SUB FOR T184787)(RH)
13	T255487	1	Bracket	(SUB FOR T184788)(LH)
14	T216355	1	Acoustical Upholstery	(LH)
15	T216353	1	Acoustical Upholstery	(LH)
16	T217116	19	Retainer	-
17	T230467	11	Hanger	-
18	T230468	11	Hanger	-
19	T226954	1	Acoustical Upholstery	-
20	T216348	1	Acoustical Upholstery	(RH)
21	19M7775	12	Screw	M6 X 16
22	T211122	1	Louver	(LH)
23	19M7863	12	Screw	M6 X 25
24	21M7267	24	Screw	M6 X 20
25	T165911	2	Bushing	-
26	19M9699	4	Screw	M5 X 16
27	T183773	4	Nut	-
28	11M7059	2	Cotter Pin	3.200 X 20 mm
29	19M8637	6	Cap Screw	M10 X 40
30	T165997	2	Insert	-
31	T211121	1	Louver	(RH)
32	T216357	1	Acoustical Upholstery	(LH)
33	RE52087	1	Clamp	-
34	AT312126	1	Muffler Extension	-
35	24M7101	6	Washer	11 X 34 X 3 mm
36	24M7239	2	Washer	10.700 X 21 X 2.500 mm
37	AT325678	1	Field Installation Kit	NLA, ORDER AT438402
37	AT438402	1	Guard	Components On Separate Page
38	AT323841	1	Shield	-
39	R124347	6	Washer	-
40	T148410	6	Nut	-
41	AT323237	1	Panel	(RH)
42	AT323238	1	Panel	(LH)
43	AT324645	1	Hood	-
44	AT336185	1	Shield	-

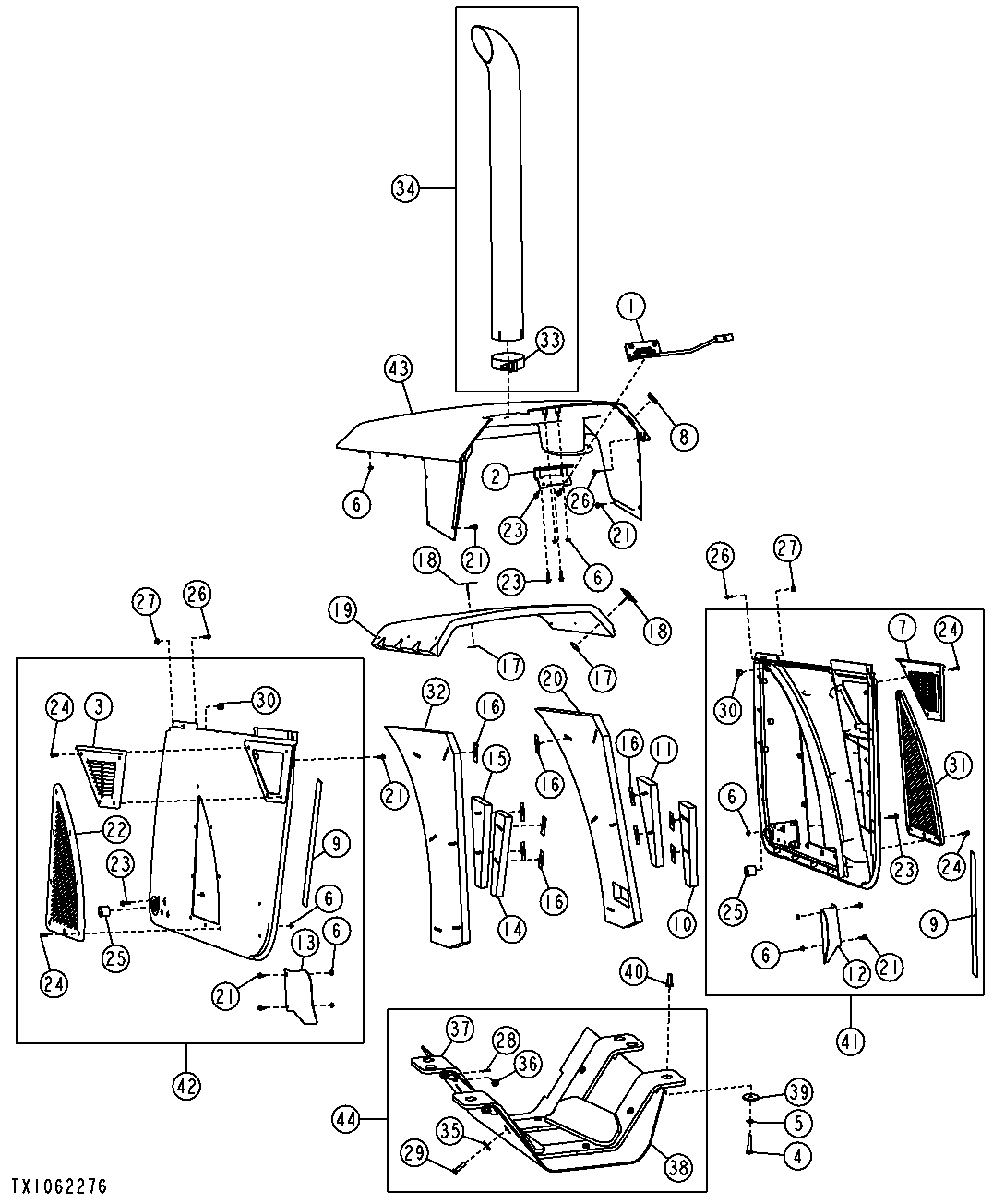

Noise Reduction Hood Assembly w/ Exhaust Extension
