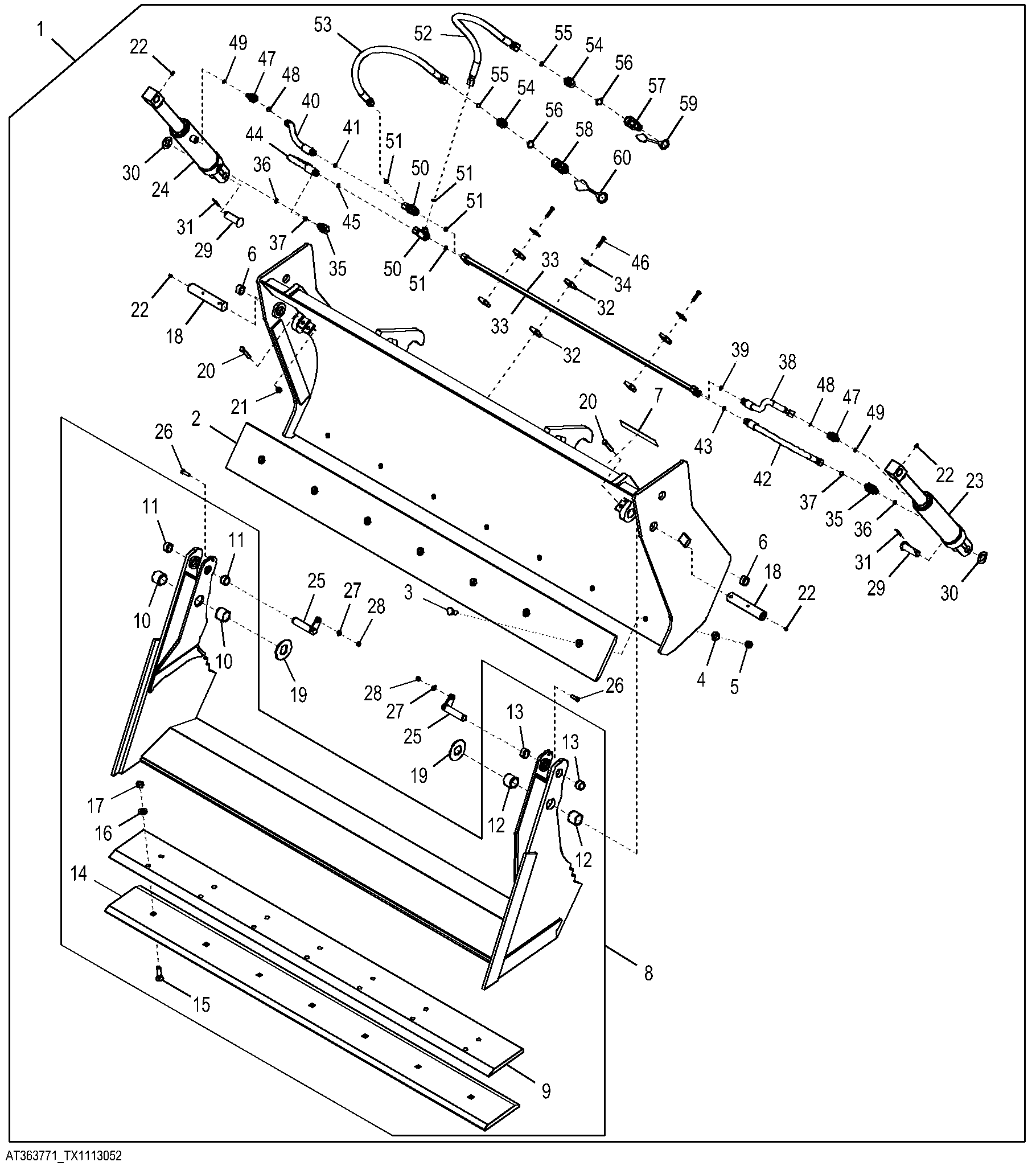

Multipurpose Coupler Bucket Kit, 2.18 m (86 in)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT363771	1	Multi-Purpose Bucket	Components On Separate Page, NLA; ORDER AT448176
2	T166454	1	Cutting Edge	213.00 cm (83.858 in.)
3	09H1776	7	Bolt	5/8" X 1-3/4"
4	24M7241	7	Washer	17 X 34 X 4 mm
5	14H1039	7	Nut	5/8"
6	T166433	1	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
7	T213143	1	Label	Worksite Pro
8	AT186411	1	Hinge	Weldment
9	T166455	1	Cutting Edge	218.40 cm (85.984 in.)
10	T128533	2	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
11	T166433	2	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
12	T128533	2	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
13	T166433	2	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
14	T150517	1	Cutting Edge	218.40 cm (85.984 in.)
15	09H1759	7	Bolt	5/8" X 2-1/4"
16	24M7241	7	Washer	17 X 34 X 4 mm
17	14H1039	7	Nut	5/8"
18	T167059	2	Pin	-
19	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
20	19H2106	2	Cap Screw	7/16" X 2-3/4"
21	K40006	2	Lock Nut	-
22	JD7844	4	Lubrication Fitting	-
23	AH210737	1	Hydraulic Cylinder	Components Listed On Separate Page
24	AH210737	1	Hydraulic Cylinder	Components Listed On Separate Page
25	AT190900	2	Pin	-
26	19H1732	2	Cap Screw	3/8" X 1-1/4"
27	24M7239	2	Washer	10.700 X 21 X 2.500 mm
28	T54568	2	Lock Nut	-
29	T191318	2	Pin Fastener	25.370 X 78.250 mm (0.999" X 3.081")
30	24H1138	2	Washer	1-1/16" X 2" X 0.134"
31	11H218	2	Cotter Pin	3/16" X 1-1/2"
32	H135156	6	Clamp	-
33	AT448032	2	Tube	SUB FOR AT311143
34	H121168	3	Plate	-
35	38H1314	2	Elbow Fitting	-
36	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
37	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
38	AT190628	1	Hydraulic Hose	13/16" X 241 mm (9-1/2") X 13/16", Fabricate
39	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	AT190628	1	Hydraulic Hose	13/16" X 241 mm (9-1/2") X 13/16", Fabricate
41	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
42	AT190702	1	Hydraulic Hose	13/16" X 438 mm (17-1/4") X 13/16", Fabricate
43	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
44	AT190702	1	Hydraulic Hose	13/16" X 438 mm (17-1/4") X 13/16", Fabricate
45	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
46	19H1906	3	Cap Screw	5/16" X 1-1/2"
47	38H1521	2	Elbow Fitting	-
48	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
49	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
50	38H1031	2	Tee Fitting	-
51	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
52	AT309936	1	Hydraulic Hose	-
53	AT309936	1	Hydraulic Hose	-
54	38H1175	2	Adapter Fitting	-
55	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
56	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
57	AT312470	1	Hyd. Quick-Connect Coupler	Male
58	KV14216	1	Hyd. Quick-Connect Coupler	Female
59	T188880	1	Cap	Female
60	T188879	1	Cap	Male

Multipurpose Coupler Bucket Kit, 2.18 m (86 in)
