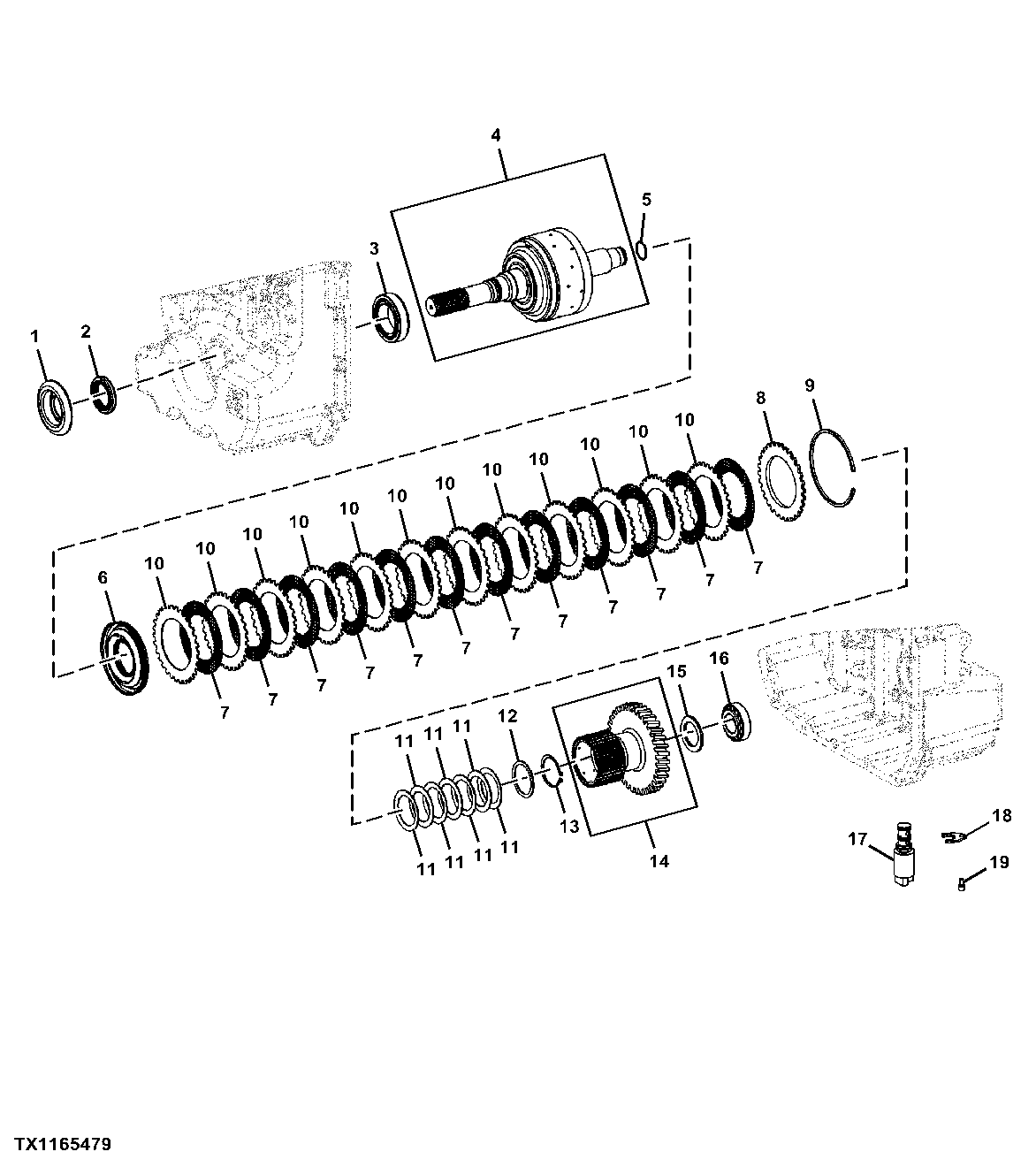

Mechanical Front Wheel Drive Clutch Assembly

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T218504	1	Dust Shield	-
2	AT179466	1	Seal	NLA; ORDER AT467975; ALSO ORDER T218504
2	AT467975	1	Seal	-
3	AT435599	1	Tapered Roller Bearing	SUB FOR AT339914
4	AT339913	1	Modular Clutch	Drum and Shaft Only
5	T158742	1	Ring	-
6	AT364084	1	Piston	ALSO ORDER T158743 AND T158739
6	T158743	1	Ring	USE WITH AT364084
6	T158739	1	Ring	USE WITH AT364084
7	T164626	12	Disk	NLA; ORDER AT467975
7	T381291	12	Disk	-
8	T161147	1	Plate	-
9	T294554	1	Snap Ring	TK = 3.25 mm, SUB FOR T261416 AND T229368
9	T294557	1	Snap Ring	TK = 4.00 mm, SUB FOR T261408 AND T161183
9	T294556	1	Snap Ring	TK = 3.75 mm, SUB FOR T261415 AND T229375
9	T294555	1	Snap Ring	TK = 3.50 mm, SUB FOR T261410 AND T158778
9	T294552	1	Snap Ring	TK = 2.75 mm, SUB FOR T261412 AND T229386
9	T294551	1	Snap Ring	TK = 2.50 mm, SUB FOR T261413 AND T159569
9	T261409	1	Snap Ring	TK = 2.25 mm, SUB FOR T229383
9	T261414	1	Snap Ring	TK = 2.00 mm, SUB FOR T159570
9	T294553	1	Snap Ring	TK = 3.00 mm, SUB FOR T261411 AND T159568
10	T158801	12	Clutch Plate	-
11	T229357	7	Disk Spring	-
12	T229372	1	Thrust Washer	-
13	40M7166	1	Snap Ring	-
14	T229407	1	Hub	-
15	T229356	1	Thrust Washer	-
16	T341152	1	Tapered Roller Bearing	SUB FOR T158793
17	AT310584	1	Solenoid Hydraulic Valve	MFWD, INCLUDES R104556, R104555 AND R104554
17	R104556	1	Ring	-
17	R104555	1	Ring	-
17	R104554	1	Ring	-
18	T229343	1	Plate	-
19	T380147	1	Cap Screw	-

Mechanical Front Wheel Drive Clutch Assembly
