Открытый узел

Loader Hydraulic Kit, Third Function

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

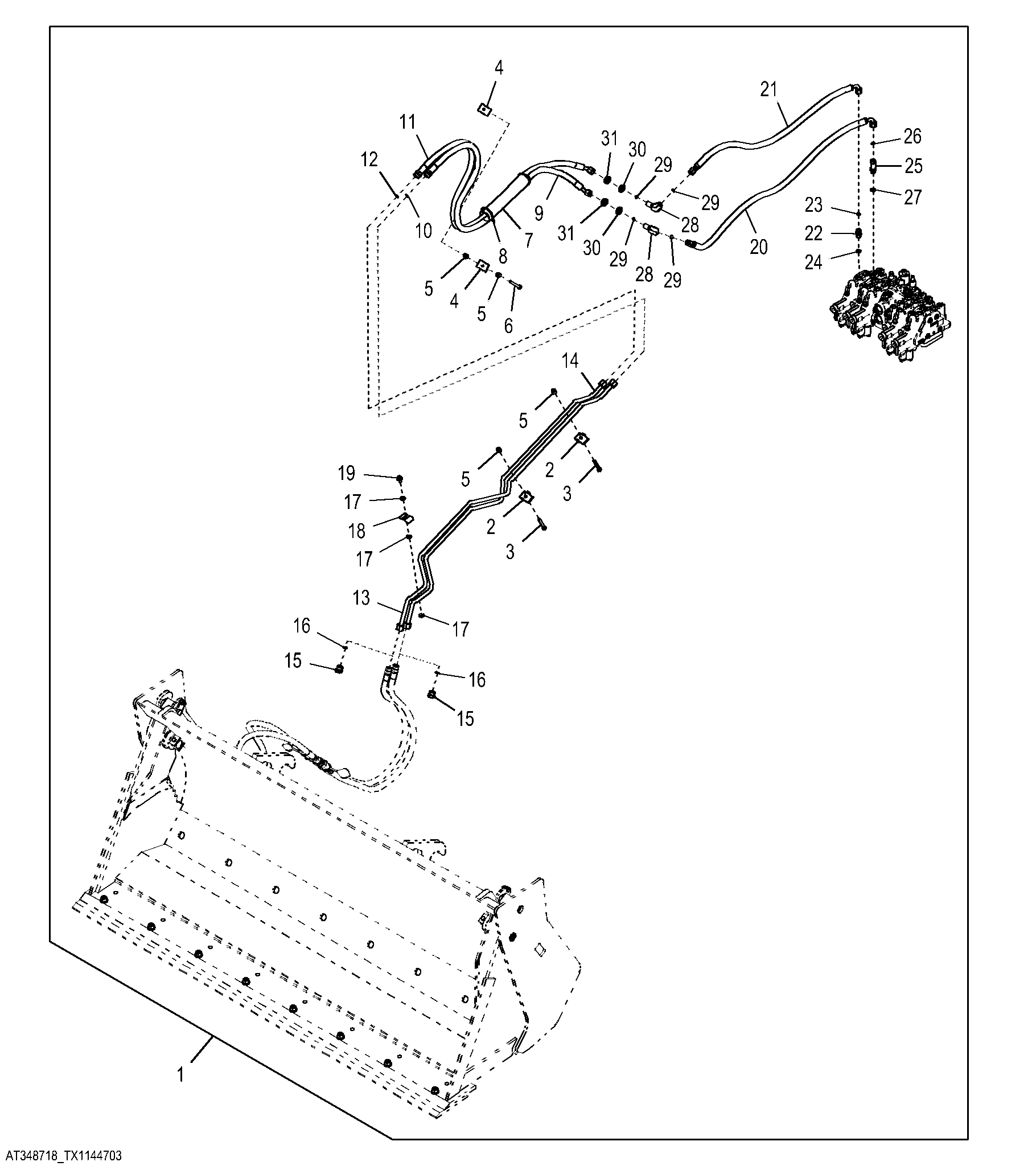

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T223966	1	Label	3-Function, Loader Control
1	AT348718	1	Field Installation Kit	Auxiliary Hydraulic Line Kit WHOLE GOODS, INCLUDES T223966
2	T159954	2	Clamp	-
3	19M7875	2	Cap Screw	M10 X 70
4	R46919	2	Half Clamp	-
5	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
6	19M8081	1	Cap Screw	M10 X 80
7	-	1	Part 8	MAKE FROM T78606 CTL, 254.00 mm (10.00 in)
8	H77698	2	Tie Band	-
9	AT198254	1	Hydraulic Hose	Hydraulic Loader, Third Function, INCLUDES T77932
9	AT321157	1	Hydraulic Hose	Hydraulic Loader, Third Function Use With Tool Carrier, INCLUDES T77932
10	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
11	AT198260	1	Hydraulic Hose	Fabricate Loader Third Function, INCLUDES T77932
11	AT321160	1	Hydraulic Hose	Fabricate Loader Third Function Use With Tool Carrier, INCLUDES T77932
12	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
13	AT432172	1	Oil Line	Hydraulic Oil, SUB FOR AT321155
14	AT321156	1	Oil Line	Hydraulic Oil
15	38H1148	2	Fitting Plug	-
16	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
17	24M7239	3	Washer	10.700 X 21 X 2.500 mm
18	T217085	1	Clamp	-
19	19M7784	1	Screw	M10 X 20
20	AT311777	1	Hydraulic Hose	Loader Auxiliary Supply
21	AT311778	1	Hydraulic Hose	Loader Auxiliary Return
22	38H1161	1	Adapter Fitting	-
23	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
24	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
25	38H1213	1	Adapter Fitting	-
26	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
27	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
28	38H1323	2	Elbow Fitting	-
29	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
30	24M7396	2	Washer	21 X 34 X 3 mm
31	38H5092	2	Nut	13/16"

Loader Hydraulic Kit, Third Function

Нет текстового описания
