Открытый узел

Loader and Third Function Hydraulics, Right Side

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7662	1	Cap Screw	M10 X 30
2	19M7658	2	Cap Screw	M10 X 50
2	19M7875	2	Cap Screw	M10 X 70
3	19M7938	1	Cap Screw	M10 X 20
4	19M8081	1	Cap Screw	M10 X 80
5	24M7239	6	Washer	10.700 X 21 X 2.500 mm
6	24M7396	4	Washer	21 X 34 X 3 mm
7	28H3381	5	Spacer	0.493" X 0.675" X 5/8"
8	38H5092	4	Nut	13/16"
9	38H1005	1	Elbow Fitting	-
9	38H1012	1	Elbow Fitting	Use With Tool Carrier
10	R26375	5	O-Ring	-
11	T77857	13	O-Ring	-
12	38H1148	2	Fitting Plug	-
13	T77932	8	O-Ring	-
14	38H1161	2	Adapter Fitting	-
15	38H1213	2	Adapter Fitting	-
16	38H1323	4	Elbow Fitting	-
17	14M7274	1	Nut	M10
18	AT188560	1	Hydraulic Hose	Fabricate
18	AT321153	1	Hydraulic Hose	Use With Tool Carrier Fabricate
19	AT198254	1	Hydraulic Hose	-
19	AT321157	1	Hydraulic Hose	Use With Tool Carrier
20	AT321158	1	Hydraulic Hose	Use With Tool Carrier
20	AT198257	1	Hydraulic Hose	-
21	AT198258	1	Hydraulic Hose	-
21	AT321159	1	Hydraulic Hose	Use With Tool Carrier
22	AT198260	1	Hydraulic Hose	Fabricate
22	AT321160	1	Hydraulic Hose	Use With Tool Carrier Fabricate
23	AT311775	1	Hydraulic Hose	13/16" X 1065 mm (42") X 13/16"
24	AT311776	1	Hydraulic Hose	13/16" X 1035 mm (40-3/4") X 13/16"
25	AT311777	1	Hydraulic Hose	13/16" X 1153 mm (45-1/2") X 13/16"
26	AT311778	1	Hydraulic Hose	13/16" X 1012 mm (39-3/4") X 13/16"
27	AT321152	1	Oil Line	-
29	AT321154	1	Oil Line	-
30	AT321155	1	Oil Line	-
31	AT321156	1	Oil Line	-
32	AR85327	1	Clamp	-
33	R46919	4	Half Clamp	-
34	T105773	1	Guide	-
35	-	2	Part 41	(MAKE FROM T78606)(CTL, 10" (254MM))
36	T159954	4	Clamp	-
37	T209685	1	Bracket	-
38	T215395	1	Hose Clamp	-
39	T217085	2	Clamp	-
40	AT173129	1	Hydraulic Hose	7/8" X 1226 mm (48-1/4") X 1"
41	AT348718	1	Field Installation Kit	Third Function
42	19M7784	1	Screw	M10 X 20, (SUB FOR 19M7938, THIS APPLICATION)

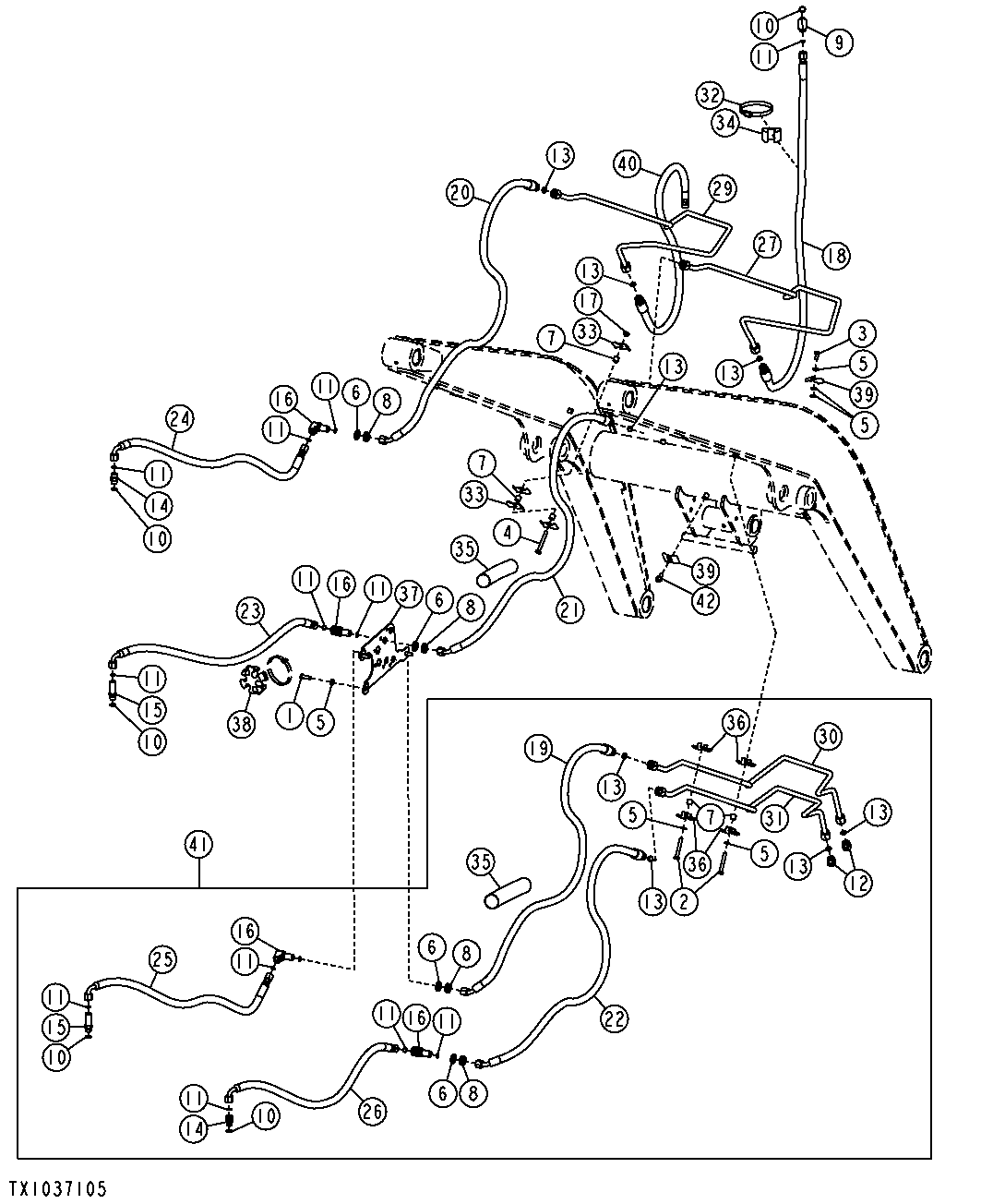

Loader and Third Function Hydraulics, Right Side
