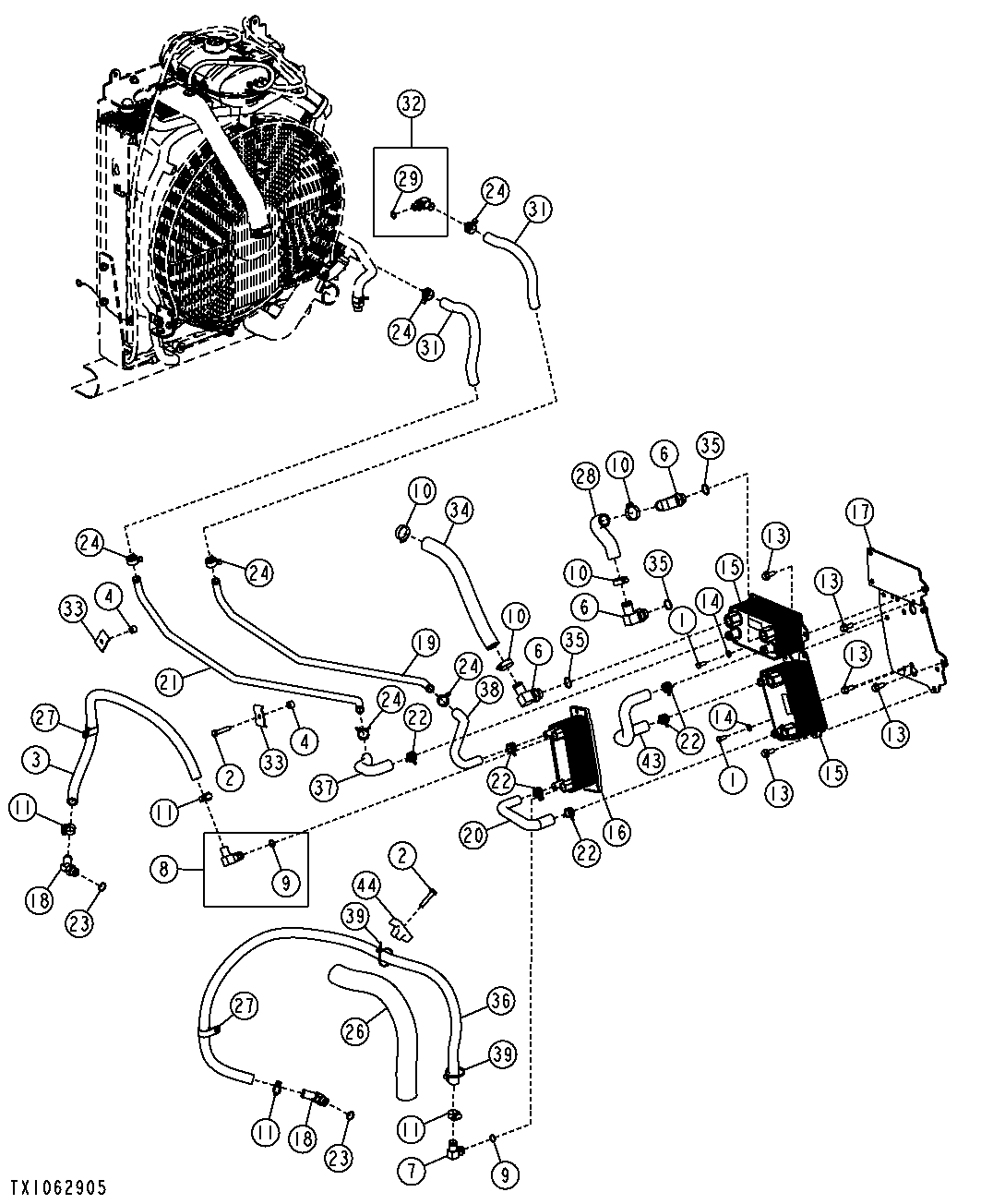

Hydraulic Oil Cooler and Hoses (Engine 4045TT094)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19M7881	3	Screw	M8 X 20
2	19M8600	2	Cap Screw	M10 X 50
3	-	1	Part 3	(MAKE FROM T78497)(CTL 3.8')
4	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
6	AR68999	3	Elbow Fitting	-
7	AT193927	1	Hose Fitting	SUB FOR AT118619
8	AT193927	1	Hose Fitting	-
9	R26375	2	O-Ring	-
10	AT300153	4	Hose Clamp	-
11	AT301917	4	Hose Clamp	-
13	19M7785	9	Screw	M10 X 25
14	24M7238	14	Washer	8.700 X 17 X 2 mm
15	AT318085	2	Oil Cooler	-
15	AT349656	2	Oil Cooler	-
16	RE201108	1	Oil Cooler	-
17	AT369010	1	Plate	SUB FOR AT349278
18	AT324059	2	Elbow Fitting	-
19	AT330459	1	Tube	-
20	T223521	1	Hose	-
20	T240445	1	Hose	-
21	AT334340	1	Tube	-
22	R117721	6	Clamp	-
23	R26906	2	O-Ring	-
24	R191781	6	Hose Clamp	SUB FOR T149597
26	-	1	Part 25	(MAKE FROM XPS-B-35)(CTL 550 MM)
27	T162675	2	Clamp	-
28	T216968	1	Hose	-
29	51M7043	1	O-Ring	15.300 X 2.200 mm
31	-	2	Part 29	(MAKE FROM TY22330)(CTL)
32	AH206095	1	Elbow Fitting	-
33	R46919	2	Half Clamp	-
34	-	1	Part 32	(MAKE FROM TY22556)(CTL 1.375')
35	U12547	3	O-Ring	-
36	-	1	Part 34	(MAKE FROM T78497)(CTL 4.5')
37	T223708	1	Hose	-
37	T240404	1	Hose	-
38	T223564	1	Hose	-
39	R44302	4	Tie Band	-
43	AT349463	1	Hose	-
44	T52978	1	Clamp	-
