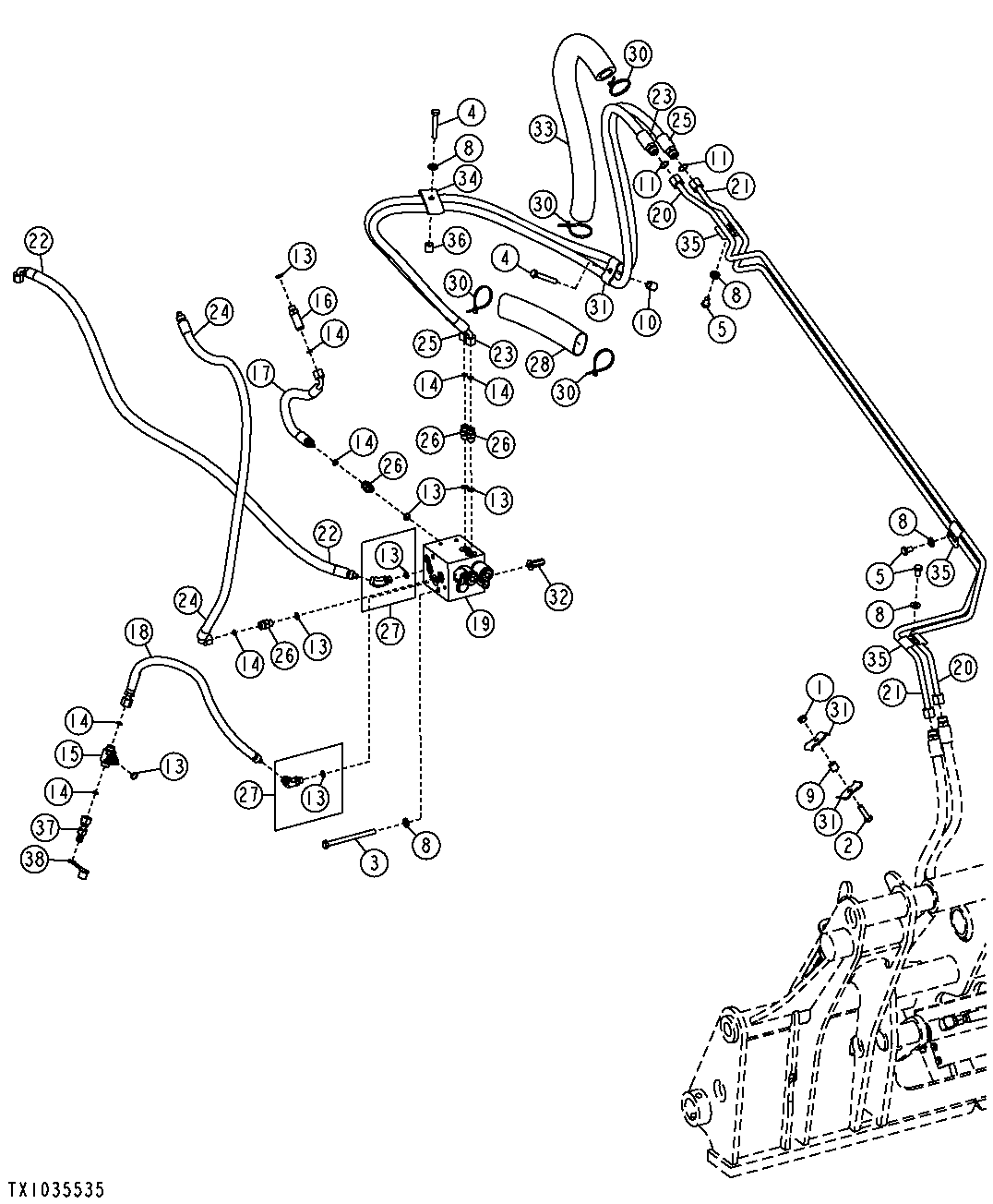

Hydraulic Front Coupler Lines and Hoses (Engine TT094)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	1	Nut	M10
2	19M7550	1	Cap Screw	M10 X 35
3	19M7638	2	Cap Screw	M10 X 130
4	19M7742	2	Cap Screw	M10 X 65
5	19M8324	3	Cap Screw	M10 X 16
8	24M7239	6	Washer	10.700 X 21 X 2.500 mm
9	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
10	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
11	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
13	R26448	8	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
14	T77613	7	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
15	38H1016	1	Tee Fitting	-
16	38H1212	1	Adapter Fitting	-
17	AT309743	1	Hydraulic Hose	Fabricate
18	AT339270	1	Hydraulic Hose	Fabricate
19	AT312547	1	Solenoid Hydraulic Valve	-
20	AT321189	1	Oil Line	-
21	AT321190	1	Oil Line	-
22	AT322326	1	Hydraulic Hose	Fabricate
23	AT308506	1	Hydraulic Hose	17.4752" X 1993 mm (78-1/2") X 13/16", Fabricate
24	AT309742	1	Hydraulic Hose	Fabricate
25	AT311651	1	Hydraulic Hose	17.4752" X 2044 mm (80-1/2") X 13/16", Fabricate
26	38H1160	4	Adapter Fitting	-
27	62H1053	2	Adapter Fitting	-
28	-	1	Part 25	(MAKE FROM <service-part qty="1">T78606</service-part>)(CTL 254MM, 10 INCHES)
30	R44302	4	Tie Band	-
31	R46919	3	Half Clamp	-
32	T148409	2	Nut	M10
33	T185089	1	Sleeve	-
34	T190979	1	Half Clamp	-
35	T217085	2	Clamp	-
36	28H1522	1	Spacer	0.493" X 0.675" X 11/16"
37	RE60701	1	Diagnostic Coupling	-
38	R77175	2	Cover	-
