Hydraulic Front Coupler Lines and Hoses (Engine 4045HT054, 4045HL287, 4045HL288)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	1	Nut	M10
2	19M7550	1	Cap Screw	M10 X 35
3	19M7638	2	Cap Screw	M10 X 130
4	19M7742	1	Cap Screw	M10 X 65
5	19M8324	3	Cap Screw	M10 X 16
6	24M7239	5	Washer	10.700 X 21 X 2.500 mm
7	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
8	28H3383	1	Bushing	0.493" X 0.675" X 3/4"
9	38H1004	1	Elbow Fitting	-
10	R26448	8	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	T77613	5	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	38H1016	1	Tee Fitting	-
13	38H1212	1	Adapter Fitting	-
14	62H1053	2	Adapter Fitting	-
15	AT309742	1	Hydraulic Hose	Fabricate
16	AT312547	1	Solenoid Hydraulic Valve	-
17	AT321189	1	Oil Line	-
18	AT321190	1	Oil Line	-
19	AT339270	1	Hydraulic Hose	Fabricate
20	38H1160	1	Adapter Fitting	-
21	AT349488	1	Hydraulic Hose	Fabricate
22	AT349489	1	Hydraulic Hose	Fabricate
23	AT349492	1	Hydraulic Hose	Fabricate
24	AT349493	1	Hydraulic Hose	17.4752" X 336 mm (13-1/4") X 17.4752", Fabricate
25	R44302	4	Tie Band	-
26	R46919	3	Half Clamp	-
27	RE60701	1	Diagnostic Coupling	-
28	T148409	2	Nut	-
29	T185089	2	Sleeve	-
30	-	1	Part 30	MAKE FROM T82659 CTL, 534.00 mm (21.0 in)
31	T217085	3	Clamp	-
32	R77175	1	Cover	-
33	-	1	Part 33	STC
34	-	1	Part 34	STC
35	T77857	2	O-Ring	-

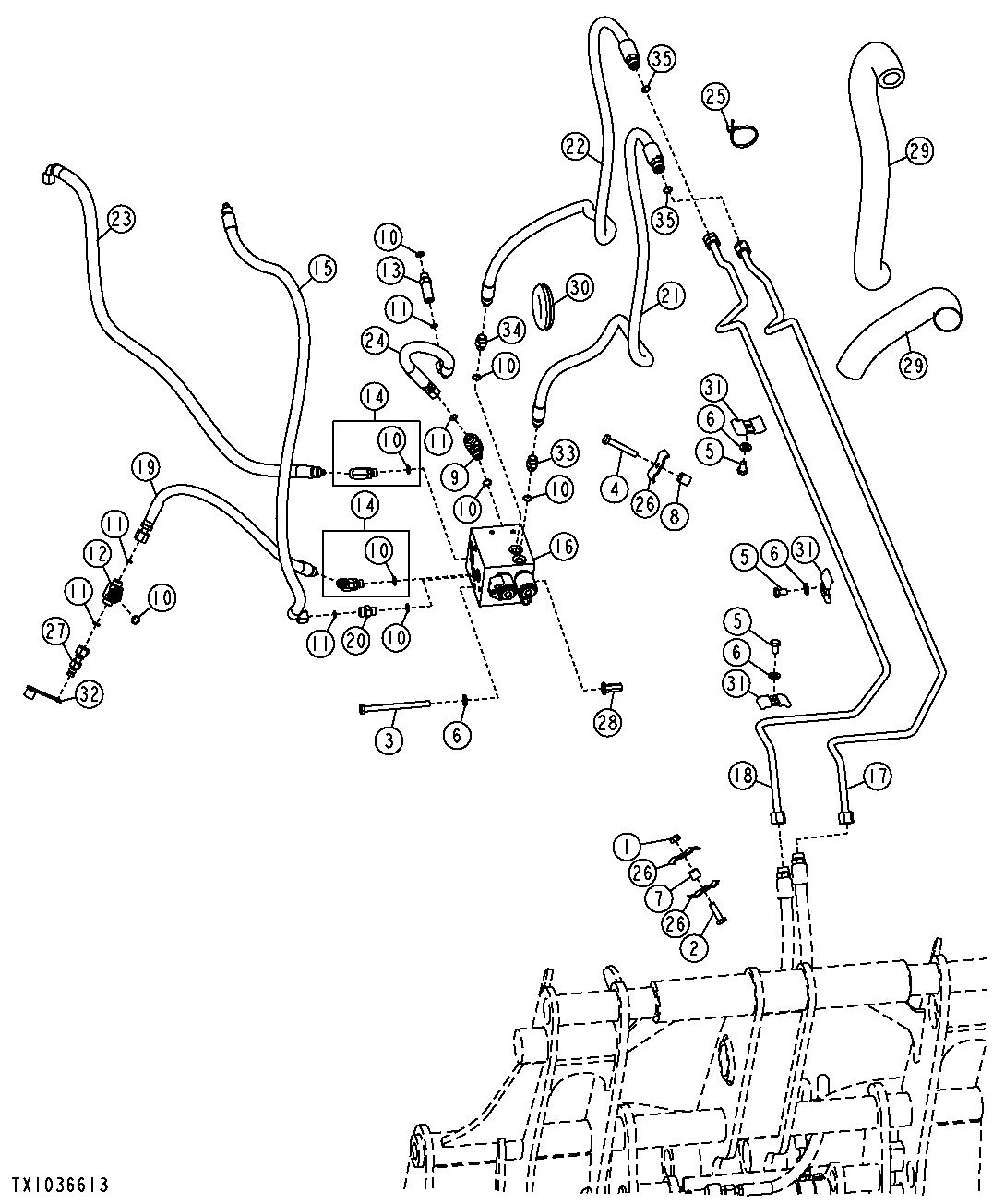

Hydraulic Front Coupler Lines and Hoses (Engine 4045HT054, 4045HL287, 4045HL288)
