Fuel Tank Lines and Fuel Cooler (Engine 4045HT054, 4045HL287)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT199908	1	Fuel Cooler	-
2	19M7898	2	Screw	M10 X 130, With Air Conditioning, SUB FOR 19M8343 AND 24M7101 APPL
2	19M7808	2	Screw	M10 X 65, Without Air Conditioning Not Illustrated, SUB FOR 19M7742 AND 24M7101 APPL
3	T249320	2	Bushing	-
4	T237868	2	Clamp	-
5	-	1	Part 6	MAKE FROM N112006, CTL 271.27 cm (8.90 ft)
6	-	1	Part 7	MAKE FROM M87571, CTL 112.78 cm (3.70 ft)
7	-	1	Part 8	MAKE FROM M87571, CTL 7.62 cm (3.00 in)
8	24M7239	2	Washer	10.700 X 21 X 2.500 mm
9	19M7550	2	Cap Screw	M10 X 35
10	38H5008	2	Adapter Fitting	-
11	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
12	51M7040	2	O-Ring	9.300 X 2.200 mm
13	RE46686	2	Fitting Plug	-
14	24M7238	2	Washer	8.700 X 17 X 2 mm
15	19M7932	1	Cap Screw	M8 X 16
16	AT335148	1	Hydraulic Hose	-
17	AT335146	1	Hose	-
18	T74416	1	Clamp	-
19	R44302	1	Tie Band	-
20	AH77869	1	Clip	-
21	19M7572	1	Cap Screw	M10 X 45
22	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
23	AR48236	2	Clamp	-
24	AR77962	2	Hose Clamp	-
25	T238878	2	Fuel Line	-
26	R97021	4	Clamp	-
27	R115350	1	Grommet	-
28	T239581	1	Bracket	-
29	19M7513	1	Cap Screw	M8 X 30
30	14M7273	1	Nut	M8
31	T166773	1	Washer	-
32	AH89557	1	Clip	-
33	RE516287	1	Fuel Pump	NLA; ORDER RE530385
33	RE530385	1	Filter	Primary Fuel Filter and Water Separator with Low Pressure Fuel Pump
34	RE526834	1	Filter Kit	Retaining Ring, Filter Assembly
35	RE529643	1	Filter Element	-
36	RE516512	1	O-Ring Kit	-
37	RE516553	1	Seal Kit	-
38	RE519696	1	Sensor	Water In Fuel
39	57M9556	1	Elec. Connector Accessory	Lock
40	57M7256	1	Elec. Connector Housing	Water In Fuel
40	R104919	2	Elec. Connector Terminal	-
40	57M7258	2	Elec. Connector Seal	-
41	RE51650	1	Sediment Bowl	-

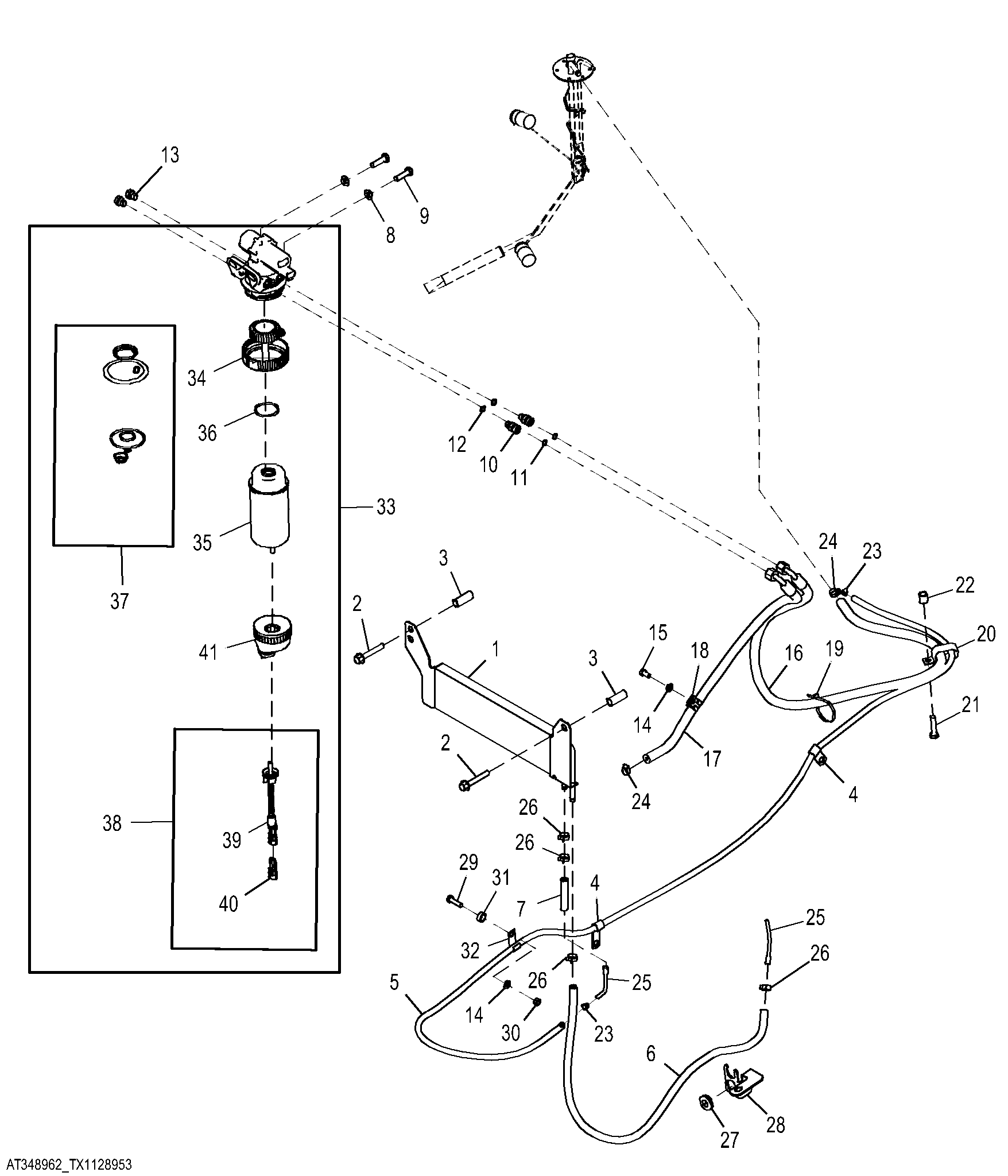

Fuel Tank Lines and Fuel Cooler (Engine 4045HT054, 4045HL287)
