Большое обновление пильных узлов

Смотреть

Открытый узел

Extendable Arm And Locking Pin, Thumb Ready

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT322951	1	Dipperstick	Stationary Member
2	T295708	2	Bushing	-
3	AT358095	1	Dipperstick	Extendable Member
4	T166686	2	Bushing	-
5	T166715	2	Bushing	-
6	T162396	1	Lubrication Fitting	-
7	AT356866	2	Bracket	-
8	T238886	1	Bushing	-
9	T159976	1	Guide	Hose Guide Loop
10	T244683	1	Plate	-
11	T244679	1	Plate	-
12	AH233982	1	Hydraulic Cylinder	Fabricate, NLA, ORDER AHC14477 ALSO ORDER AT435645
12	AHC14477	1	Hydraulic Cylinder	Requires Components On Separate Page, AT435645 SUB FOR AH233982
13	T160384	1	Spacer	-
14	40M7179	2	Snap Ring	-
15	T228082	2	Shim	-
16	T157796	3	Shim	-
17	AT330944	1	Wear Plate	-
18	AT173933	1	Wear Plate	-
19	T157792	2	Wear Plate	-
20	T228083	1	Shim	-
21	T227937	6	Shim	-
22	T228148	8	Wear Plate	-
23	19M7666	22	Screw	M10 X 40
24	24M7240	16	Washer	13 X 25 X 3 mm
25	14M7400	18	Lock Nut	M10
26	19H2472	6	Cap Screw	1/2" X 1"
27	AT172255	1	Hydraulic Hose	9/16" X 1814 mm (71-1/2") X 13/16"
27	R26448	1	O-Ring	-
28	AT172256	1	Hydraulic Hose	13/16" X 590 mm (23-1/4") X 13/16"
29	24M7396	4	Washer	21 X 34 X 3 mm
30	38H1323	1	Elbow Fitting	-
31	T77857	2	O-Ring	-
32	AR21841	1	Clamp	-
33	T29342	1	Washer	-
34	R46919	2	Half Clamp	-
35	T126052	1	Spacer	-
36	24M7239	1	Washer	10.700 X 21 X 2.500 mm
37	T78716	2	Nut	-
38	19M7935	1	Cap Screw	M10 X 55
39	T105774	1	Guide	-
40	38H1005	1	Elbow Fitting	-
41	R26375	1	O-Ring	-
42	T77857	1	O-Ring	-
43	T24959	1	Clamp	-
44	24M7238	1	Washer	8.700 X 17 X 2 mm
45	M86877	1	Bolt	-
46	AT171079	1	Pin	-
47	T162396	2	Lubrication Fitting	-
48	40M7166	2	Snap Ring	-
49	AT169831	1	Pin	-
50	40M7120	1	Snap Ring	-
51	T153567	1	Pin	-
52	40M7066	2	Snap Ring	-
53	24H1616	4	Washer	2-9/16" X 3-3/4" X 0.036"
54	24H1635	1	Washer	2-5/8" X 3-3/8" X 0.120"
55	24H1679	2	Washer	2-17/64" X 3-1/4" X 0.060"
56	24H1594	2	Washer	2-1/16" X 2-3/4" X 0.134"
57	T153322	1	Pin	-
58	34M7054	1	Spring Pin	10 X 50 mm
59	AR83396	1	Quick Lock Pin	-
60	24H1595	3	Washer	2-1/16" X 3" X 0.075"
61	AT435645	1	Hydraulic Hose	Not Illustrated Fabricate, USE WITH AHC14477

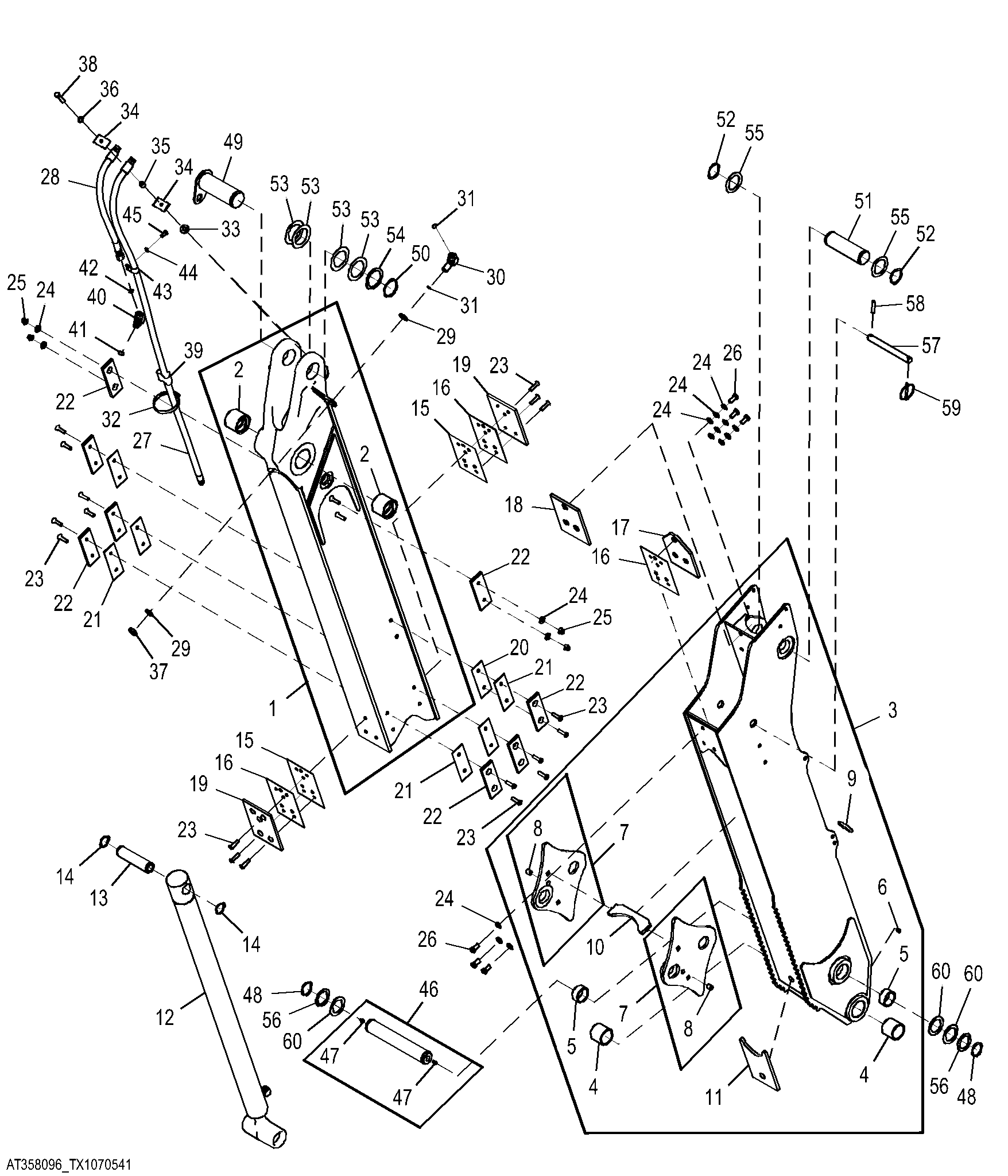

Extendable Arm And Locking Pin, Thumb Ready
