Cooling System Hoses and Fittings (Engine 4045HT054, 4045HL287)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	3	Nut	M10
2	19M7008	1	Cap Screw	M8 X 10
3	19M7550	2	Cap Screw	M10 X 35
5	19M7868	4	Screw	M8 X 30
6	19M7932	4	Cap Screw	M8 X 16
7	19M8324	3	Cap Screw	M10 X 16
9	19M8637	4	Cap Screw	M10 X 40
10	24M7238	6	Washer	8.700 X 17 X 2 mm
11	24M7239	6	Washer	10.700 X 21 X 2.500 mm
12	28H3383	2	Bushing	0.493" X 0.675" X 3/4"
13	51M7043	1	O-Ring	15.300 X 2.200 mm
14	AH206095	1	Elbow Fitting	-
15	AH89557	1	Clip	-
16	AL204009	1	Aftercooler	(SUB FOR AL181625)
17	AR68999	3	Elbow Fitting	-
18	AT105289	2	Clamp	-
19	AT21574	2	Fitting	(ALSO ORDER U12547)
20	19M7785	9	Screw	M10 X 25
21	AT300153	4	Hose Clamp	-
22	AT301917	4	Hose Clamp	-
23	AT310335	1	Filler Cap	-
24	AT320220	1	Tank	-
25	AT324059	2	Elbow Fitting	-
26	AT334597	1	Angle	-
27	AT349069	3	Oil Cooler	-
28	AT362597	1	Tube	-
30	24M7296	2	Washer	10.500 X 30 X 2.500 mm
31	AT363659	1	Tube	-
32	AT353200	1	Plate	-
33	T148409	3	Nut	-
34	T254819	1	Gasket	(SUB FOR L157267)
35	L157268	1	Elec. Connector Terminal	-
36	L171071	4	Bushing	-
37	L171072	4	Bushing	-
38	R26906	2	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
40	R46667	1	Clamp	-
41	T152608	1	Clamp	-
42	T162675	3	Clamp	-
43	T174427	7	Clamp	-
45	R225971	14	Clamp	(SUB FOR T217175)
46	T226137	1	Radiator Hose	-
47	T226138	1	Radiator Hose	-
48	T226250	2	Radiator Hose	-
48	T250199	2	Radiator Hose	-
49	T226273	1	Hose	-
50	T238865	1	Hose	-
52	T246173	1	Bracket	(SUB FOR T239061)
53	T72393	1	Clamp	-
54	U12547	2	O-Ring	-
55	U13055	2	CLAMP	-
56	-	5	Part 51	(MAKE FROM TY22566) (CTL)
57	-	2	Part 52	(MAKE FROM T78497) (CTL)
59	T238896	1	Radiator Hose	-
60	T238897	1	Hose	-
61	T239060	1	Radiator Hose	-
62	T239433	1	Radiator Hose	-
63	19M7402	1	Cap Screw	M10 X 25
64	T149597	1	Clamp	-
65	R191781	2	Hose Clamp	-
66	19M8017	1	Cap Screw	M12 X 20
68	19M8017	1	Cap Screw	M12 X 20
69	19M7804	3	Screw	M10 X 40

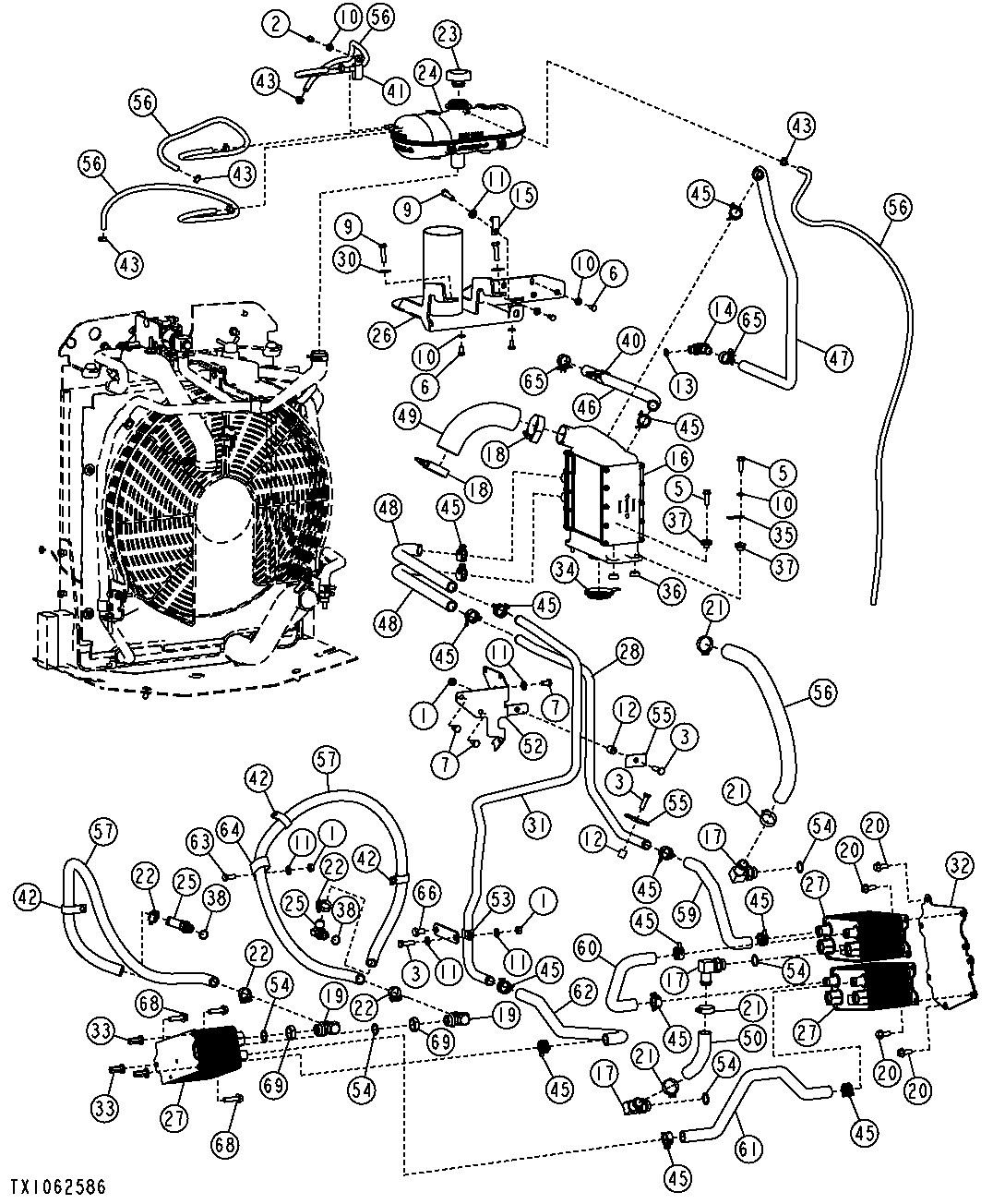

Cooling System Hoses and Fittings (Engine 4045HT054, 4045HL287)
