Boom, Crowd, and Bucket Cylinder Hydraulics

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
1	38H1163	5	Adapter Fitting	-
1	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
2	AT179238	1	Hydraulic Hose	-
3	AT179238	1	Hydraulic Hose	-
4	38H1014	1	Elbow Fitting	-
4	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
4	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
5	AT312007	1	Oil Line	-
6	AT312517	1	Bracket	-
7	38H1164	2	Adapter Fitting	-
7	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
7	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
8	38H1193	1	Adapter Fitting	-
8	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
8	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
9	T216633	1	Hose Clamp	-
10	AT311342	1	Hydraulic Hose	-
11	AT320637	1	Hydraulic Hose	-
12	AT330062	1	Hydraulic Hose	-
13	AT330061	1	Hydraulic Hose	-
14	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
14	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
14	38H1005	2	Elbow Fitting	-
15	AT178413	1	Hydraulic Hose	-
15	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
16	AT318939	1	Hydraulic Hose	-
17	T216863	1	Bracket	-
18	AT336879	1	Oil Line	-
19	AT336889	1	Oil Line	-
20	38H1179	4	Adapter Fitting	-
20	T76938	1	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
20	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
21	38H1002	2	Tee Fitting	-
21	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
22	AT312891	1	Hydraulic Hose	-
23	38H1048	2	Elbow Fitting	-
23	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
23	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
24	T163636	8	Clamp	-
25	AT178413	1	Hydraulic Hose	-
25	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
26	T159848	2	Clamp	-
27	T232850	2	Clamp	-
28	AT320718	1	Hydraulic Hose	-
29	T162005	4	Strap	-
30	14M7426	4	Lock Nut	M8
31	19M7801	4	Screw	M8 X 60
32	U12288	2	Clamp	-
33	19M7550	2	Cap Screw	M10 X 35
34	24M7239	6	Washer	10.700 X 21 X 2.500 mm
35	14M7274	5	Nut	M10
36	19M8600	1	Cap Screw	M10 X 50
37	19M8637	2	Cap Screw	M10 X 40
38	19M8402	4	Cap Screw	M8 X 65
39	T159954	1	Clamp	-
40	19M7572	1	Cap Screw	M10 X 45
41	T165740	1	Isolator	-
42	T165889	4	Screw	-
43	T78715	2	Nut	-
44	AT323938	1	Stop	Boom Stop
45	19M8183	2	Cap Screw	M10 X 90
46	T241134	2	Block Clamp	Boom Stop
47	T165742	2	Isolator	-
48	T161365	1	Sleeve	-
49	T161365	1	Sleeve	-
50	H77698	4	Tie Band	-
51	AC15595	1	Clamp	-
52	T220134	1	Hose Clamp	-
53	T215395	1	Hose Clamp	-
54	AT323937	1	Stop	Boom Stop
55	R46919	2	Half Clamp	-
56	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
57	AR21841	1	Clamp	-
58	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
58	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
58	38H1007	4	Elbow Fitting	-
59	AT336044	1	Oil Line	-
60	AT336165	1	Oil Line	-
61	AT329937	1	Hydraulic Hose	-
62	AT329937	1	Hydraulic Hose	-
63	AT311339	1	Hydraulic Hose	-
64	AT315115	1	Hydraulic Hose	-
65	AT312908	1	Hydraulic Hose	-
66	AT320685	1	Hydraulic Hose	-

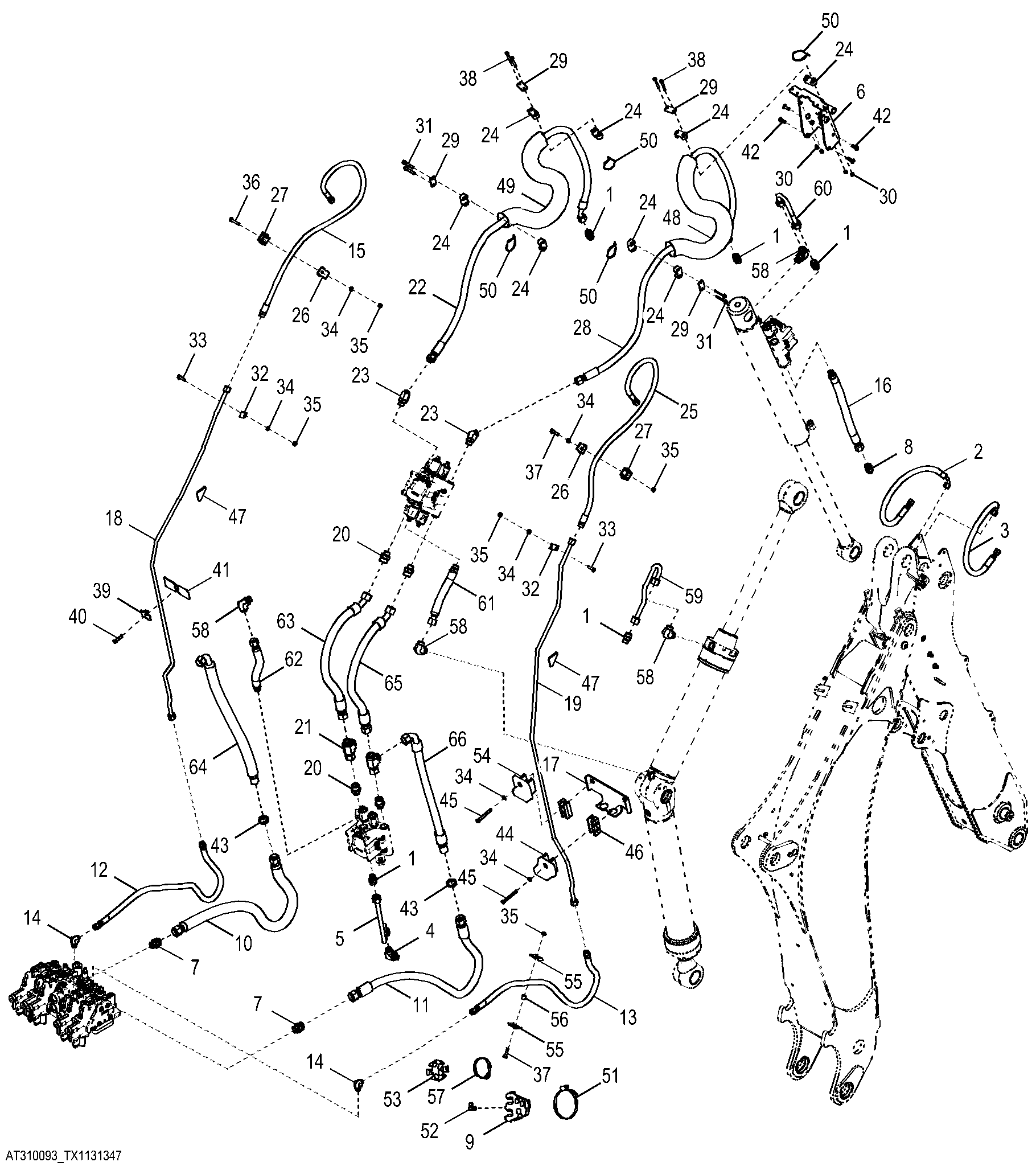

Boom, Crowd, and Bucket Cylinder Hydraulics
