Two Way Auxiliary Control Valve, for Left Foot Pedal Pilot Control without Circuit Relief

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT307664	1	Valve Kit	2-Way Auxiliary Control Valve, for Left Foot Pedal Pilot Control without Circuit Relief Whole Goods Requires, AT301485
2	AT189168	1	Spool Valve	Manual Auxiliary Section Marked K Components on Separate Page
3	AT300805	1	Valve	Pilot Swing Valve Marked J Components On Separate Page
4	T140699	1	Rod	Converting From Four Function To Five Function
4	T140700	1	Rod	Converting From Five Function To Six Function
4	T159264	1	Stud	Converting From Five Function Plus Select Flow Not Included In Kit
5	14H865	2	Nut	1/2"
6	T118695	2	Rod	Converting From Four Function To Five Function
6	T118697	2	Rod	Converting From Five Function To Six Function
6	T159263	2	Stud	Converting From Five Function Plus Select Flow Not Included In Kit
7	14H807	4	Nut	7/16"
8	AT301485	1	Pedal Kit	Left Foot Pedal, 2-Way Auxiliary Pilot Controls Whole Goods Not Illustrated Components on Separate Page

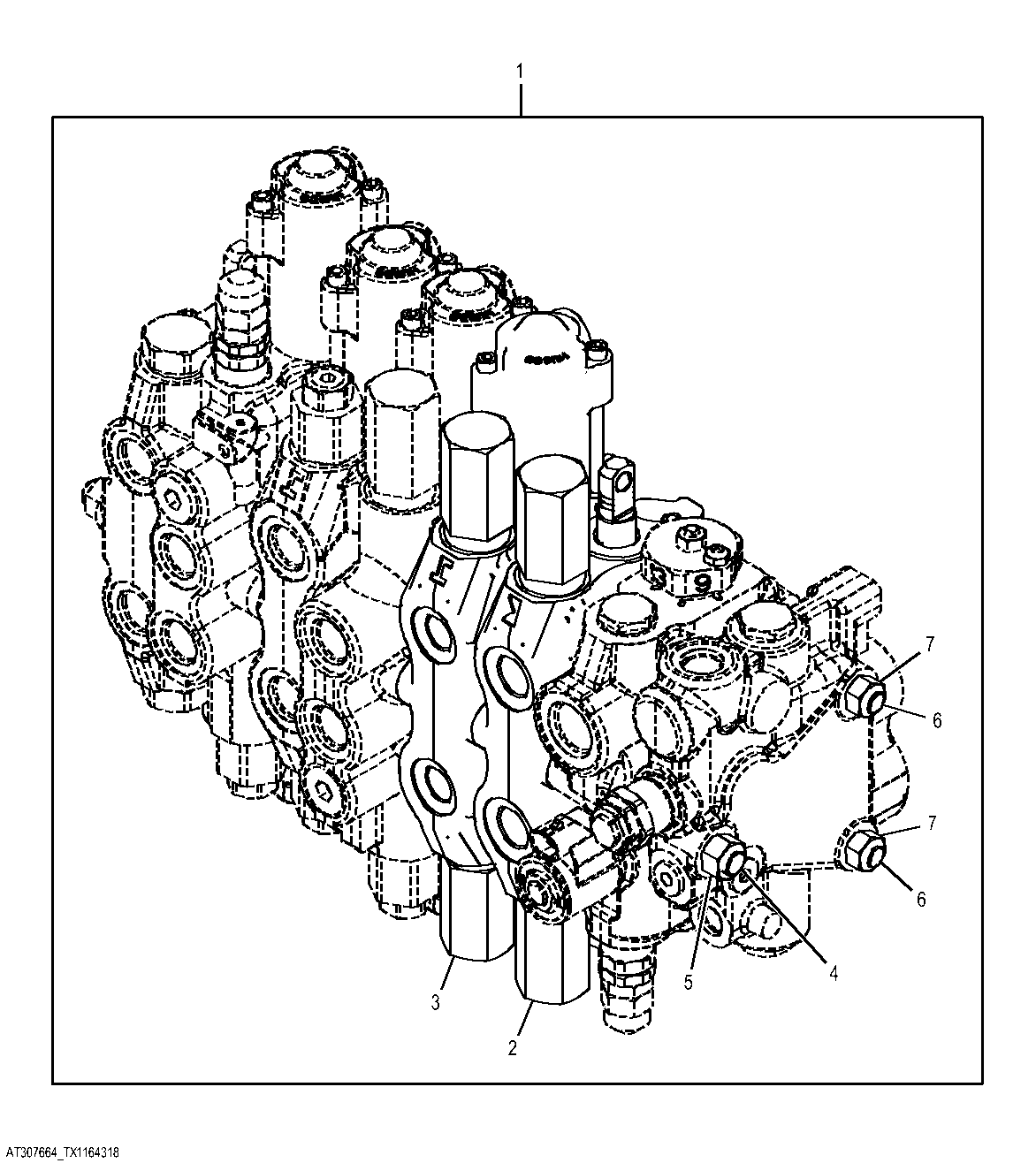

Two Way Auxiliary Control Valve, for Left Foot Pedal Pilot Control without Circuit Relief
