Transmission Rear Housing and Oil Fill Tube

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T161194	1	Plug	NLA, ORDER T175862 AND T116416
2	T229354	2	Orifice	1.40 mm, First Speed Clutch
2	T229384	2	Orifice	1.70 mm
2	T229387	2	Orifice	1.70 mm, Second Speed Clutch, USE WITH AT336002
2	T229361	2	Orifice	1.50 mm, Third Speed Clutch
2	T230433	2	Orifice	1.55 mm
3	T229350	2	Plug	NLA, ORDER AT486479
4	T229396	2	O-Ring	NLA, ORDER AT486479
5	AT486479	2	Plug	SUB FOR AT339903
6	T292708	1	Tube	SUB FOR T229404
7	T229338	3	Plug	NLA, ORDER AT339901
8	T229395	3	O-Ring	NLA, ORDER AT339901
9	AT339901	3	Plug	-
10	-	1	Part 14	NLA
11	25M7021	4	Groove Pin	3 X 5 mm
13	T229391	1	Housing	With MFWD, ALSO ORDER RE63751
13	T229390	1	Housing	Without MFWD, ALSO ORDER RE63751
14	T164662	2	Pin	-
15	R73975	2	Bracket	-
16	AT339921	1	Screen	-
17	RE63751	1	Pipe Plug	-
18	T175862	1	Plug	-
19	T116416	1	O-Ring	8 X 1.500 mm (0.315" X 0.059")
20	T113570	1	Drain Plug	-
21	R104558	1	O-Ring	15 X 2 mm (0.591" X 0.079")
22	T159565	1	Plug	Transmission Drain Plug
23	AT398751	1	Plug	Mechanical Front Wheel Drive Test Port
24	AT398751	1	Plug	Pressure Port
25	AT398751	1	Plug	3rd Speed Test Port

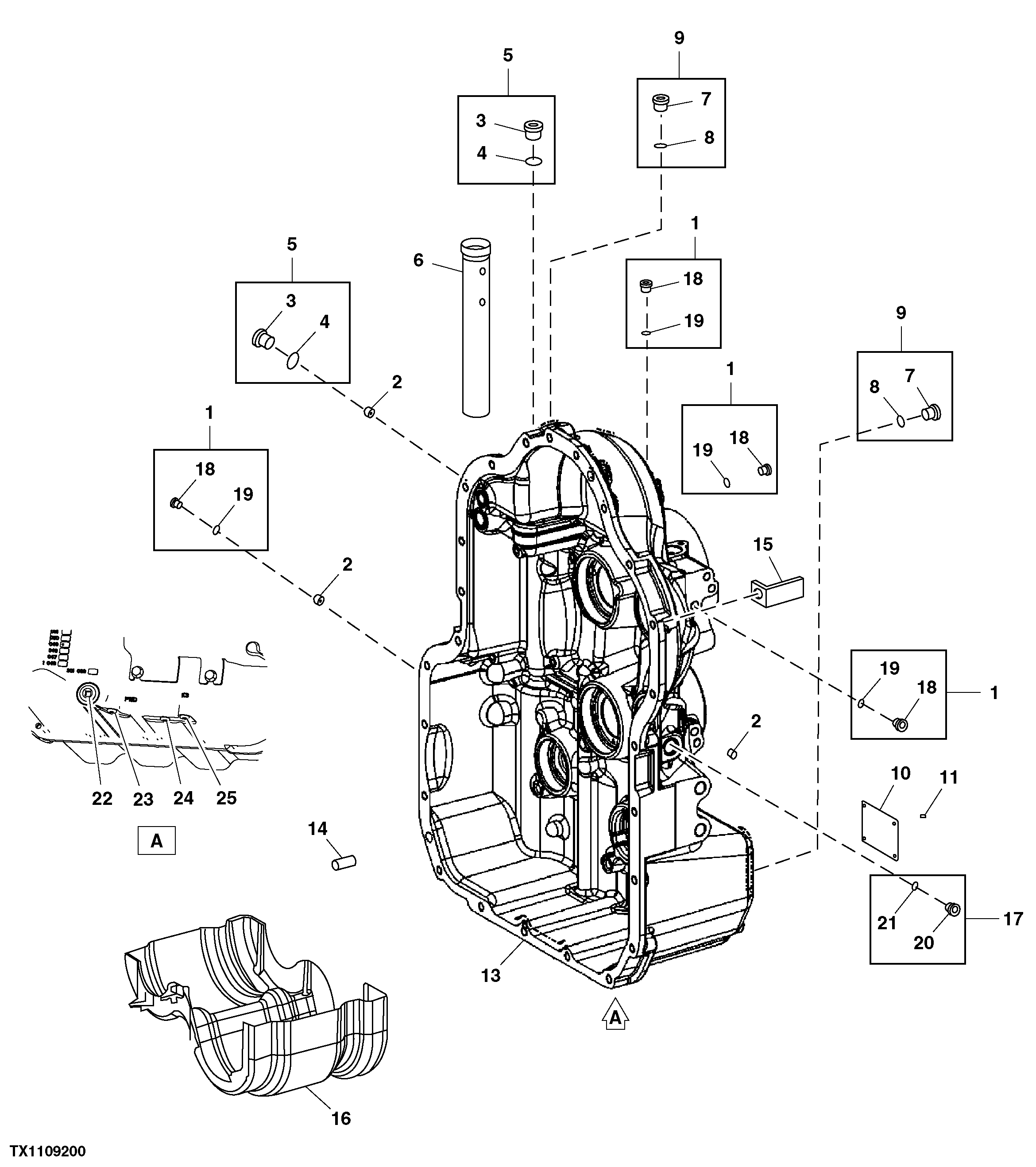

Transmission Rear Housing and Oil Fill Tube
