Swing Section, Pilot Control with Manual Auxiliaries

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT300805	1	Valve	6-Function 7-Function With Manual Auxiliaries Swing Section
1	AT301763	1	Spool Valve	4-Function 5-Function 6-Function With Flow Control Auxiliaries Swing Section
2	-	2	Part 3	262.00 bar (3800 psi), ORDER AT178362, T118866, T118867 AND T118681
3	T118866	2	Housing	-
4	T118867	2	Spring	-
5	AT178362	2	Valve Kit	Relief Valve
6	-	2	Part 7	ORDER AT444015
7	-	2	Part 8	ORDER AT444015
8	T118681	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
9	T191335	2	Screw	-
10	T201072	1	Cap	-
11	T191337	1	Screw	-
12	T201306	2	Retainer	-
13	T201071	1	Compression Spring	-
14	T191346	1	O-Ring	-
15	790106800	1	Retainer	-
16	R30903	2	O-Ring	6.071 X 1.626 mm (0.239" X 0.064")
17	T213059	2	O-Ring	-
18	T81538	1	Poppet	-
19	T81539	1	Spring	-
20	T118685	1	O-Ring	88.494 X 3.531 mm (3-31/64" X 0.139")
21	T191336	1	Plug	-
22	T201069	1	Cap	-
23	T191334	2	Screw	-
24	AT314538	1	Seal Kit	22.23 mm (0.875 in), Relief Valve
24	AT314539	1	Seal Kit	26.99 mm (1.0625 in), Relief Valve
25	AT280406	1	Seal Kit	Spool, SUB FOR AT168675 AND AT178372

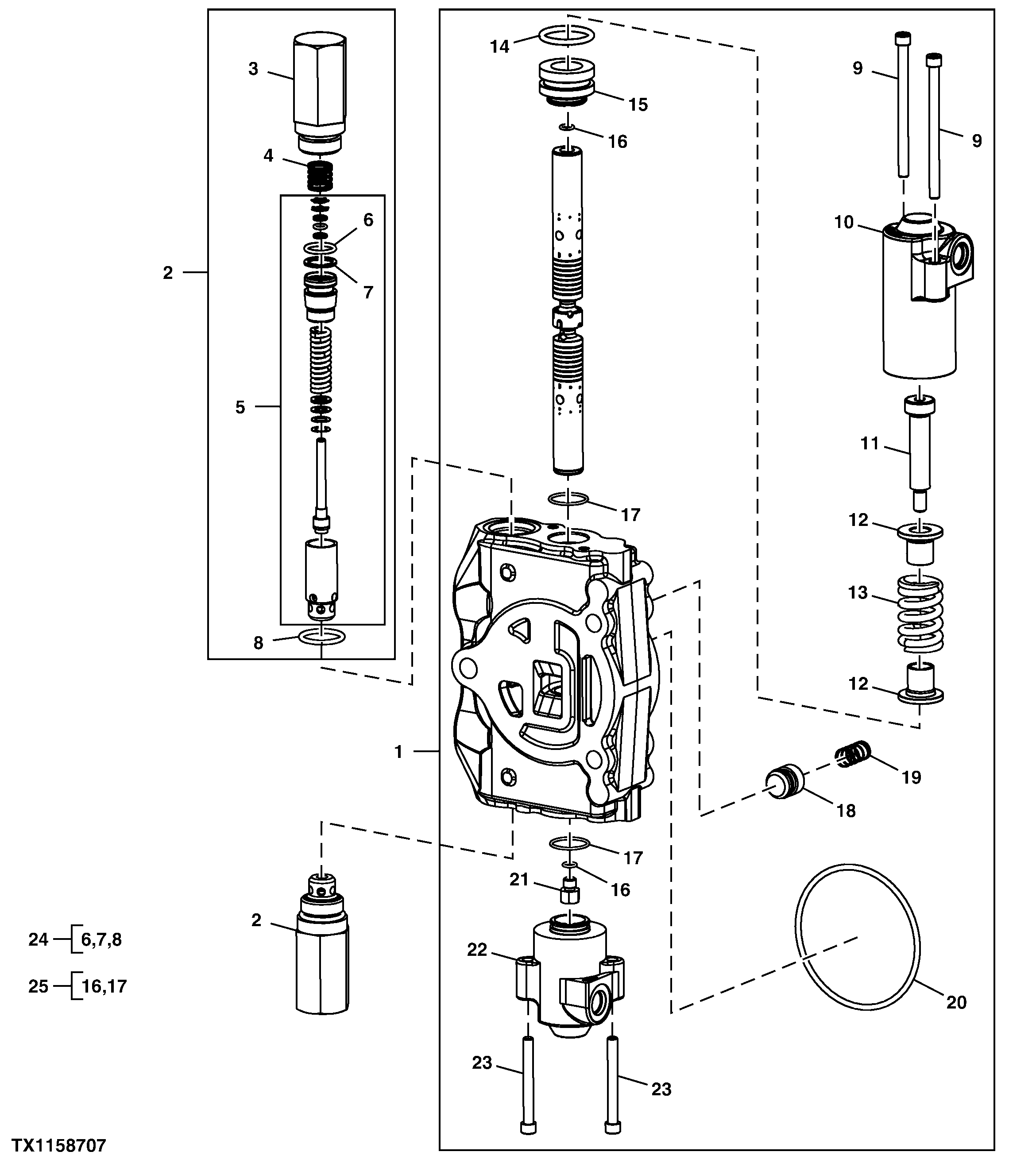

Swing Section, Pilot Control with Manual Auxiliaries
