Replacement Multipurpose Coupler Bucket Kit 1.0 m³ (1.32 Yd³) 2.34 m (92.000 in)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT448177	1	Multi-Purpose Bucket	WHOLE GOODS
2	T143802	1	Cutting Edge	-
3	09H1776	8	Bolt	5/8" X 1-3/4"
4	24M7241	8	Washer	17 X 34 X 4 mm
5	14H1039	8	Nut	5/8"
6	T213143	1	Label	Worksite Pro
7	T128538	1	Cutting Edge	-
8	T128533	2	Bushing	-
9	T166433	2	Bushing	-
10	T128533	2	Bushing	-
11	T166433	2	Bushing	-
12	T84194	1	Cutting Edge	-
13	09H1759	8	Bolt	5/8" X 2-1/4"
14	24M7241	8	Washer	17 X 34 X 4 mm
15	14H1039	8	Nut	5/8"
16	T328756	2	Pin	-
17	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
18	19H2106	4	Cap Screw	7/16" X 2-3/4"
19	K40006	4	Lock Nut	-
20	JD7844	4	Lubrication Fitting	-
21	AHC15426	2	Hydraulic Cylinder	Components On Separate Page
22	AT425236	2	Pin	-
23	19H1800	2	Cap Screw	3/8" X 1-1/2"
24	24M7239	2	Washer	10.700 X 21 X 2.500 mm
25	T54568	2	Lock Nut	-
26	T352251	2	Pin	-
27	H135156	6	Clamp	-
28	AT448032	2	Tube	-
29	H121168	3	Plate	-
30	38H5069	2	Tee Fitting	-
31	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
32	38H5036	2	Elbow Fitting	-
33	51M7042	2	O-Ring	13.300 X 2.200 mm
34	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
35	38H5154	2	Elbow Fitting	-
36	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
37	51M7042	2	O-Ring	13.300 X 2.200 mm
38	AT448005	1	Hydraulic Hose	Fabricate, INCLUDES T77857
38	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
39	AT448005	1	Hydraulic Hose	Fabricate, INCLUDES T77857
39	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	AT448009	1	Hydraulic Hose	Fabricate, INCLUDES T77857
41	AT448009	1	Hydraulic Hose	Fabricate, INCLUDES T77857
41	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
42	19H1906	3	Cap Screw	5/16" X 1-1/2"
43	AT448169	1	Hydraulic Hose	-
44	AT448169	1	Hydraulic Hose	-
45	38H3329	2	Adapter Fitting	-
46	T77932	2	O-Ring	15.596 X 1.778 mm (0.614" X 0.070")
47	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
48	AT312470	1	Hyd. Quick-Connect Coupler	Male
49	KV14216	1	Hyd. Quick-Connect Coupler	Female
50	T188880	1	Cap	Female
51	T188879	1	Cap	Male
52	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070"), Not Illustrated, USE WITH 38H3175

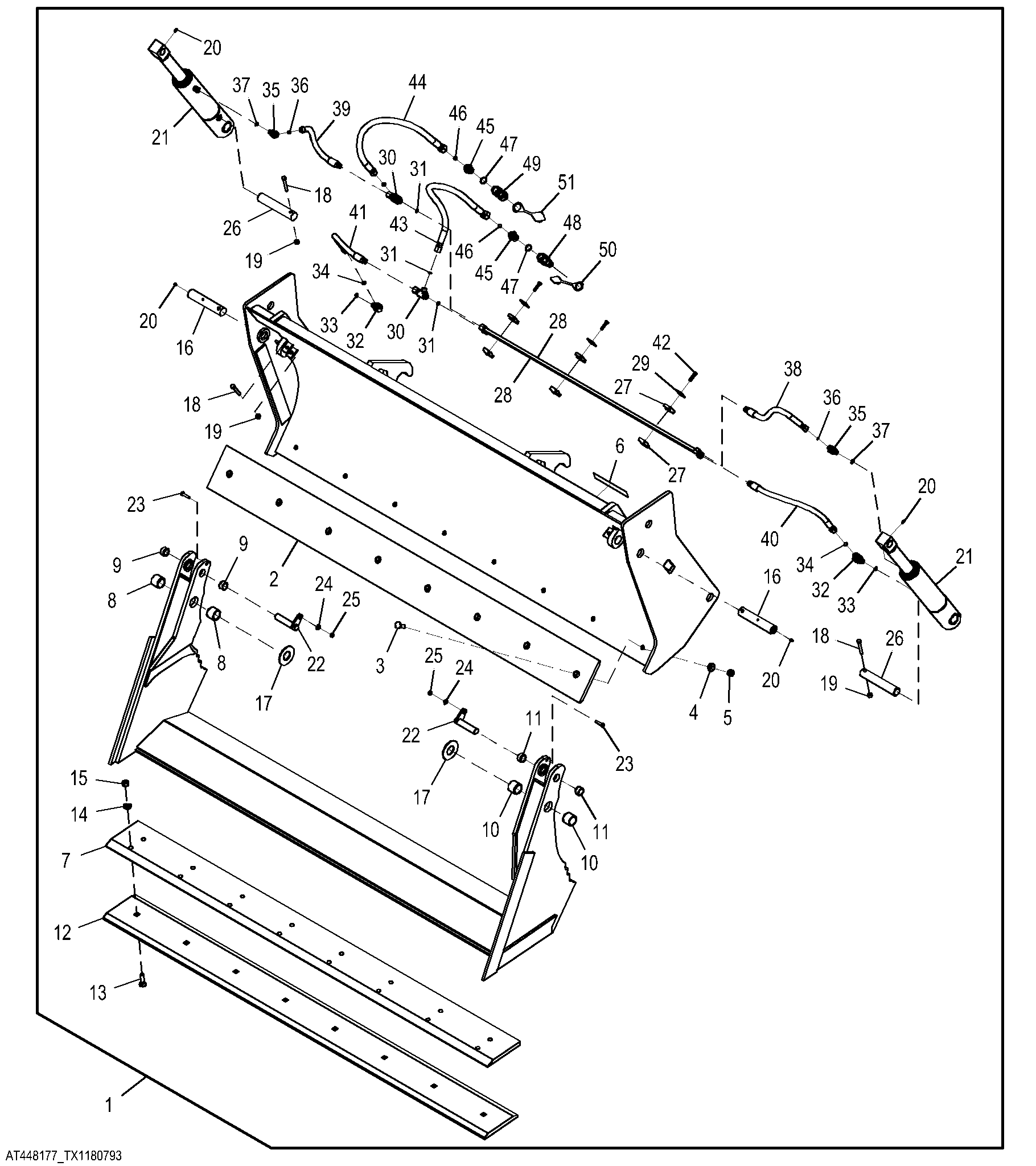

Replacement Multipurpose Coupler Bucket Kit 1.0 m³ (1.32 Yd³) 2.34 m (92.000 in)
