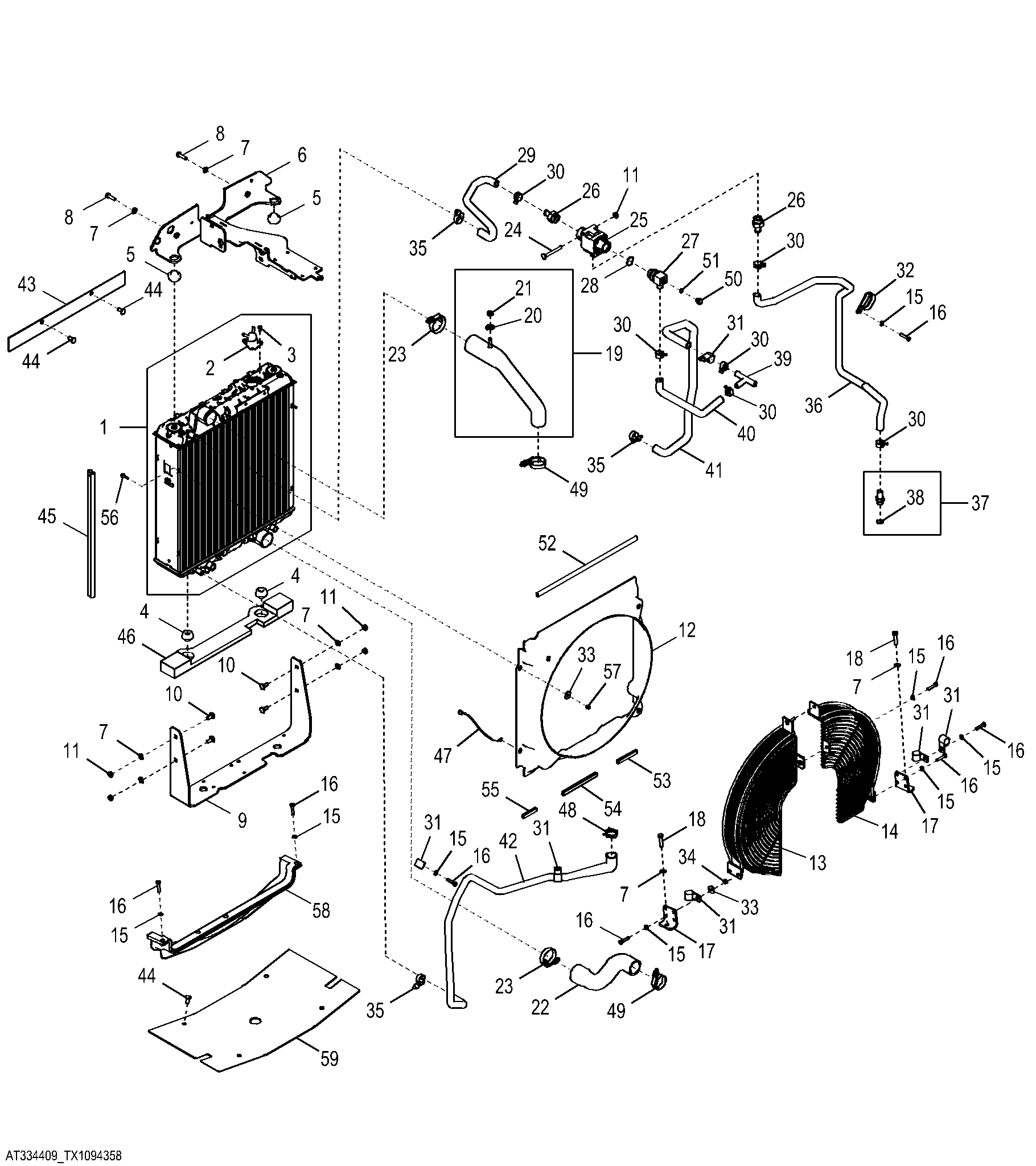

Radiator, Hoses, Fan Shroud and Guard (Engine 4045HT054, 4045HL287)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155781	1	Drain Plug	With O-Ring Not Illustrated
1	AT393357	1	Radiator	SUB FOR AT351271
1	R98502	1	Ring	14.4 mm, Not Illustrated
1	R26286	1	O-Ring	10.52 mm, Not Illustrated
1	AL176130	1	Drain Valve	w/ O-Rings Not Illustrated
1	L77581	1	O-Ring	Not Illustrated, FOR AL155781
1	R183409	1	O-Ring	7.65 mm, Not Illustrated
2	T214276	1	Adapter Fitting	-
3	21M7246	3	Screw	M6 X 16
4	KV25173	2	Isolator	-
5	T216248	2	Isolator	-
6	AT334592	1	Angle	-
7	24M7239	8	Washer	10.700 X 21 X 2.500 mm
8	19M7550	2	Cap Screw	M10 X 35
9	T213481	1	Angle	-
10	03M7307	4	Bolt	M10 X 25
11	14M7274	5	Nut	M10
12	AT346878	1	Shroud	-
13	AT312426	1	Guard	-
14	AT323152	1	Guard	-
15	24M7238	10	Washer	8.700 X 17 X 2 mm
16	19M7922	10	Cap Screw	M8 X 40
17	T216350	2	Plate	-
18	19M7572	2	Cap Screw	M10 X 45
19	AT344638	1	Radiator Hose	Radiator Deaeration Hose Thermostat to Radiator
20	24H1789	1	Washer	17/32" X 1-1/4" X 0.105"
21	14H856	1	Nut	1/2"
22	T216620	1	Radiator Hose	Lower Radiator to Engine
23	AH170895	2	Clamp	-
24	03M7247	1	Bolt	M10 X 90
25	AT354811	1	Thermostatic Control Valve	SUB FOR AT320238
26	AT43223	2	Elbow Fitting	90°, Fitting
26	H65405	1	Fitting	Straight Fitting
27	AT355452	1	Adapter Fitting	-
28	R29936	1	O-Ring	-
29	T226134	1	Radiator Hose	Thermal Bypass to Radiator
29	T286073	1	Radiator Hose	Thermal Bypass to Radiator
30	R191781	6	Hose Clamp	SUB FOR T185826
31	R46667	6	Clamp	-
32	T225865	1	Clamp	-
33	24M7024	3	Washer	9 X 28 X 3 mm
34	14M7273	1	Nut	M8
35	R524513	3	Hose Clamp	-
36	T226133	1	Radiator Hose	Oil Cooler to Thermal Bypass Valve
37	RE223627	1	Hose Fitting	-
38	51M7045	1	O-Ring	19.300 X 2.200 mm
39	N221912	1	Fitting	-
40	T226135	1	Radiator Hose	Coolant Hose
41	T226136	1	Radiator Hose	Coolant Hose
42	T226222	1	Radiator Hose	Surge Tank to Left Radiator Port
43	T216877	1	Isolator	-
44	MT2485	3	Plug	-
45	-	2	Part 53	MAKE FROM AT305126, CTL 1.9 ft
46	T226132	1	Deflector	-
47	AT324273	1	Ground Cable	-
48	T251567	1	Clamp	SUB FOR L154742
49	RE56098	2	Clamp	-
50	T227450	1	Drain Plug	-
51	R26448	1	O-Ring	-
52	-	1	Part 60	MAKE FROM T61861, 1.8 ft
53	-	1	Part 61	MAKE FROM T61861, CTL 0.33 ft
54	-	1	Part 62	MAKE FROM T61861, CTL 0.60 ft
55	-	1	Part 63	MAKE FROM T61861, CTL 0.23 ft
56	19M7863	2	Screw	M6 X 25
57	14M7397	2	Lock Nut	M6
58	AT352699	1	Deflector	-
59	T241376	1	Deflector	-
