Radiator, Hoses, Fan Shroud, and Guard (Engine 4045DT060, 4045TT094-)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AL155781	1	Drain Plug	with O-Rings Not Illustrated
1	AT393357	1	Radiator	SUB FOR AT351271
1	R98502	1	Ring	14.400 X 2 mm (0.567" X 0.079"), Not Illustrated
1	R26286	1	O-Ring	10.516 X 1.829 mm (0.414" X 0.072"), Not Illustrated
1	AL176130	1	Drain Valve	with O-Rings Not Illustrated
1	R183409	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070"), Not Illustrated
1	L77581	1	O-Ring	14 X 2 mm (0.551" X 0.079"), Not Illustrated, FOR AL155781
2	T214276	1	Adapter Fitting	-
2	L169999	1	O-Ring	9.00 mm X 5.00 mm X 3.00 mm (0.354 in X 0.197 in X 0.118 in)
2	L209135	1	O-Ring	27 X 2.800 mm (1-1/16" X 0.110"), SUB FOR L169998
3	21M7246	3	Screw	M6 X 16
4	KV25173	2	Isolator	-
5	T216248	2	Isolator	-
6	AT318095	1	Angle	-
7	24M7239	8	Washer	10.700 X 21 X 2.500 mm
8	19M7550	2	Cap Screw	M10 X 35
9	T213481	1	Angle	-
10	03M7307	4	Bolt	M10 X 25
11	14M7274	6	Nut	M10
12	AT346878	1	Shroud	-
13	24M7024	5	Washer	9 X 28 X 3 mm
14	19M7863	4	Screw	M6 X 25
15	AT320220	1	Tank	-
16	AH89557	2	Clip	-
17	24M7238	12	Washer	8.700 X 17 X 2 mm
18	19M7008	2	Cap Screw	M8 X 10
19	AT310335	1	Filler Cap	15 psi
20	AT354811	1	Thermostatic Control Valve	SUB FOR AT320238
21	R35668	1	Clamp	-
22	AT312426	1	Guard	-
23	AT323152	1	Guard	-
24	19M7932	4	Cap Screw	M8 X 16
25	19M7922	5	Cap Screw	M8 X 40
26	T216350	2	Plate	-
27	T149597	1	Clamp	-
28	R46667	3	Clamp	-
29	19M7572	2	Cap Screw	M10 X 45
30	AT334333	1	Radiator Hose	-
31	24H1789	1	Washer	17/32" X 1-1/4" X 0.105"
32	14H856	1	Nut	1/2"
33	T174427	7	Clamp	-
34	T216620	1	Radiator Hose	-
35	AH170895	2	Clamp	-
36	T216877	1	Isolator	-
37	MT2485	5	Plug	-
38	-	2	Part 46	MAKE FROM AT305126 CTL, 57.91 cm (22.800 in)
39	T226097	1	Isolator	-
40	T216934	1	Radiator Hose	-
41	-	1	Part 49	MAKE FROM TY22566 CTL, 68.58 cm (27.000 in)
42	-	1	Part 50	MAKE FROM TY22566 CTL, 71.32 cm (28.08 in)
43	-	1	Part 51	MAKE FROM TY22566 CTL, 43.28 cm (17.04 in)
44	AT324273	1	Ground Cable	Fastener
45	T251567	1	Clamp	SUB FOR L154742
46	R524513	3	Hose Clamp	-
47	RE56098	2	Clamp	-
48	-	1	Part 56	MAKE FROM TY22566 CTL, 152.40 cm (60.000 in)
49	14M7397	4	Lock Nut	M6
50	19M7407	2	Cap Screw	M8 X 25
51	T225523	1	Radiator Hose	-
52	T230730	1	Radiator Hose	-
53	RE223627	1	Hose Fitting	-
54	51M7045	1	O-Ring	19.300 X 2.200 mm
55	T230732	1	Radiator Hose	-
56	R191781	6	Hose Clamp	-
57	-	1	Part 65	MAKE FROM T61861 CTL, 70.10 mm (2.760 in)
58	T225322	1	Hose	-
59	N221912	1	Fitting	-
60	AT355452	1	Adapter Fitting	-
61	R29936	3	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
62	AT43223	1	Elbow Fitting	-
63	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
64	H65405	1	Fitting	-
65	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
66	T225865	1	Clamp	-
67	03M7247	2	Bolt	M10 X 90
68	T226132	1	Deflector	-
69	T227450	1	Drain Plug	-
70	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
71	-	1	Part 79	MAKE FROM T61861 CTL, 54.86 cm (21.600 in)
72	-	1	Part 80	MAKE FROM T61861 CTL, 100.58 mm (3.96 in)
73	-	1	Part 81	MAKE FROM T61861 CTL, 182.88 mm (7.200 in)

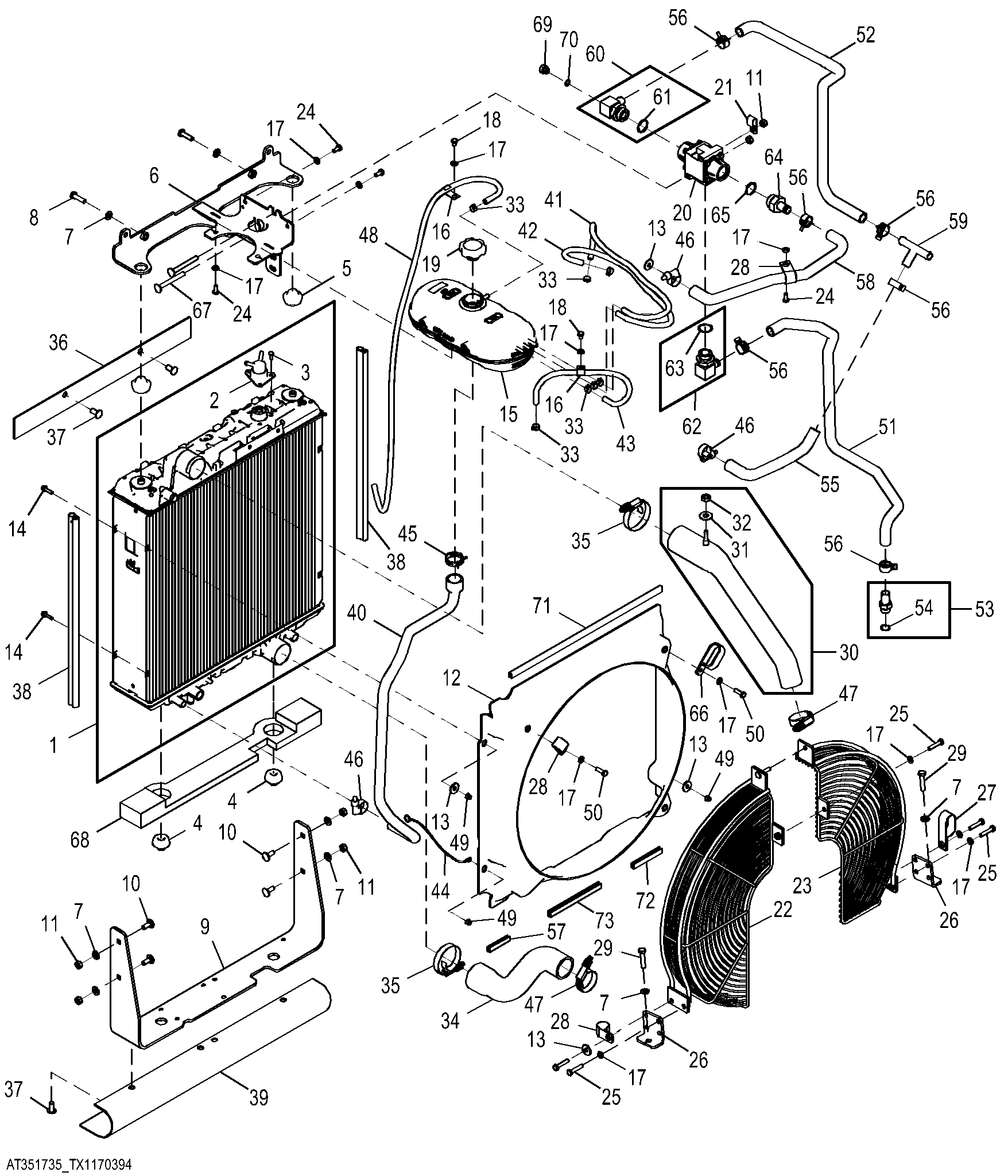

Radiator, Hoses, Fan Shroud, and Guard (Engine 4045DT060, 4045TT094-)
