Открытый узел

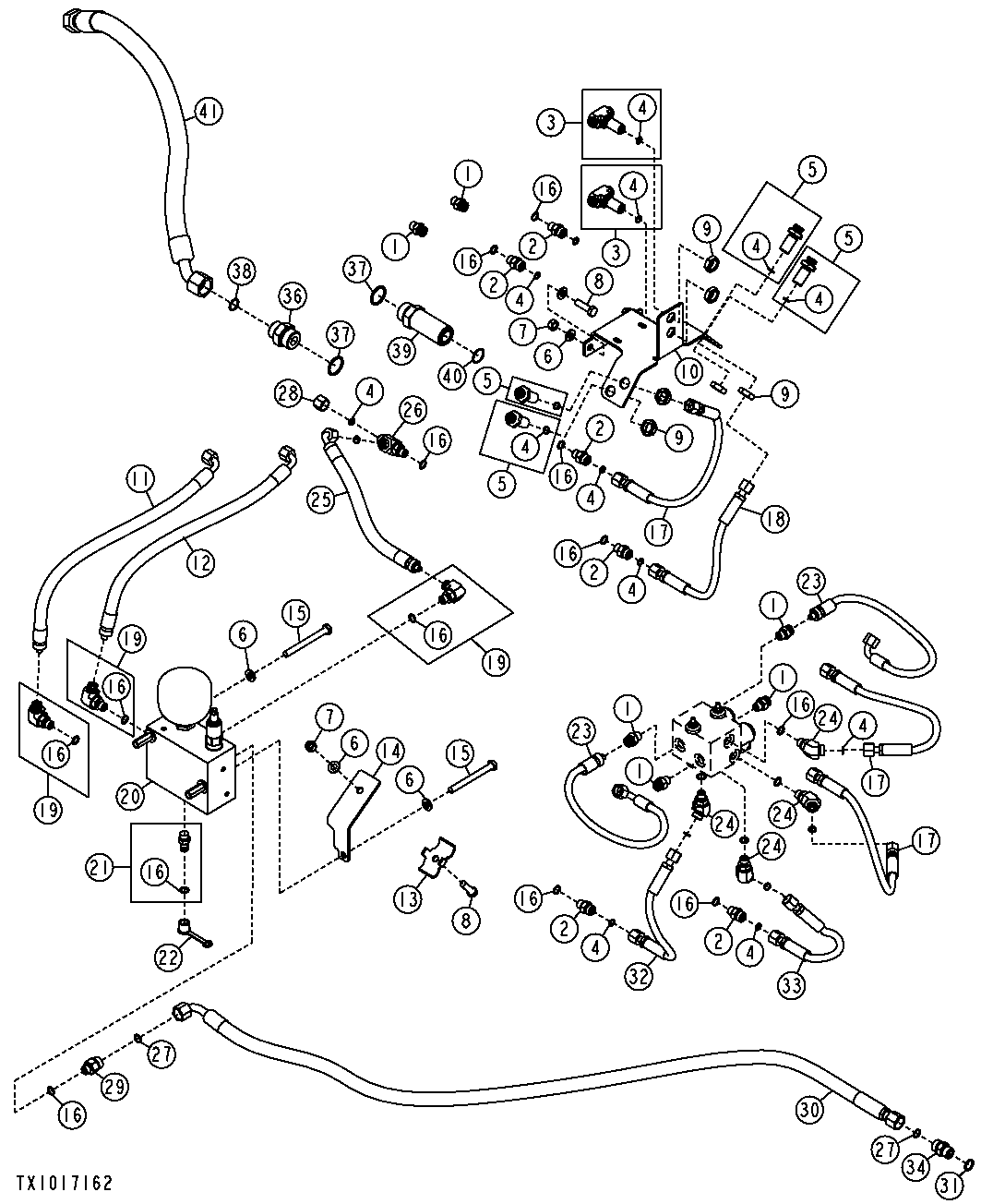

Pilot Control Hydraulics With Selector Valve ( - 191460)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	62H1001	6	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
2	38H1160	6	Adapter Fitting	-
3	AT199496	2	Tee Fitting	-
4	T77613	5	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
5	AT199495	4	Fitting	-
6	24M7239	6	Washer	10.700 X 21 X 2.500 mm
7	14M7274	3	Nut	M10
8	19M7550	3	Cap Screw	M10 X 35
9	T81029	6	Nut	-
10	T190311	1	Bracket	-
11	AT197210	1	Hydraulic Hose	Stc Repair Not Illustrated Fabricate, ALSO ORDER 62H1042 AND T77613
12	AT197211	1	Hydraulic Hose	Stc Repair Not Illustrated Fabricate, ALSO ORDER 62H1042 AND T77613
13	T160548	1	Clamp	-
14	T190993	1	Bracket	-
15	19M8093	2	Cap Screw	M10 X 100
16	R26448	6	O-Ring	-
17	AT197208	3	Hydraulic Hose	Fabricate
18	AT197209	1	Hydraulic Hose	Fabricate
18	AT362146	1	Hydraulic Hose	Fabricate
19	62H1011	2	Adapter Fitting	SUB FOR AT187669; INCLUDES R26448
20	AT306550	1	Flow Control Hyd. Valve	AT197769 NLA
21	AH125760	1	Hyd. Quick-Connect Coupler	-
22	R77175	1	Cover	-
23	AT280200	2	Hydraulic Hose	Stc Repair Not Illustrated, ALSO ORDER 62H1042 AND T77613
24	38H1045	4	Elbow Fitting	-
25	AT317350	1	Hydraulic Hose	Stc Repair Not Illustrated Fabricate, ALSO ORDER 62H1042 AND T77613
26	38H1023	1	Tee Fitting	-
27	T77857	3	O-Ring	-
28	38H1415	1	Fitting	-
29	38H1173	1	Adapter Fitting	-
30	AT300742	1	Hydraulic Hose	Fabricate
31	R26375	2	O-Ring	-
32	AT198417	1	Hydraulic Hose	Fabricate
33	AT198416	1	Hydraulic Hose	Fabricate
34	38H1161	1	Adapter Fitting	-
35	AT193365	1	Seal Kit	-06, Stc Repair Not Illustrated
36	38H1164	1	Adapter Fitting	-
37	R29936	2	O-Ring	-
38	T76938	1	O-Ring	-
39	38H1216	1	Adapter Fitting	-
40	T76938	1	O-Ring	-
41	AT343940	1	Hydraulic Hose	Fabricate
42	62H1042	1	Adapter Fitting	-06, STC Adapter Not Illustrated
43	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated

Pilot Control Hydraulics With Selector Valve ( - 191460)

Нет текстового описания
