Открытый узел

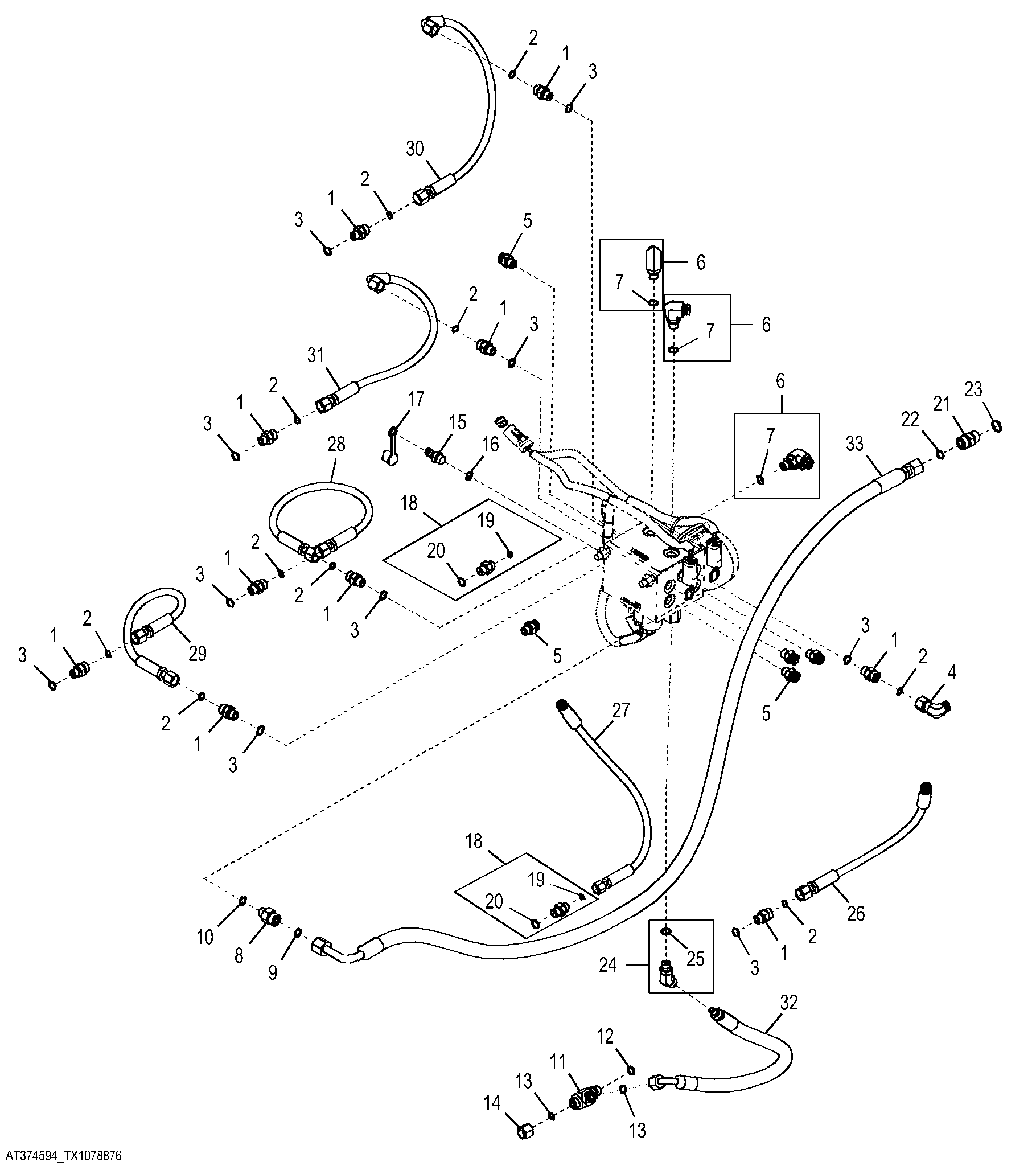

Pilot Control Hydraulics w/ Selector Valve (191461 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1160	1	Adapter Fitting	-
2	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
3	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
4	62H1021	1	Adapter Fitting	SUB FOR AT195201
4	AT193365	1	Seal Kit	-
5	62H1001	5	Adapter Fitting	SUB FOR AT187666; INCLUDES R26448
5	AT193365	1	Seal Kit	-
6	62H1011	3	Adapter Fitting	SUB FOR AT187669; INCLUDES R26448
7	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
8	38H1173	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
11	38H1023	1	Tee Fitting	-
12	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
13	T77613	2	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
14	38H1415	1	Fitting	-
15	AH125760	1	Hyd. Quick-Connect Coupler	-
16	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
17	R77175	1	Cover	-
18	AT362129	2	Union Fitting	-
19	T77814	1	O-Ring	7.645 X 1.778 mm (0.301" X 0.070")
20	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
21	38H1161	1	Adapter Fitting	-
22	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
23	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
24	62H1053	1	Adapter Fitting	-
25	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
26	AT369671	1	Hydraulic Hose	17.4752" X 508 mm (20") X 1/4", Fabricate, ALSO ORDER 61H1042 AND T77613
27	AT371352	1	Hydraulic Hose	9/16" X 508 mm (20") X 3/8", ALSO ORDER 61H1042 AND T77613
28	AT369715	1	Hydraulic Hose	17.4752" X 501 mm (19-3/4") X 17.4752", Fabricate, ALSO ORDER 61H1042 AND T77613
29	AT369715	1	Hydraulic Hose	17.4752" X 501 mm (19-3/4") X 17.4752", Fabricate, ALSO ORDER 61H1042 AND T77613
30	AT369717	1	Hydraulic Hose	17.4752" X 457 mm (18") X 17.4752", Fabricate
31	AT369717	1	Hydraulic Hose	17.4752" X 457 mm (18") X 17.4752", Fabricate
32	AT384190	1	Hydraulic Hose	17.4752" X 533 mm (21") X 17.4752", Fabricate, ALSO ORDER 61H1042 AND T77613
33	AT371354	1	Hydraulic Hose	13/16" X 1778 mm (70") X 13/16", Fabricate

Pilot Control Hydraulics w/ Selector Valve (191461 - )

Нет текстового описания
