Multipurpose Coupler Bucket, 1.0 m³

Нет текстового описания

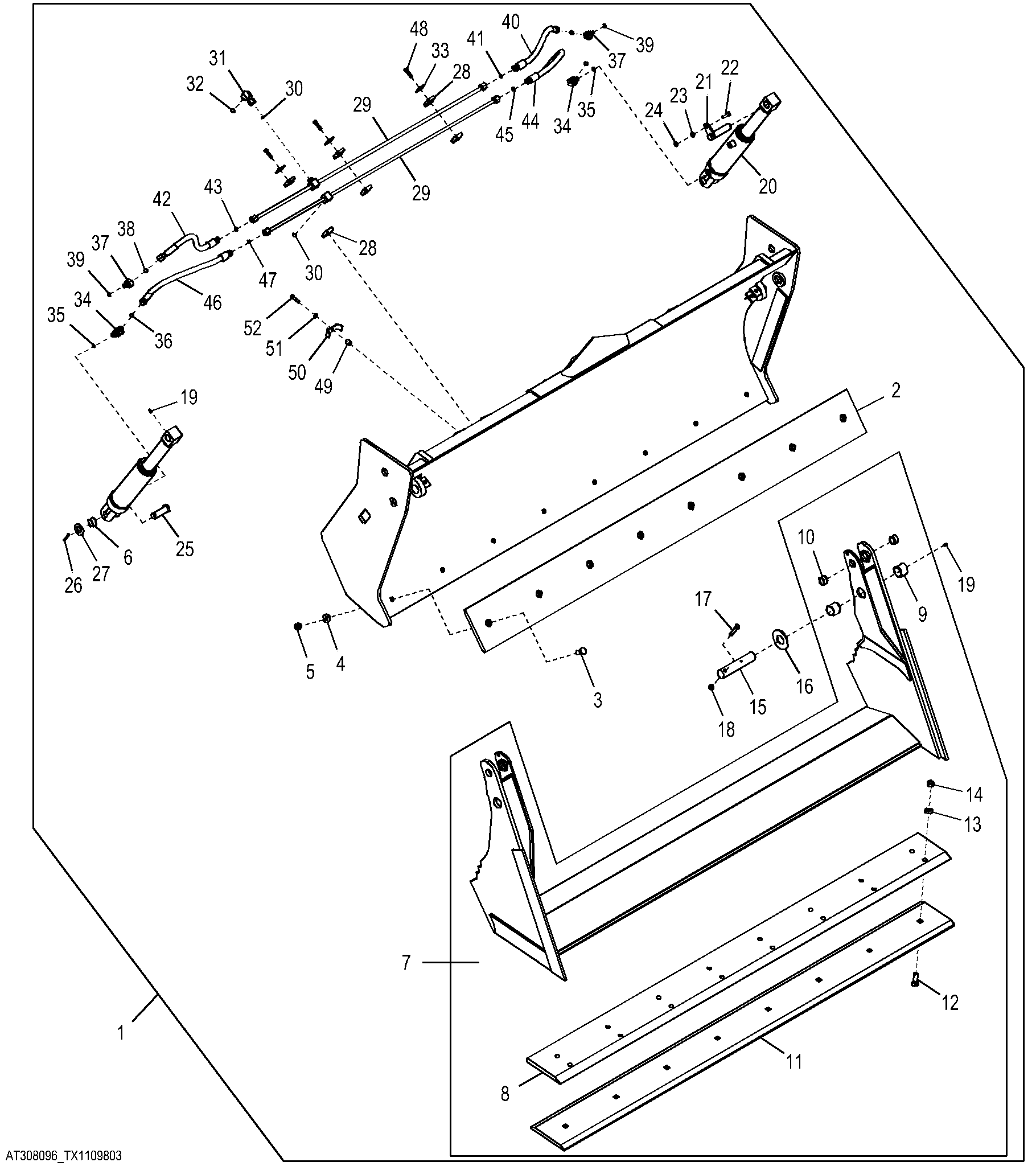

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT308193	1	Backhoe Bucket	Components On Separate Page, NLA; ORDER AT448178
2	T143802	1	Cutting Edge	229.23 cm (90.248 in.)
3	09H1776	8	Bolt	5/8" X 1-3/4"
4	24M7241	8	Washer	17 X 34 X 4 mm
5	14H1039	8	Nut	5/8"
6	T166433	1	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
7	AT186437	1	Hinge	-
8	T128538	1	Cutting Edge	234.95 cm (92.500 in.)
9	T128533	4	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
10	T166433	4	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
11	T84194	1	Cutting Edge	234.64 cm (92.378 in.)
12	09H1759	8	Bolt	5/8" X 2-1/4"
13	24M7241	8	Washer	17 X 34 X 4 mm
14	14H1039	8	Nut	5/8"
15	T167059	2	Pin	-
16	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
17	19H2106	2	Cap Screw	7/16" X 2-3/4"
18	K40006	2	Lock Nut	-
19	JD7844	4	Lubrication Fitting	-
20	AH210737	2	Hydraulic Cylinder	Components On Separate Page
21	AT190900	2	Pin	-
22	19H1732	2	Cap Screw	3/8" X 1-1/4"
23	24M7239	2	Washer	10.700 X 21 X 2.500 mm
24	T54568	2	Lock Nut	-
25	T191318	2	Pin Fastener	25.370 X 78.250 mm (0.999" X 3.081")
26	11H218	2	Cotter Pin	3/16" X 1-1/2"
27	24H1138	2	Washer	1-1/16" X 2" X 0.134"
28	H135156	6	Clamp	-
29	AT189819	2	Line	NLA, ORDER AT448019
29	AT448019	2	Line	SUB FOR AT189819
30	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	38H1095	1	Elbow Fitting	-
32	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
33	H121168	3	Plate	-
34	38H1314	2	Elbow Fitting	-
35	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
36	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
37	38H1521	2	Elbow Fitting	-
38	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
39	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
40	AT189822	1	Hydraulic Hose	Fabricate
41	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
42	AT189822	1	Hydraulic Hose	Fabricate
43	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
44	AT190701	1	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
45	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
46	AT190701	1	Hydraulic Hose	13/16" X 520 mm (20-1/2") X 13/16", Fabricate
47	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
48	19H3552	3	Cap Screw	5/16" X 1-1/2"
49	28H1697	1	Spacer	0.493" X 0.675" X 3/4"
50	T27022	1	Clamp	-
51	24M7106	1	Washer	10 X 18 X 2.500 mm
52	19H2633	1	Cap Screw	3/8" X 1-1/2"
53	R44302	1	Tie Band	Not Illustrated
54	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
55	AT172386	2	Hydraulic Hose	13/16" X 1169 mm (46") X 1", Not Illustrated
56	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070"), Not Illustrated
