Большое обновление пильных узлов

Смотреть

Открытый узел

Multipurpose Bucket Kit, 2.18 m (86 in.)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

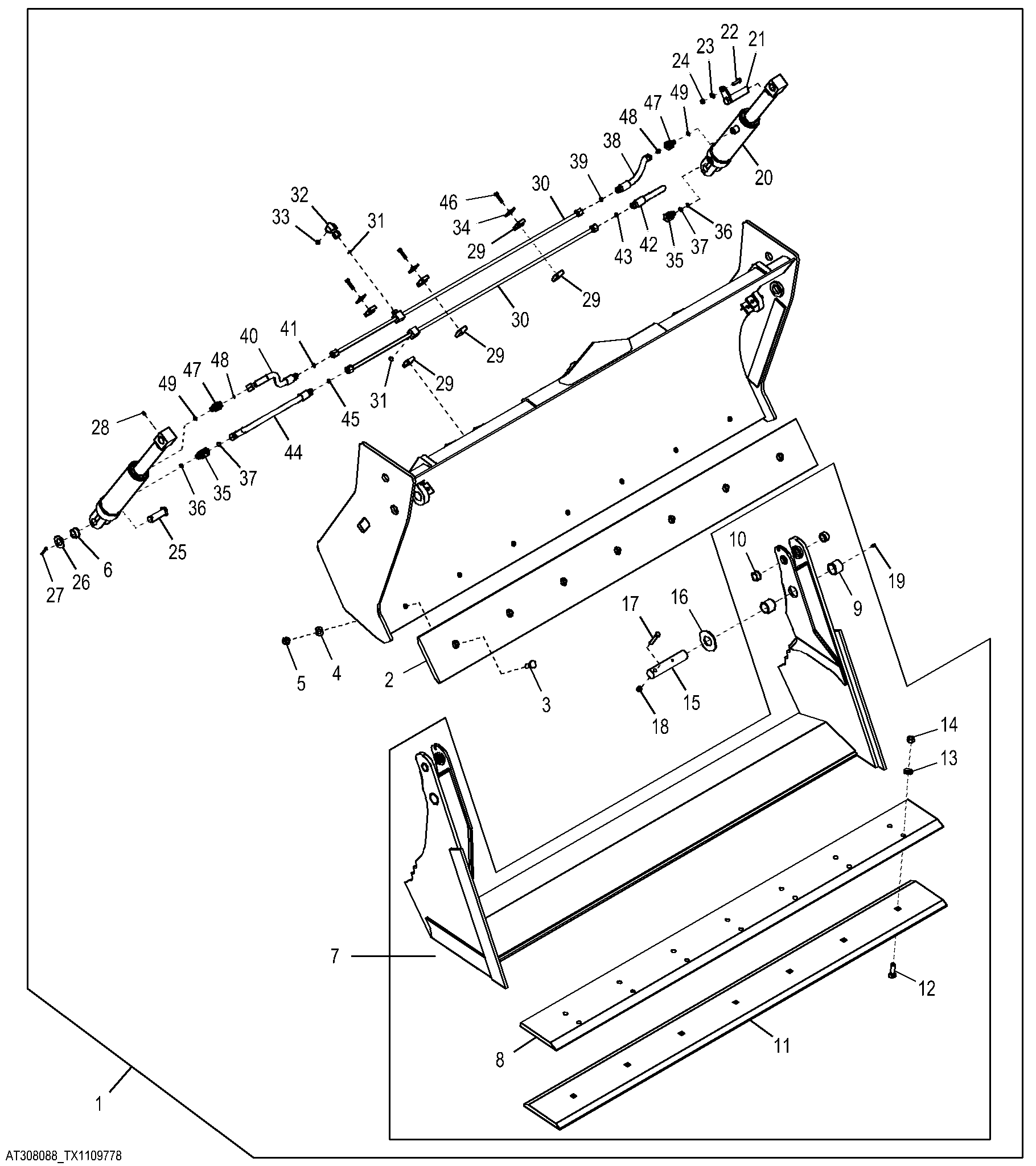

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT308191	1	Multi-Purpose Bucket	Components On Separate Page, NLA; ORDER AT448175
2	T166454	1	Cutting Edge	213.00 cm (83.858 in.)
3	09H1776	7	Bolt	5/8" X 1-3/4"
4	24M7241	7	Washer	17 X 34 X 4 mm
5	14H1039	7	Nut	5/8"
6	T166433	1	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
7	AT186411	1	Hinge	-
8	T166455	1	Cutting Edge	218.40 cm (85.984 in.)
9	T128533	4	Bushing	38.800 X 47.680 X 38.100 mm (1.528" X 1.877" X 1-1/2")
10	T166433	4	Bushing	25.880 X 35.080 X 19.100 mm (1.019" X 1.381" X 0.752")
11	T150517	1	Cutting Edge	218.40 cm (85.984 in.)
12	09H1759	7	Bolt	5/8" X 2-1/4"
13	24M7241	7	Washer	17 X 34 X 4 mm
14	14H1039	7	Nut	5/8"
15	T167059	2	Pin	-
16	24H1554	2	Washer	1-5/8" X 3-1/2" X 0.180"
17	19H2106	2	Cap Screw	7/16" X 2-3/4"
18	K40006	2	Lock Nut	-
19	JD7844	2	Lubrication Fitting	SUB FOR JD7797
20	AH210737	2	Hydraulic Cylinder	Components On Separate Page
21	AT190900	2	Pin	-
22	19H1732	2	Cap Screw	3/8" X 1-1/4"
23	24M7239	2	Washer	10.700 X 21 X 2.500 mm
24	T54568	2	Lock Nut	-
25	T191318	2	Pin Fastener	25.370 X 78.250 mm (0.999" X 3.081")
26	24H1138	2	Washer	1-1/16" X 2" X 0.134"
27	11H218	2	Cotter Pin	3/16" X 1-1/2"
28	JD7844	2	Lubrication Fitting	-
29	H135156	6	Clamp	-
30	AT189819	2	Line	NLA, ORDER AT448019
30	AT448019	2	Line	SUB FOR AT189819
31	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
32	38H1095	1	Elbow Fitting	-
33	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
34	H121168	3	Plate	-
35	38H1314	2	Elbow Fitting	-
36	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
37	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
38	AT190628	1	Hydraulic Hose	13/16" X 241 mm (9-1/2") X 13/16", Fabricate
39	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	AT190628	1	Hydraulic Hose	13/16" X 241 mm (9-1/2") X 13/16", Fabricate
41	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
42	AT190702	1	Hydraulic Hose	13/16" X 438 mm (17-1/4") X 13/16", Fabricate
43	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
44	AT190702	1	Hydraulic Hose	13/16" X 438 mm (17-1/4") X 13/16", Fabricate
45	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
46	19H3552	3	Cap Screw	5/16" X 1-1/2"
47	38H1521	2	Elbow Fitting	-
48	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
49	R26448	2	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
50	19H1800	1	Cap Screw	3/8" X 1-1/2", Not Illustrated
51	24H1304	1	WASHER	13/32" X 23/32" X 0.120", Not Illustrated
52	28H3383	1	Bushing	0.493" X 0.675" X 3/4", Not Illustrated
53	R44302	1	Tie Band	Not Illustrated
54	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
55	AT172386	2	Hydraulic Hose	13/16" X 1169 mm (46") X 1", Not Illustrated
56	T77932	1	O-Ring	15.596 X 1.778 mm (0.614" X 0.070"), Not Illustrated
57	T27022	1	Clamp	Not Illustrated

Multipurpose Bucket Kit, 2.18 m (86 in.)
