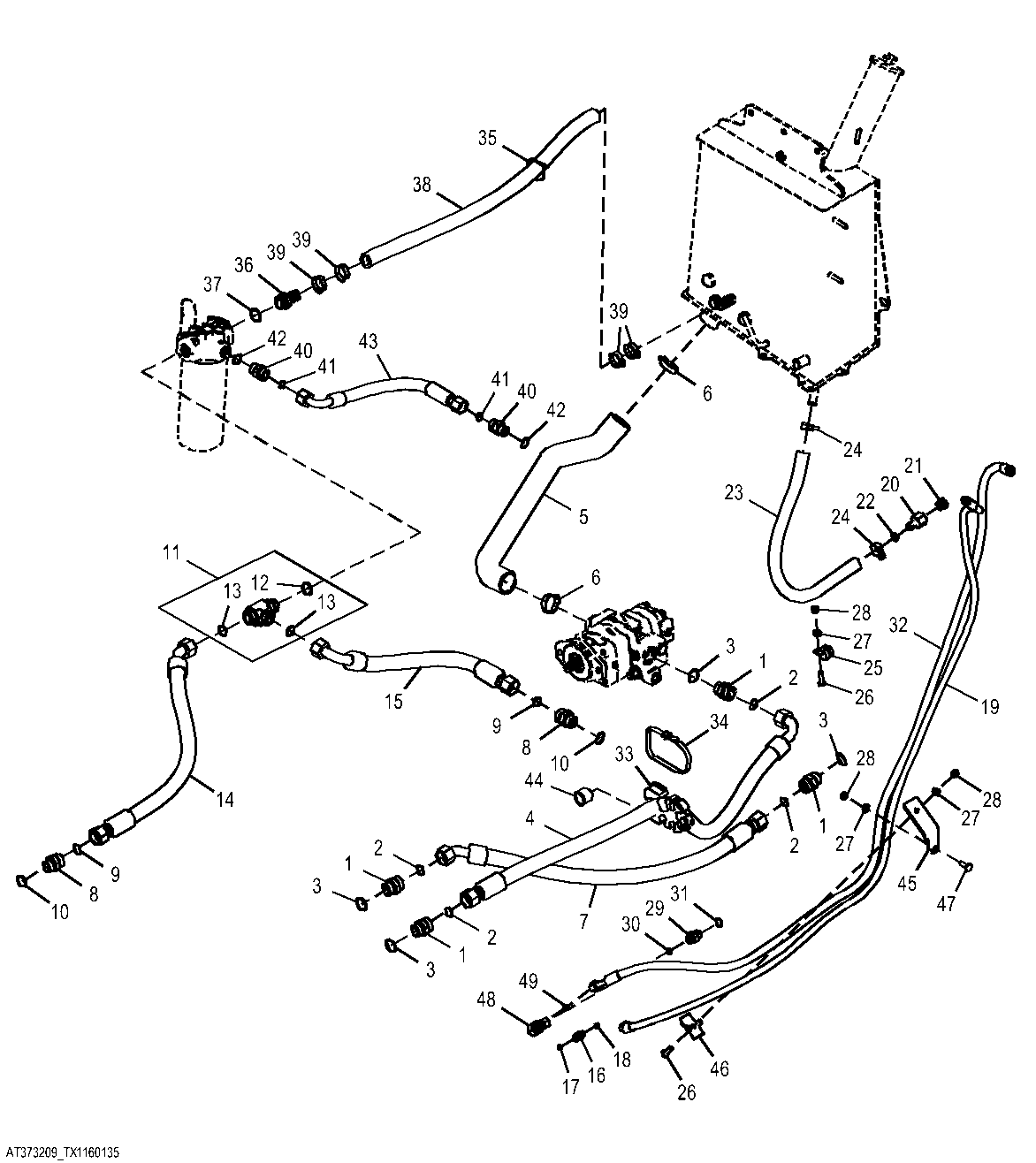

Main Hydraulic System (173952 - 178748)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	38H1164	4	Adapter Fitting	-
2	T76938	4	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
3	R29936	4	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
4	AT357648	1	Hydraulic Hose	Fabricate
5	AT323728	1	Suction Hose	-
6	AT308555	2	Hose Clamp	-
7	AT373491	1	Hydraulic Hose	Fabricate
8	38H1346	2	Adapter Fitting	-
9	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
10	U17409	2	O-Ring	26.594 X 2.946 mm (1-3/64" X 0.116")
11	AT359124	1	Tee Fitting	-
12	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
13	T76938	2	O-Ring	23.520 X 1.778 mm (0.926" X 0.070")
14	AT300759	1	Hydraulic Hose	Fabricate
15	AT359220	1	Hydraulic Hose	Fabricate
16	38H1160	1	Adapter Fitting	-
17	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
19	AT184951	1	Hydraulic Hose	Steering Load Sense without Loader Coupler Fabricate, ALSO ORDER 62H1042 AND T77613
19	62H1042	1	Adapter Fitting	Not Illustrated
19	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070"), Not Illustrated
20	T190892	1	Hose Fitting	-
21	R27474	1	Drain Plug	-
22	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
23	-	1	Part 25	MAKE FROM T78497, CTL 67.06 cm (26.400 in)
24	T185826	2	Clamp	-
25	T102934	1	Clamp	-
26	19M7550	2	Cap Screw	M10 X 35
27	24M7239	3	Washer	10.700 X 21 X 2.500 mm
28	14M7274	3	Nut	M10
29	38H1174	1	Adapter Fitting	-
30	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
31	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
32	AT184952	1	Hydraulic Hose	Steering Supply without Loader Coupler Fabricate, ALSO ORDER 62H1043 AND T77857
32	62H1043	1	Adapter Fitting	Not Illustrated
32	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), Not Illustrated
33	T190669	1	Hose Clamp	-
34	N189220	1	Tie Band	-
35	H77698	1	Tie Band	-
36	T246610	1	Fitting	-
37	R29936	1	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
38	-	1	Part 42	MAKE FROM TY22556, CTL 76.20 cm (30.000 in)
39	AT300153	4	Hose Clamp	-
40	38H1163	2	Adapter Fitting	-
41	T77858	2	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
42	U12547	2	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
43	AT360820	1	Hydraulic Hose	Fabricate
44	T186026	1	Spacer	-
45	T190993	1	Bracket	-
46	T160548	1	Clamp	-
47	03M7192	1	Bolt	M10 X 30
48	38H1095	1	Elbow Fitting	-
49	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
