Открытый узел

Loader Plumbing, 3-Function Right Side (204988 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	KV22609	1	Clamp	-
2	AT197645	1	Hydraulic Hose	13/16" X 2110 mm (83") X 13/16", Loader Boom Rod Right Side Fabricate
3	AT197646	1	Hydraulic Hose	13/16" X 1755 mm (69") X 13/16", Loader Head End Right Side Fabricate
4	AT198254	1	Hydraulic Hose	17.3025" X 1834 mm (72-1/4") X 1", Auxiliary Fabricate
5	T77932	1	O-Ring	-
6	AT198258	1	Hydraulic Hose	13/16" X 1866 mm (73-1/2") X 1", Loader Bucket Head End Fabricate
7	T77932	1	O-Ring	-
8	AT198260	1	Hydraulic Hose	13/16" X 1821 mm (71-3/4") X 1", Auxiliary Fabricate
9	T77932	1	O-Ring	-
10	R46919	6	Half Clamp	-
11	28H3381	4	Spacer	0.493" X 0.675" X 5/8"
12	19M7550	2	Cap Screw	M10 X 35
13	14M7274	4	Nut	M10
14	T105773	2	Guide	-
15	AR21842	1	Clamp	-
16	38H1161	4	Adapter Fitting	-
17	T77857	4	O-Ring	-
18	R26375	4	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
19	T165864	1	Angle	-
20	24M7239	8	Washer	10.700 X 21 X 2.500 mm
21	24M7296	2	Washer	10.500 X 30 X 2.500 mm
22	19M8637	1	Cap Screw	M10 X 40
23	T159952	2	Clamp	-
24	T159954	2	Clamp	-
25	19M7875	2	Cap Screw	M10 X 70
26	-	1	Part 26	MAKE FROM T78606, CTL 25.40 cm (10.000 in)
27	-	1	Part 27	MAKE FROM T78606, CTL 25.40 cm (10.000 in)
28	-	1	Part 28	MAKE FROM T78606, CTL 25.40 cm (10.000 in)
29	T206908	1	Shield	-
30	-	1	Part 30	MAKE FROM T61861, CTL 18.79 cm (7.320 in)
31	38H1012	1	Elbow Fitting	-
32	T77857	1	O-Ring	-
33	R26906	1	O-Ring	-
34	AT301476	1	Hydraulic Hose	Loader Bucket Rod End Fabricate
35	T77857	1	O-Ring	-
36	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
37	19M8081	1	Cap Screw	M10 X 80
38	38H1171	2	Adapter Fitting	-
39	T77613	2	O-Ring	-
40	T77613	1	O-Ring	-
41	R26375	2	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
42	AT173120	1	Hydraulic Hose	Loader Bucket Rod End Fabricate
43	T77857	1	O-Ring	-
44	38H1172	1	Adapter Fitting	-
45	T77613	1	O-Ring	-
46	R26906	1	O-Ring	-
47	AT321152	1	Oil Line	Loader Bucket Head End
47	38H1134	2	Shoulder Fitting	-
47	38H1355	2	Tube Nut	-
48	38H1355	2	Tube Nut	-
48	38H1134	2	Shoulder Fitting	-
48	AT321156	1	Oil Line	Auxiliary
49	AT324234	1	Oil Line	Loader Bucket Rod End
49	38H1133	2	Shoulder Fitting	-
49	38H1354	2	Tube Nut	-
50	AT321155	1	Oil Line	Auxiliary
50	38H1134	2	Shoulder Fitting	-
50	38H1355	2	Tube Nut	-
51	T217085	2	Clamp	-
52	19M7784	2	Screw	M10 X 20
53	38H1005	1	Elbow Fitting	-
54	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
55	T77857	1	O-Ring	-
56	AT188560	1	Hydraulic Hose	13/16" X 1575 mm (62") X 1", Loader Bucket Head End Fabricate
57	T77932	1	O-Ring	-
58	AU12450	1	Hose Clamp	-
59	R44302	6	Tie Band	-

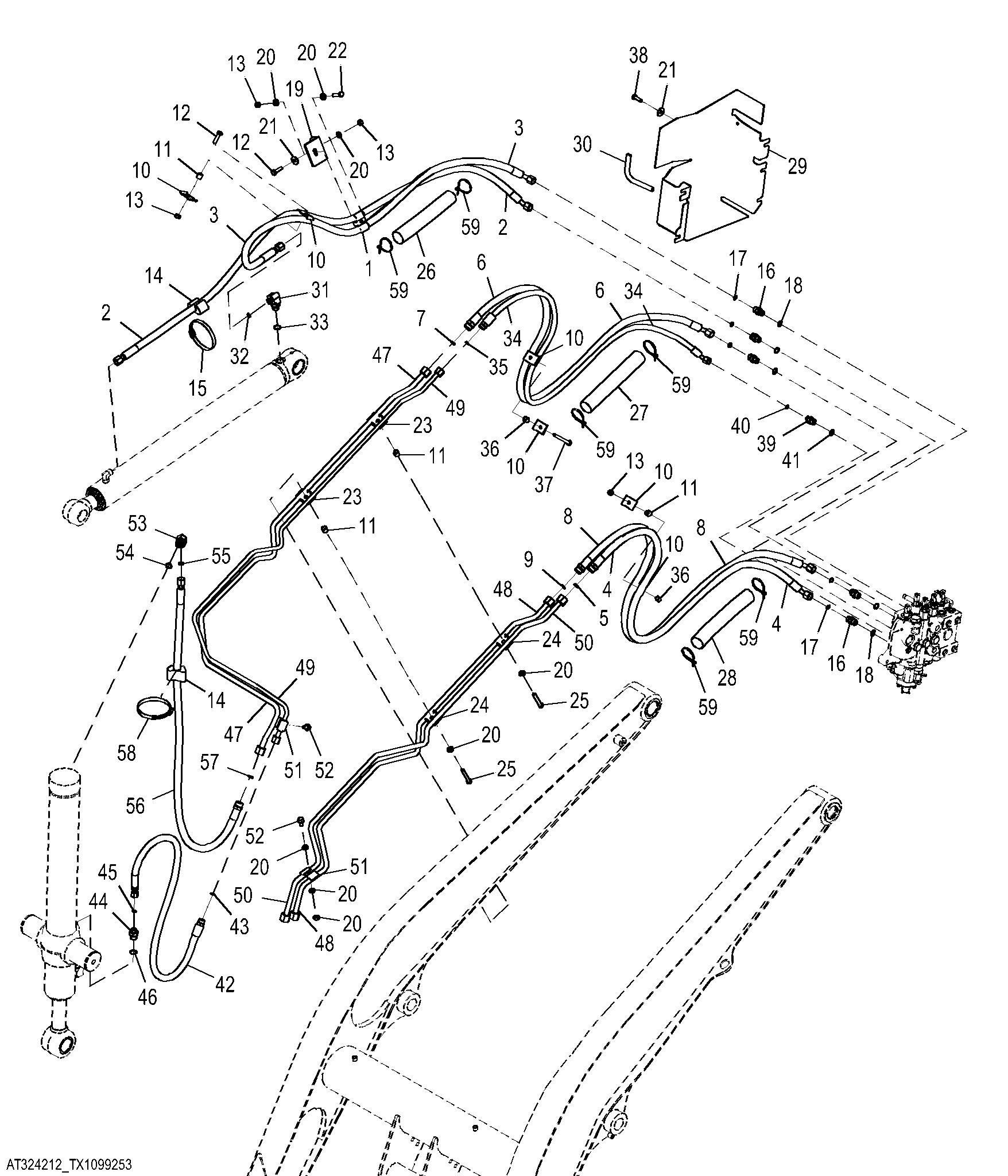

Loader Plumbing, 3-Function Right Side (204988 - )
