Открытый узел

Loader Plumbing, 2-Function Right Side (204988 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT197645	1	Hydraulic Hose	13/16" X 2110 mm (83") X 13/16", Loader Boom Rod Right Side Fabricate
2	KV22609	1	Clamp	-
3	AT197646	1	Hydraulic Hose	13/16" X 1755 mm (69") X 13/16", Loader Head End Right Side Fabricate
4	AT198258	1	Hydraulic Hose	13/16" X 1866 mm (73-1/2") X 1", Loader Bucket Head End Fabricate
5	T77932	1	O-Ring	-
6	AT324234	1	Oil Line	Loader Bucket Rod End
6	38H1133	2	Shoulder Fitting	-
6	38H1354	2	Tube Nut	-
7	AT321152	1	Oil Line	Loader Bucket Head End
7	38H1134	2	Shoulder Fitting	-
7	38H1355	2	Tube Nut	-
8	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
9	R46919	4	Half Clamp	-
10	19M7550	3	Cap Screw	M10 X 35
11	14M7274	4	Nut	M10
12	T105773	2	Guide	-
13	TY22474	3	Clamp	-
14	38H1161	3	Adapter Fitting	-
15	T77857	3	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
16	R26375	3	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
17	T165864	1	Angle	-
18	24M7239	5	Washer	10.700 X 21 X 2.500 mm
19	24M7296	2	Washer	10.500 X 30 X 2.500 mm
20	19M8637	1	Cap Screw	M10 X 40
21	T159952	2	Clamp	-
22	AU12450	1	Hose Clamp	-
23	-	1	Part 27	MAKE FROM T78606 CTL, 254.00 mm (10.000 in)
24	-	1	Part 28	MAKE FROM T78606 CTL, 254.00 mm (10.000 in)
25	T206908	1	Shield	-
26	-	1	Part 30	MAKE FROM T61861, CTL 18.59 cm (7.320 in)
27	38H1012	1	Elbow Fitting	-
28	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
29	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
30	19M7662	1	Cap Screw	M10 X 30
31	19M7658	2	Cap Screw	M10 X 50
32	28H3394	1	Bushing	0.493" X 0.675" X 1/2"
33	AT301476	1	Hydraulic Hose	17.4752" X 1892 mm (74-1/2") X 13/16", Loader Bucket Rod End Fabricate
34	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
35	38H1171	1	Adapter Fitting	-
36	T77613	1	O-Ring	-
37	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
38	AT173120	1	Hydraulic Hose	17.4752" X 1226 mm (48-1/4") X 13/16", Loader Bucket Rod End Fabricate
39	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	38H1172	1	Adapter Fitting	-
41	T77613	1	O-Ring	-
42	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
43	AT188560	1	Hydraulic Hose	13/16" X 1575 mm (62") X 1", Loader Bucket Head End Fabricate
44	T77932	1	O-Ring	-
45	38H1005	1	Elbow Fitting	-
46	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
47	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
48	T217085	1	Clamp	-
49	19M7784	1	Screw	M10 X 20
50	R44302	4	Tie Band	-

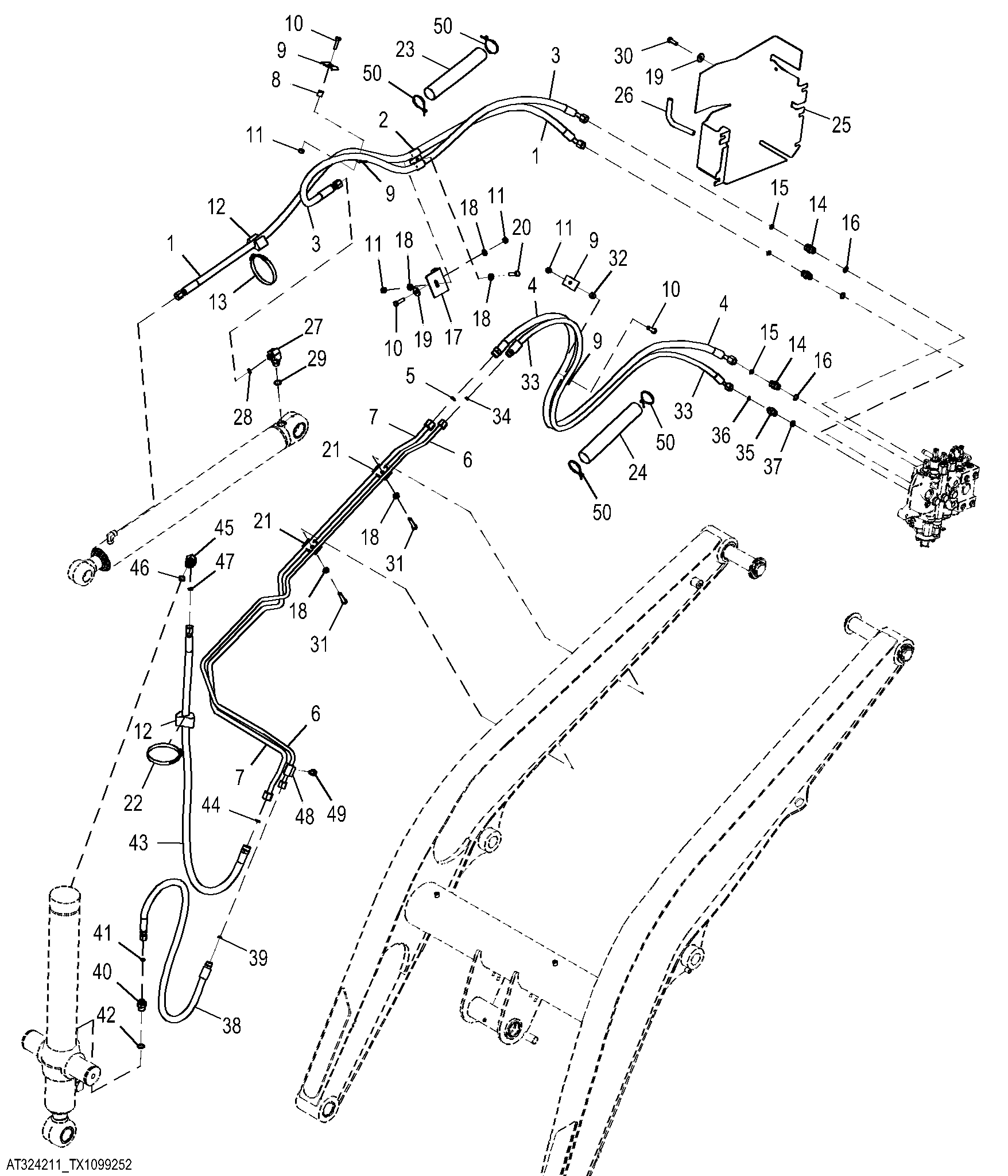

Loader Plumbing, 2-Function Right Side (204988 - )
