Loader Bucket Cylinder and Third Function Hydraulics ( - 204987)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7274	1	Nut	M10
2	19M7875	2	Cap Screw	M10 X 70
3	19M7938	2	Cap Screw	M10 X 20
4	19M8081	1	Cap Screw	M10 X 80
5	24M7239	1	Washer	10.700 X 21 X 2.500 mm
6	28H3381	5	Spacer	0.493" X 0.675" X 5/8"
7	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
8	38H1005	1	Elbow Fitting	-
9	R26375	3	O-Ring	-
10	T77857	6	O-Ring	-
11	38H1148	1	Fitting Plug	-
12	T77932	5	O-Ring	-
13	38H1161	1	Adapter Fitting	-
14	38H1171	1	Adapter Fitting	-
15	T77613	1	O-Ring	-
16	38H1172	1	Adapter Fitting	-
17	T217085	1	Clamp	-
18	AT173120	1	Hydraulic Hose	-
19	AT188560	1	Hydraulic Hose	Fabricate
20	AT198254	1	Hydraulic Hose	-
21	AT198258	1	Hydraulic Hose	-
22	T159952	1	Clamp	-
23	AT198260	1	Hydraulic Hose	Fabricate
24	AT301476	1	Hydraulic Hose	-
25	T159954	1	Clamp	-
26	AT321152	1	Oil Line	-
28	AT321155	1	Oil Line	-
29	AT321156	1	Oil Line	-
30	AT324234	1	Oil Line	-
32	AU12450	1	Hose Clamp	-
33	R46919	1	Half Clamp	-
34	T105773	1	Guide	-
35	-	3	Part 33	MAKE FROM T78606 CTL, 254 mm (10 in.)
36	AT330850	1	Field Installation Kit	Whole Goods Includes, Controller, Valve, Linkage, and Hydraulic Hoses Three Function
37	19M7784	1	Screw	M10 X 20
44	R26906	1	O-Ring	-

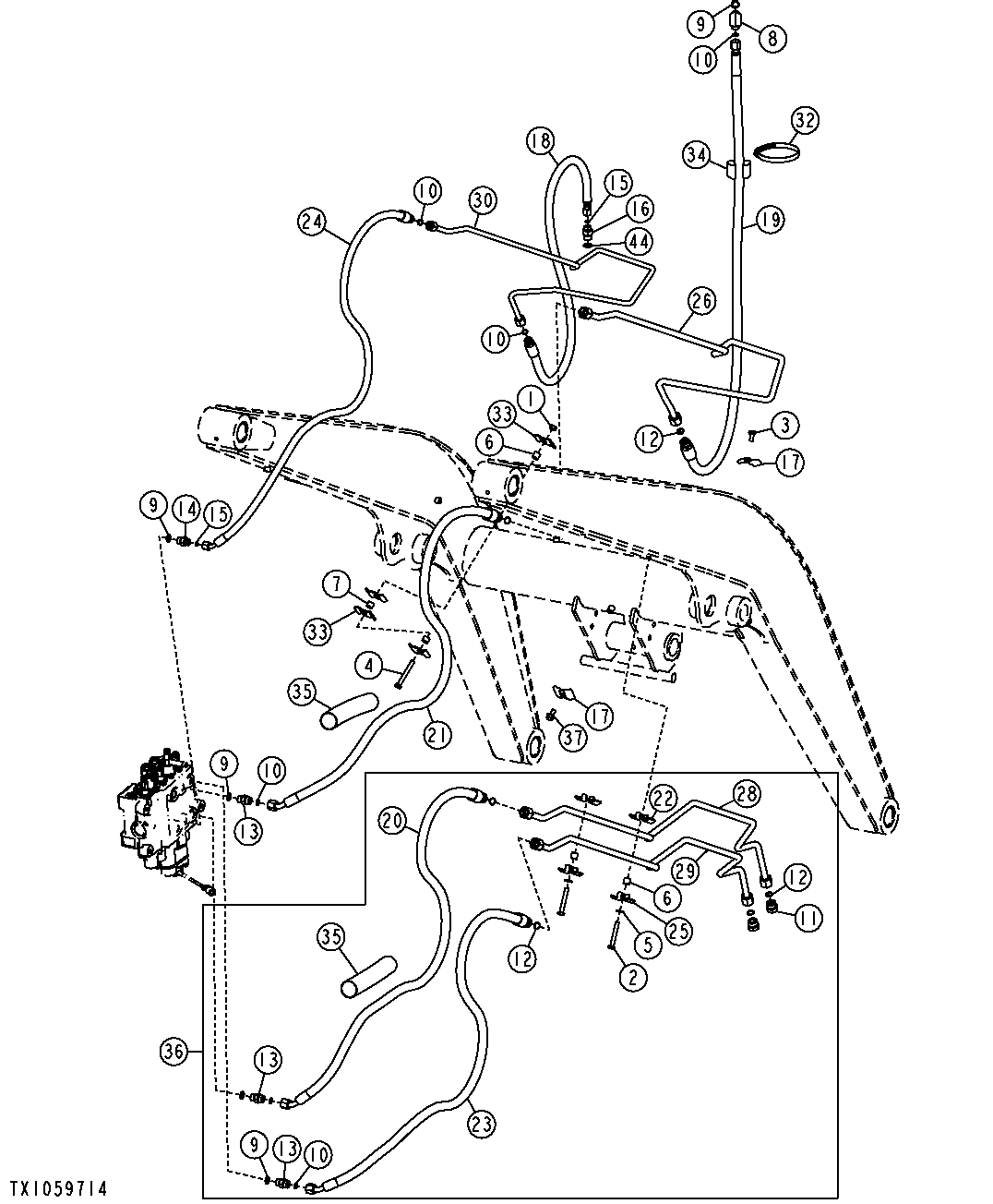

Loader Bucket Cylinder and Third Function Hydraulics ( - 204987)
