Hydraulic Oil Cooler and Hoses (Engine 4045DT060, 4045TT094-)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT369010	1	Plate	SUB FOR AT349278
2	RE201108	1	Oil Cooler	Transmission Cooler
3	AT349656	1	Oil Cooler	Hydraulic Oil Cooler
3	AT318085	1	Oil Cooler	Hydraulic Oil Cooler
4	19M7785	6	Screw	M10 X 25
5	19M7867	3	Screw	M8 X 25
6	R191781	4	Hose Clamp	SUB FOR T185826
7	T254529	1	Elbow Fitting	-
8	51M7043	1	O-Ring	15.300 X 2.200 mm
9	R225971	2	Clamp	-
10	R117721	2	Clamp	-
11	T288228	1	Elbow Fitting	-
12	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
13	AT330459	1	Tube	-
14	AT334340	1	Tube	-
15	AT193927	1	Hose Fitting	-
16	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
17	-	1	Part 18	MAKE FROM T78497 CTL, 115.82 cm (45.600 in)
18	-	1	Part 19	MAKE FROM XPS-B-35 CTL, 55.88 cm (22.000 in)
19	R44302	2	Tie Band	-
20	-	1	Part 21	TY22556 CTL, 37.80 cm (14.88 in)
21	AT193927	1	Hose Fitting	SUB FOR AT118619
22	AT454047	2	Elbow Fitting	-
23	R26906	2	O-Ring	-
24	AT301917	4	Hose Clamp	-
25	AT300153	2	Hose Clamp	-
26	T162675	2	Clamp	-
27	28H3394	2	Bushing	0.493" X 0.675" X 1/2"
28	R46919	2	Half Clamp	-
29	19M8600	2	Cap Screw	M10 X 50
30	T223564	1	Hose	-
31	-	1	Part 32	MAKE FROM TY22330 CTL, 27.13 cm (10.680 in)
32	-	1	Part 33	MAKE FROM TY22330 CTL, 40.54 cm (15.960 in)
33	T223708	1	Hose	-
33	T240404	1	Hose	-
34	T52978	1	Clamp	-
35	-	1	Part 37	MAKE FROM T78497 CTL, 137.16 cm (54.000 in)
36	AT330491	1	Hose	-
36	T240410	1	Hose	-

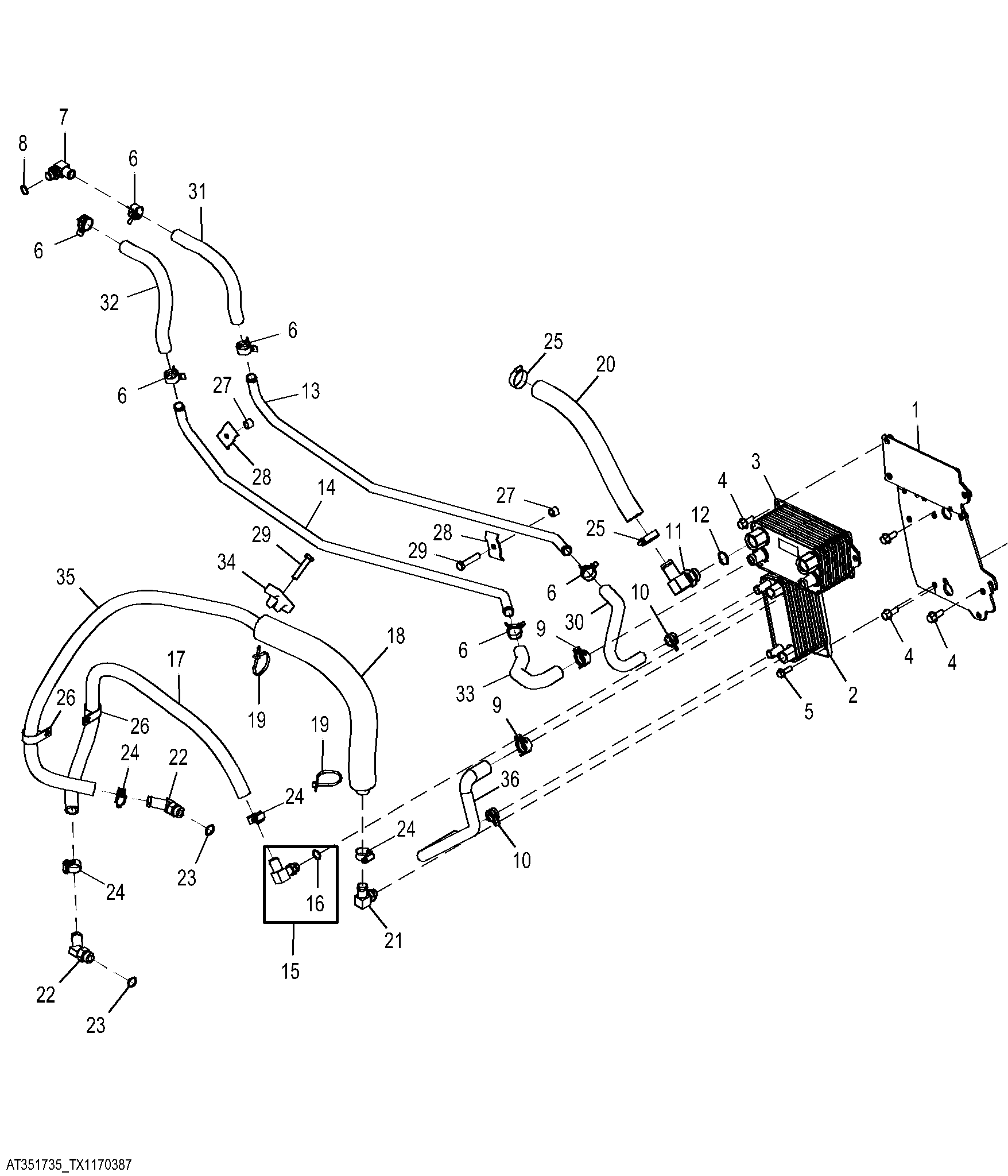

Hydraulic Oil Cooler and Hoses (Engine 4045DT060, 4045TT094-)
